SpinLiteĀ® Full Side Washer
1MANUL961 Belanger, Inc. * PO BOX 5470 * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 76
Maintenance
Motor Gearbox and Torque Plate Replacement
Install New Motor Gearbox & Torque Plate Assembly

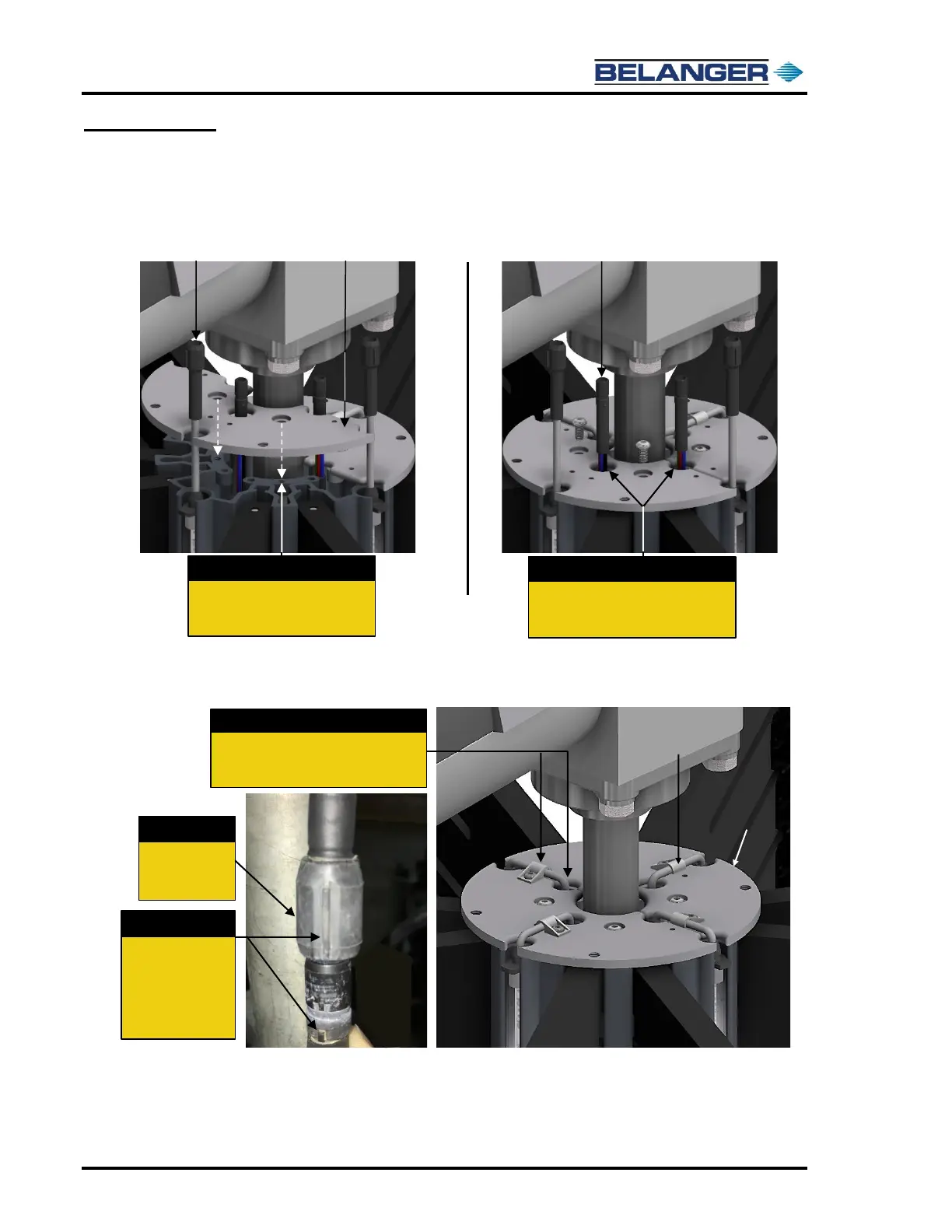

16) Reattach the Hub Plates to the top of the Hub Assembly; align the countersunk holes (two
holes per plate) with the center holes on the Skin Weldments, see image below on left.
17) Thread the LED Plugs from the Wire Harness through the holes in the Hub Plates and attach
the Hub Plates to the Hub Assembly, refer to the image above on right.
18) Apply dielectric grease to the receptors of the LED Lights.
19) Align the indicators on the LED Lights and Wire Harness Plugs and press them together gently
in order to not bend the pins, shown above on the right.
20) Wrap the LED connections with electrical tape to protect them from the car wash elements.
21) Tuck the LED connections into the holes in the Hub Plates then secure the LED Wires to the
top of the Hub Plates by using the Retainer Clips, refer to the image above on the left.
Route LED Plugs from Wire Harness
through large holes in Hub Plates then
attach Plates to Hub Skins.
Tuck the LED Connections into the Hub
Plates and secure the LED Wires to the
Hub Plates with the Retainer Clips.
