Maintenance
Motor Gearbox and Torque Plate Replacement
Install New Motor Gearbox & Torque Plate Assembly

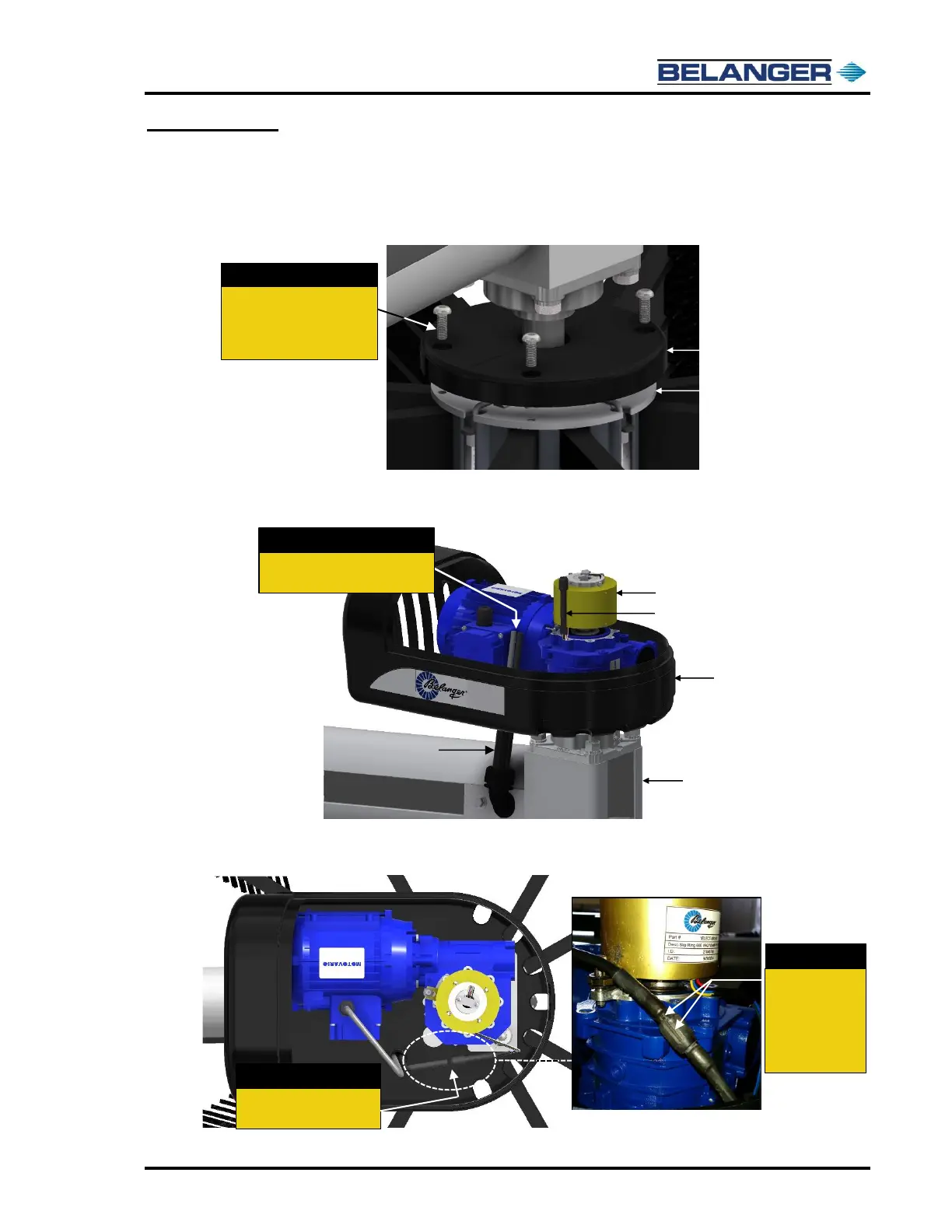

22) Place the Hub Covers over the Hub Plates. Apply Anti-Seize™ to the Hub Cover fasteners
and secure the Hub Covers to the Hub Plates as shown in the image below.
23) Route the Motor/Gearbox Power Cable and the 24VDC LED Power Cable from the Arm
Assembly up into the Motor Cover.
24) Apply dielectric grease to the Slip Ring Receptor. Align the tabs on the LED Cable Plug with
the Slip Ring Receptor and press the connectors together gently.
25) Wrap the wire connection with electrical tape and tuck inside the Motor Cover.
Step 24a:
Apply dielectric grease to
the Slip Ring Receptor.
Step 22:
Apply Anti-Seize™ to Hub
Cover Fasteners then align
and secure Hub Covers to
Hub Plates.
Hub Covers
Hub Plates
Align tabs on the
connectors and
press together
gently. Wrap
connection with
electrical tape.
Step 24b & 25:
Motor Cover Base
Arm Assembly
Slip Ring
Conduit
Length: 5.125”
Slip Ring Receptor
Route the LED & Motor Power
Cables up into the Motor Cover.
Step 23:
