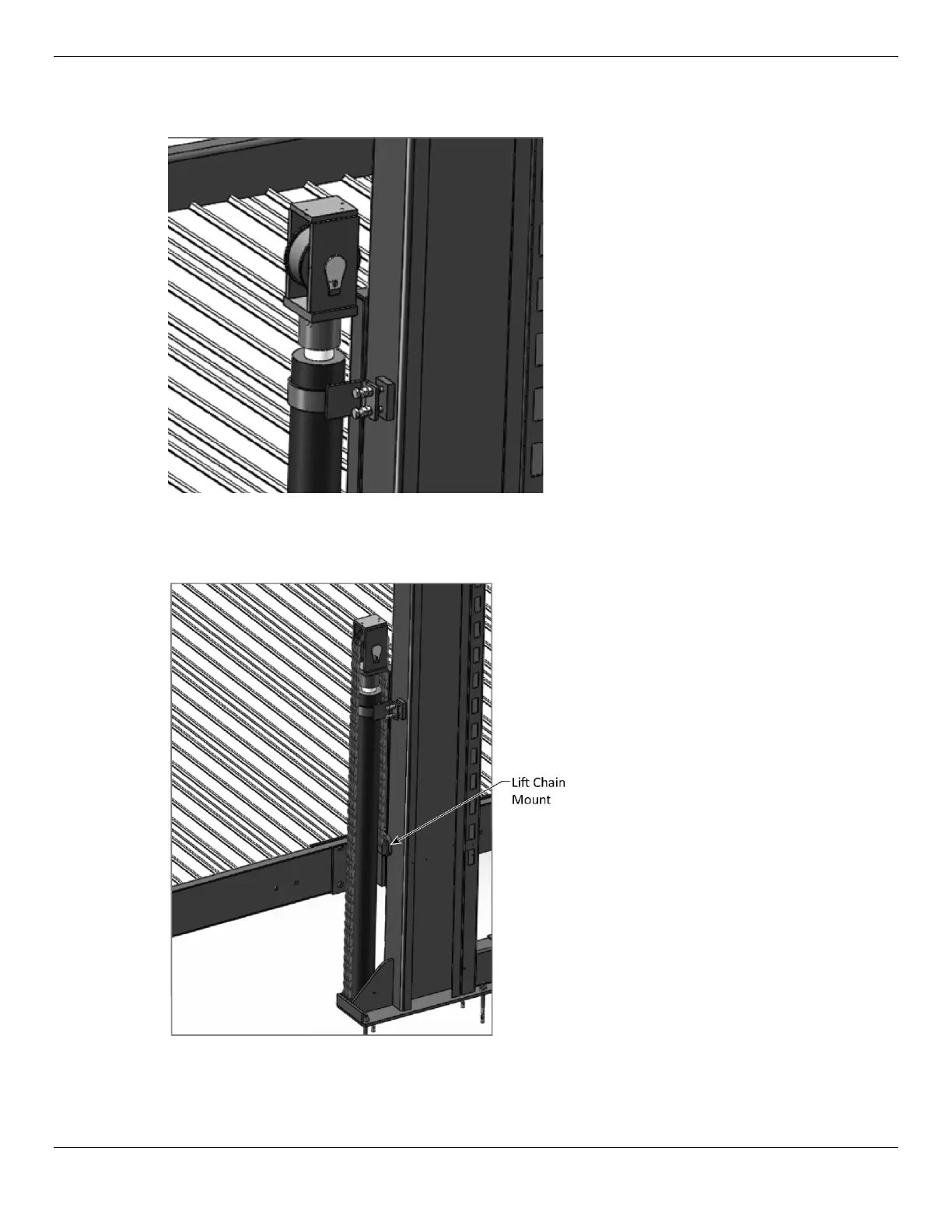

3. Place the Cylinder Head with Chain Wheel on the Cylinder Rod. Refer to the figure below.
Drawing not to scale.
4. Feed the Lift Chain into the Cylinder Head over the Chain Wheel and then attach to the Chain
Mount on the Powerside Lift Carriage using two 2 mm x 20 Split Pins. Refer to the figure below.
Drawing not to scale.
