Installing the Lift Cylinder and Lift Chain
The Lift Cylinder receives hydraulic fluid from the Power Unit. As the Cylinder Rod extends, it drives the
Lift Chain that is attached on one end to the Lift Carriage and on the other end to the Powerside Lift
Post.
To attach the Lift Cylinder and Lift Chain:
1. Attach one end of the Lifting Chain to the Mounting at the Base of the Powerside Post. Refer to the
figure below. Lock the Pin through the Chain and Mount with two 2 mm x 20 mm Split Pins, one
on each side.
Install the Lift Cylinder on the Powerside Post in the holes provided at the bottom of the Post.
2. Attach the Cylinder to the Powerside Post using the Cylinder Bracket and Two M10 Socket Head
Cap Screws. Refer to the figure below.

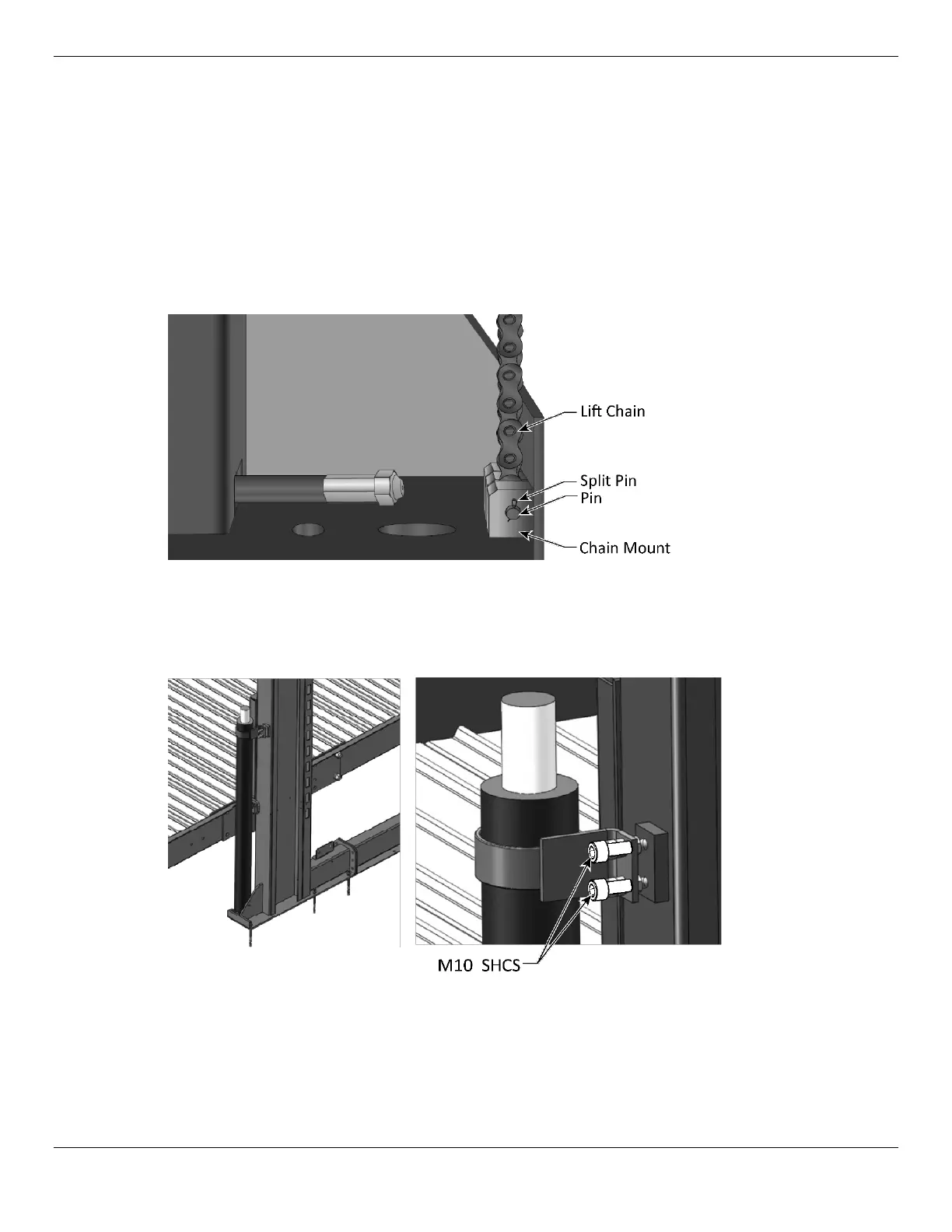

Drawing not to scale.
