PL-6000DC/DCX Two-Post Parking Lift 34 P/N 5900273 — Rev. A6 —July 2024

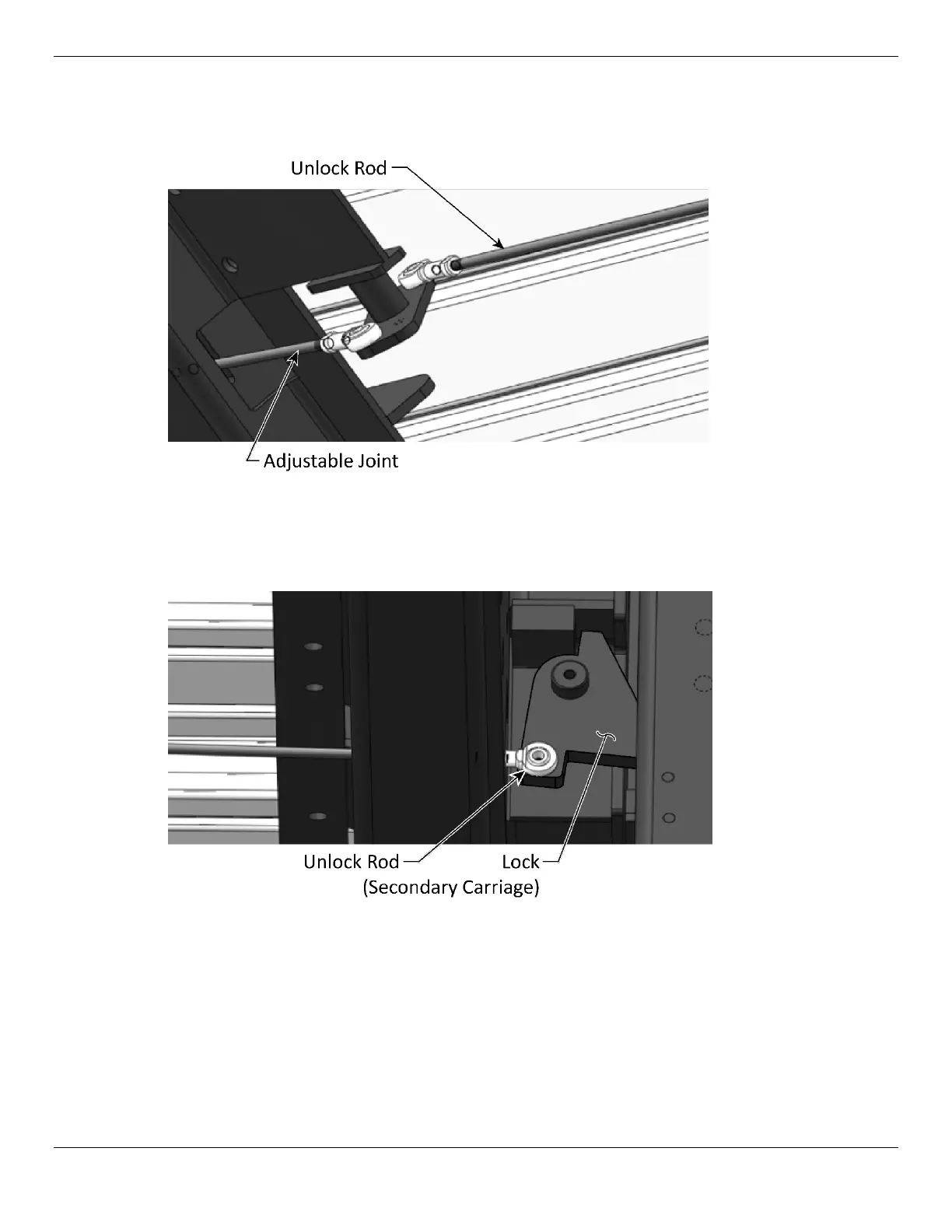

4. Connect the Unlock Rod to the Unlock Pin Seat Using the M6 x 35 and M6 Hex Nuts. Refer to the
figure below.
Drawing not to scale.
5. Connect the Unlock Rod to the Lock on the Offside Lift Carriage using a M6 x 35 Hex Head Bolt
and M6 Hex Nut. Refer to the figure below.
Drawing not to scale.
