PL-6000DC/DCX Two-Post Parking Lift 33 P/N 5900273 — Rev. A6 —July 2024

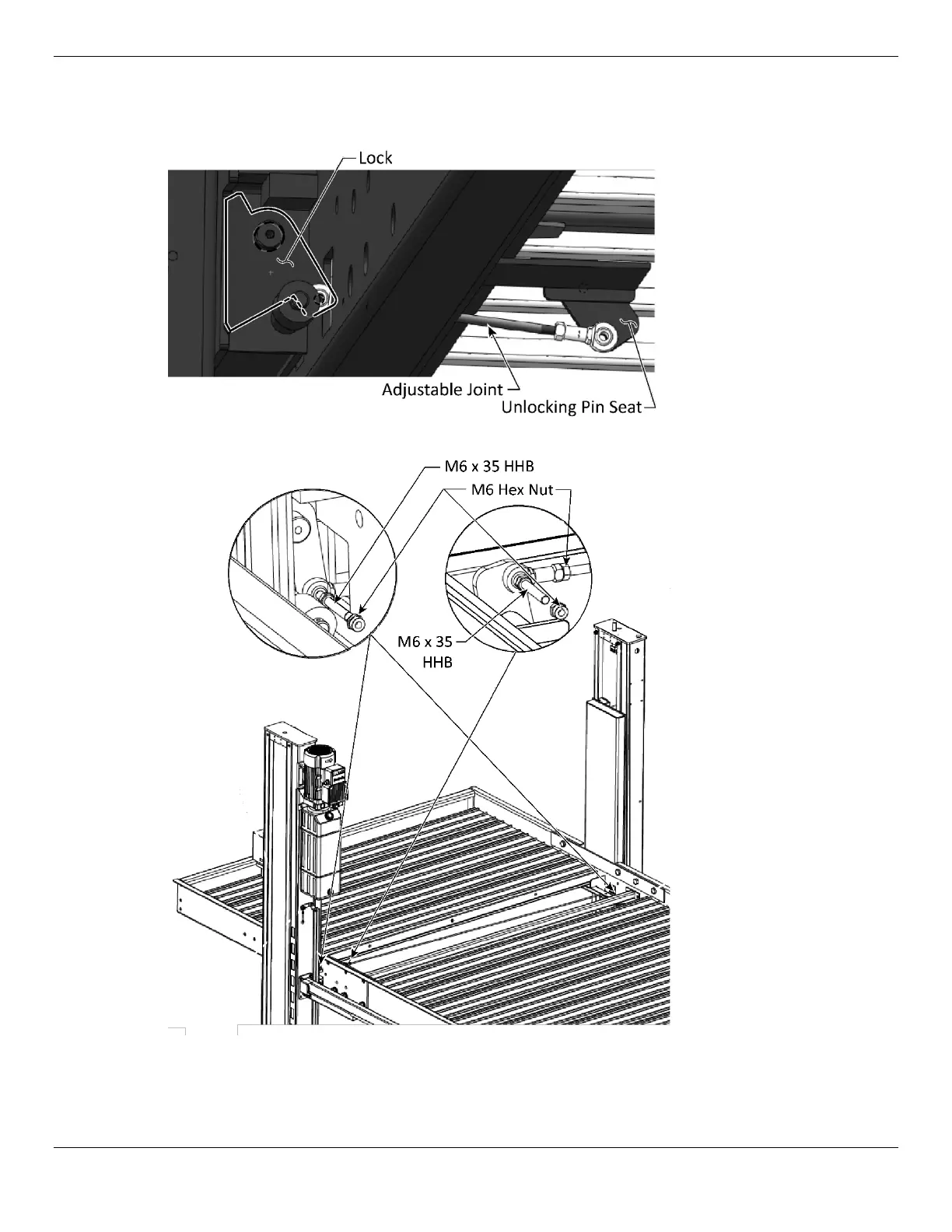

3. Connect the Adjustable Joint and Lock on the Powerside Lift Carriage to the Unlocking Pin Seat
and the Lock, using two M6 x 35 Hex Head Bolts and M6 Hex Nuts. Refer to figures and detail
below.
Drawing not to scale.
