Connecting the Safety Lock Release - Lift Carriages
Safety Locks are triangular shaped spring-loaded plates mounted on the Lift Platform that snap into
slots in both Posts preventing downward motion. The Safety Lock Release prevents the Lock from
engaging the slots in the Posts thus allowing the Lift platform to lower.
To install the Safety Lock Release:

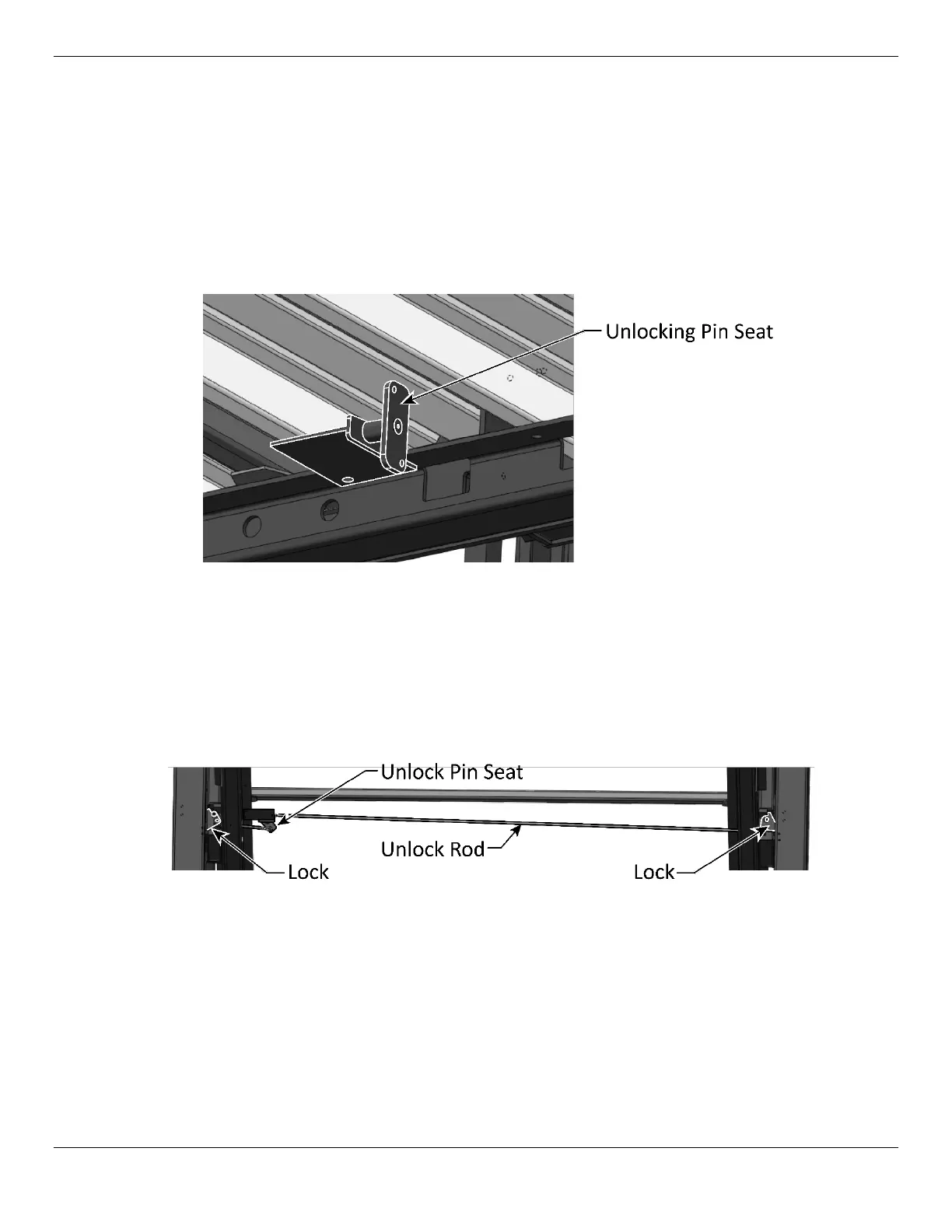

1. Mount the Unlocking Pin Seat on the Powerside Side Beam using the existing holes with two M10
x 25 and two M10 Hex Nuts with Flange. Refer to the figure below.
Drawing not to scale.
2. The Unlocking Rod, Adjustable Joints and Articulated Bearings are installed beneath the Platform
and connect the Triangular Shaped Locks on the Powerside and Offside beams. Refer to the figure
below.
Drawing not to scale.
