PL-6000DC/DCX Two-Post Parking Lift 31 P/N 5900273 — Rev. A6 —July 2024
Drawing not to scale.

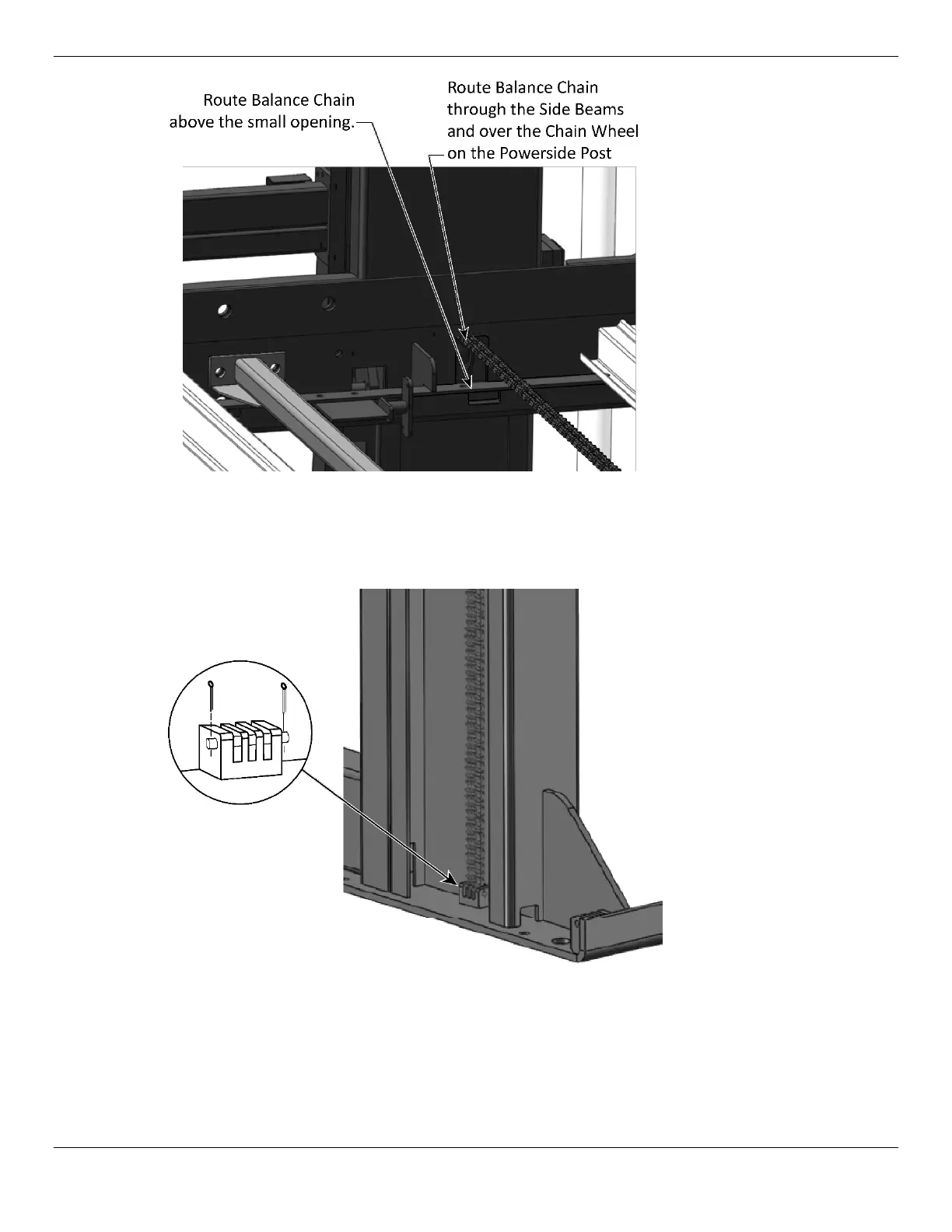

3. Attach the Balance Chain to the bottom of the Powerside Post using two 2 mm x 20 Split Pins.
Refer to the figure below.
Drawing not to scale.
