To Route and Attach the Balance Chain:

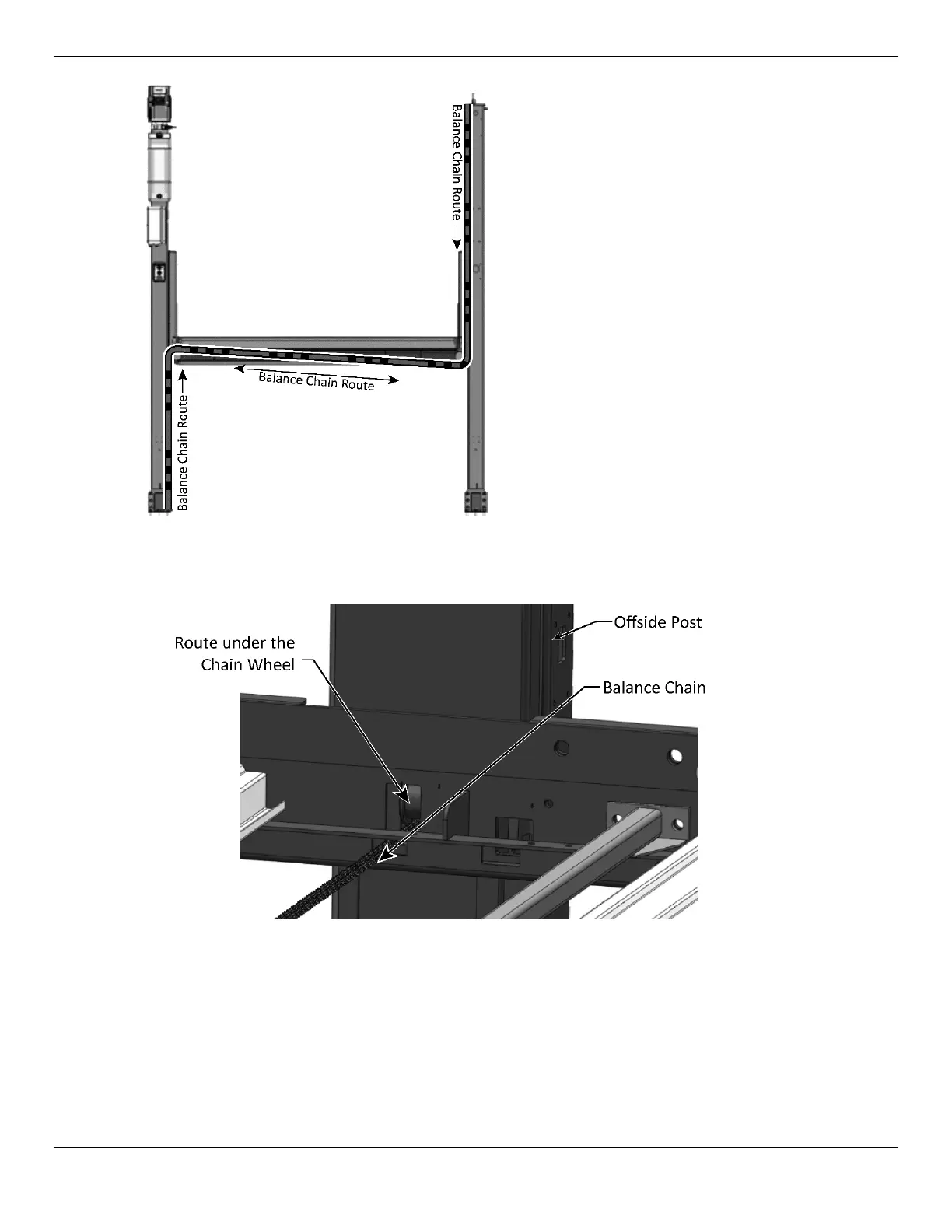

1. On the Offside Post the Balance Chain routes beneath a Chain Roller and heads left through the
small opening in the Lift Carriage and Side Beam. Refer to the figure below.
Drawing not to scale
2. On the Powerside Post, route the Balance Chain above the small opening in the Side Beam then
through the Beam and over the Chain Wheel to the bottom of the Powerside Post. Refer to the
figure below.
