Installing the Tire Stop, Lift Platform Plates and Ramp
The Tire Stop and Lift Platform Plates provide support for the Vehicle being lifted, while the Ramp is an
inclined plane easing the Vehicle’s entrance to the Lift.
To install the Lift Platform Plates and Ramp:

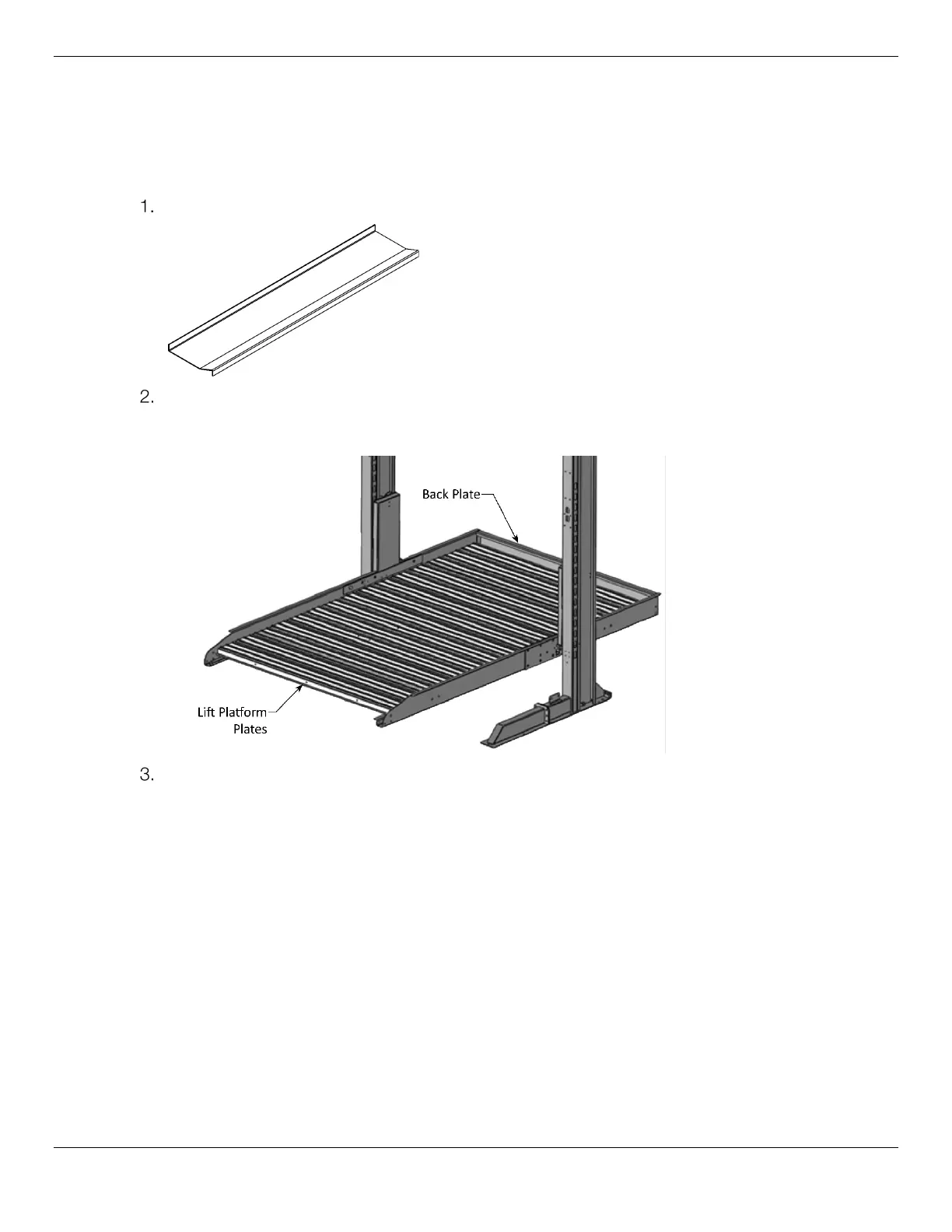

Install the Tire Stop next to the Back Plate. Refer to the figure below.
Place 14 Lift Platform Plates from the Tire Stop to the front of the Lift. Rocking the Side Beams and
Posts allows a larger clearance for the plates, if required. Push the Platforms toward the Back
Plate as you load them in. Refer to figure below.
Install the Ramp and connect to the Side Beams using two M14 x 100 and one M14 x 40 Hex
Head Bolts, Ø14 mm Lock Washers, Ø14 mm Washers and M14 Hex Nuts. Do not tighten
fasteners, leave finger tight. Bolts will be tightened during the
Operational Test.
