Connecting the Safety Lock Release Cable
A Wire Rope connects the Safety Lock Release Handle to the Safety Lock Release Mechanism. The
Wire Rope is factory installed and routed from the Release Handle through the Control Arm, around a
Sheave and then up and out of the Control Arm to be attached to the Rocker Arm on the Release
Mechanism. Refer to the figures below.
To Attach the Safety Lock Release Cable:

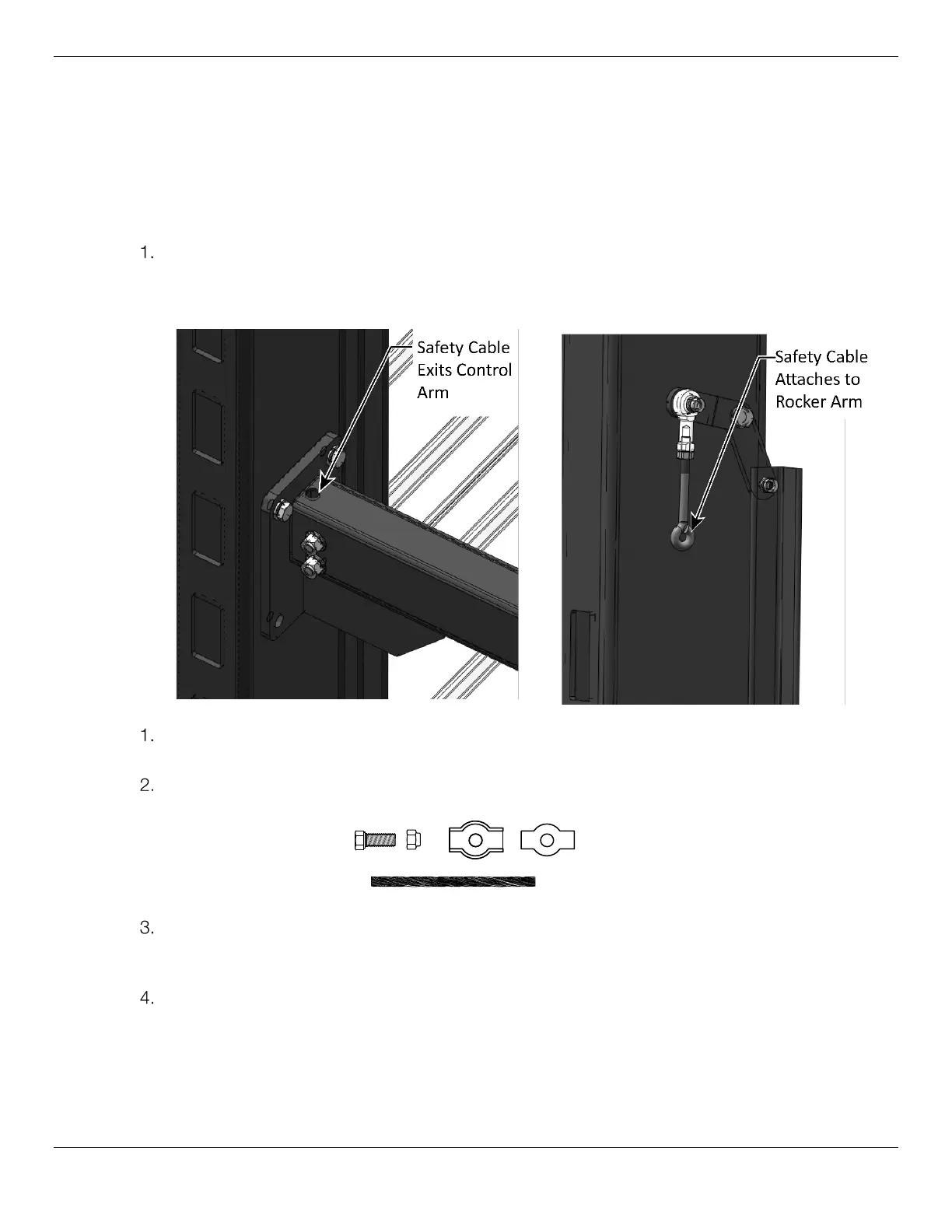

Route the Release Cable from where it exits the Control Arm up to the Rocker Arm on the Release
Mechanism. Refer to the figures below.
Connect the end of the Safety Release Cable from the Control Arm though the Rocker Arm
Assembly eyelet.
While holding cable’s looped end with the Release Cable, install and tighten the provided Clamp
Assm. (5595724)
Adjust the Safety Release Cable tension using the Wire Rope Clamp until a smooth motion is
achieved on the Safety Release Mechanism, when pulling on the Manual Safety Lock Release
Handle.
Ensure the that Clamp Assembly is securely tightened.
