67
Class I, IPE, with BENNING MA 2-16
IPE
dir.
:
´
only after passed RInsu measurement

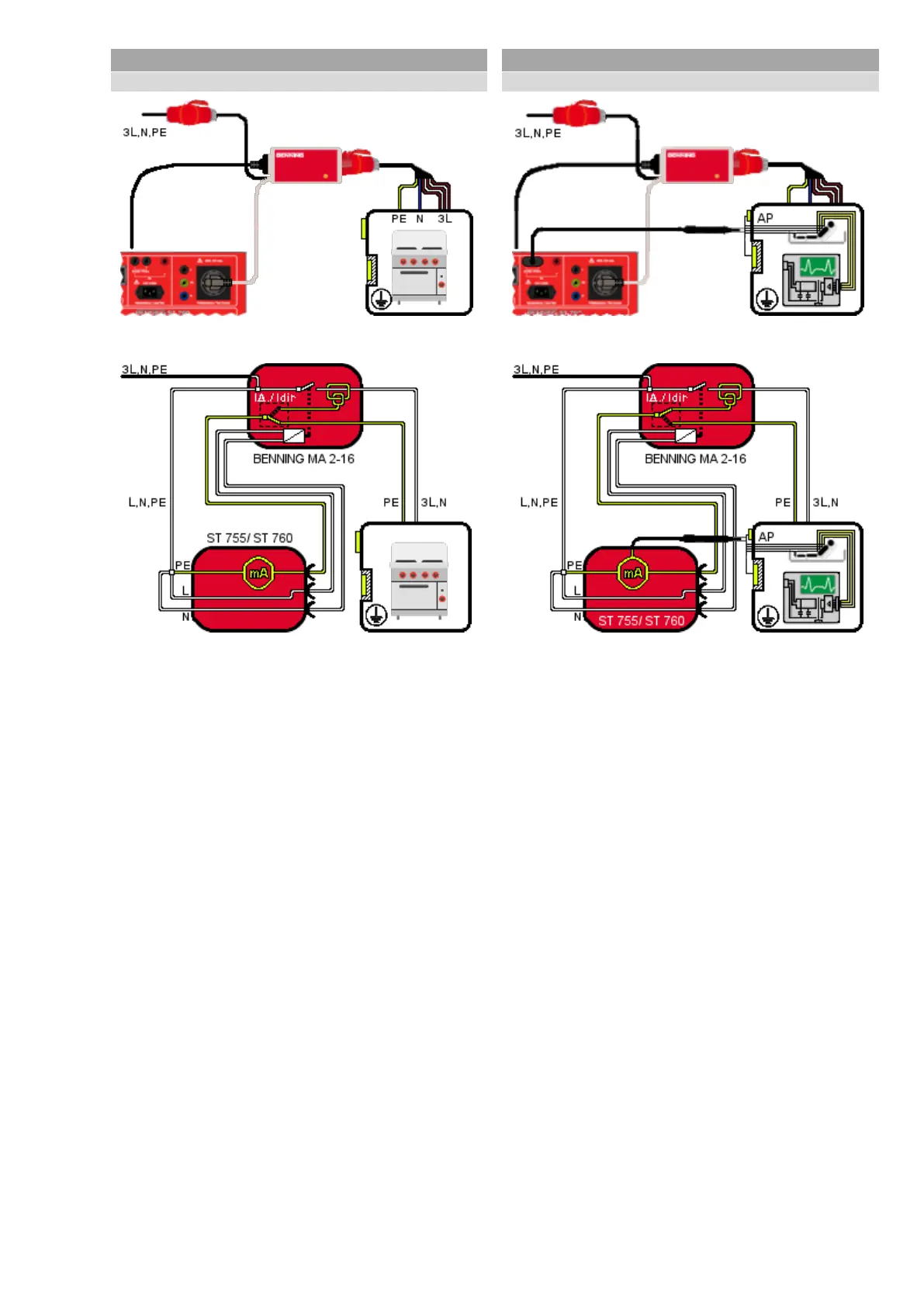

Connection diagram
VDE 0701-0702, VDE 0751-1, VDE 0544-4
Circuit diagram
VDE 0701-0702, VDE 0751-1, VDE 0544-4
(switch position IPE direct)
 Connect the BENNING MA 2-16 measuring adapter to the
BENNING ST 755/ ST 760 appliance tester according to the
connection conditions.
 For differential current measurement, set the orange toggle switch
of the BENNING MA 2-16 to “IPE direct”.
 Start the IPE test at the appliance tester
(automatic test or manual test).
 Follow the instructions shown on the display of the appliance
tester.
Class I, ILeak, with BENNING MA 2-16
Switch position of measuring adapter: IPE
diff.
(IPE Δ)
Connection diagram
VDE 0751-1
Circuit diagram
VDE 0751-1
(switch position IPE Δ)
 Connect the BENNING MA 2-16 measuring adapter to the
BENNING ST 755/ ST 760 appliance tester according to the
connection conditions.
 For differential current measurement, set the orange toggle switch
of the BENNING MA 2-16 to “IPE Δ”.
 Start the ILeak test at the appliance tester
(automatic test or manual test).
 Follow the instructions shown on the display of the appliance
tester.
