Setting up Your Display10
English

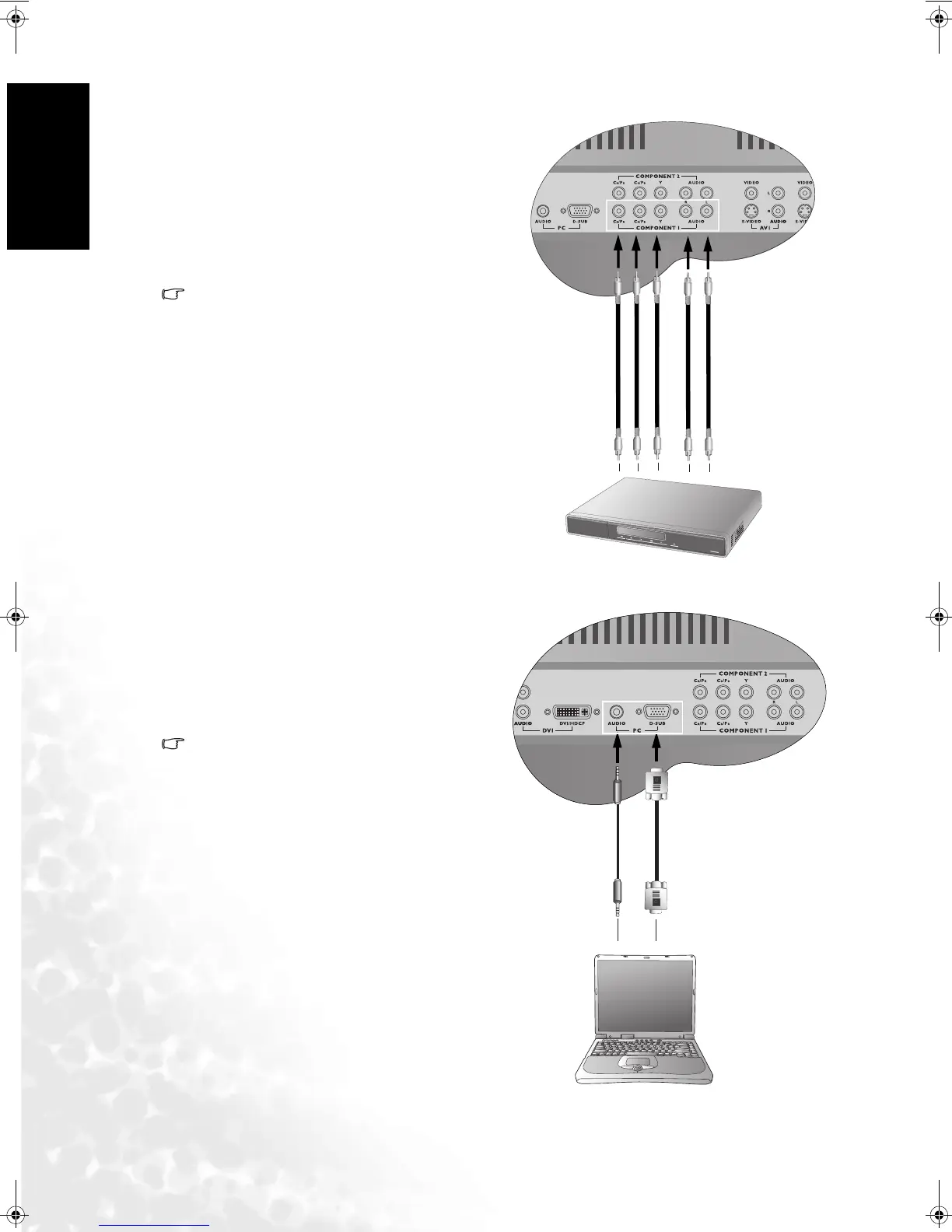

Connecting Component Video Signals
Connecting RGB Signals (Mini D-SUB)
1. Connect the Component video output of your
AV equipment to the display's COMPONENT
Y CB/PB CR/PR terminals using a Component
video cable.
2. Connect the audio output of your AV
equipment to the display's COMPONENT
AUDIO L/R input terminals using the AV
cable or equivalent.
1. Of the currently available video signal
types, Component video input offers the
best quality. Component video output is
available on progressive scan DVD
players and Digital television decoders.
The image quality with this type of input
is superior to that obtained with S-video.
All High Definition Television signals
must go through this input.
2. DV3250 supports 480p, 720p, 576p and
1080i HDTV signals provided by high
definition AV equipment such as a HDTV
decoder.
3. Ensure the connector colors match,
failure to connect the colors of the cables
to the corresponding colored terminals
will result in a incorrectly color image or
badly distorted image.
1. Connect the analog video output of your
PC to the PC D-SUB terminal on the
display using a Mini D-SUB 15-pin cable.
2. Connect the audio output of your PC to the
display's PC AUDIO input terminal using
an appropriate cable.
1. If the signal resolution is greater than
the default resolution, the screen may be
unable to display image details clearly.
2. You will need a converter to connect a
Macintosh computer video to the display
using a PC D-SUB 15-pin cable.
3. Certain PC models cannot be connected
to the display.
4. The computer in the illustration is shown
only for reference; your equipment may
vary.
5. Additional equipment shown in the
illustration is not provided.
6. Do not set the computer's horizontal and
vertical scanning frequencies less than
or greater than the frequency range of
the display. (refer to "Supported Modes"
on page 42)
7. If you require more information on how
to connect your equipment, please refer
to the manual for the piece of equipment
you wish to attach.
DVD player
Component Video
Cable
Audio (AV) cable
PC
Audio cable
Mini D-SUB cable
DV3250-En.book Page 10 Monday, December 13, 2004 12:19 PM
