Connecting DVI/HDCP Signals
Connecting Audio Output Signals

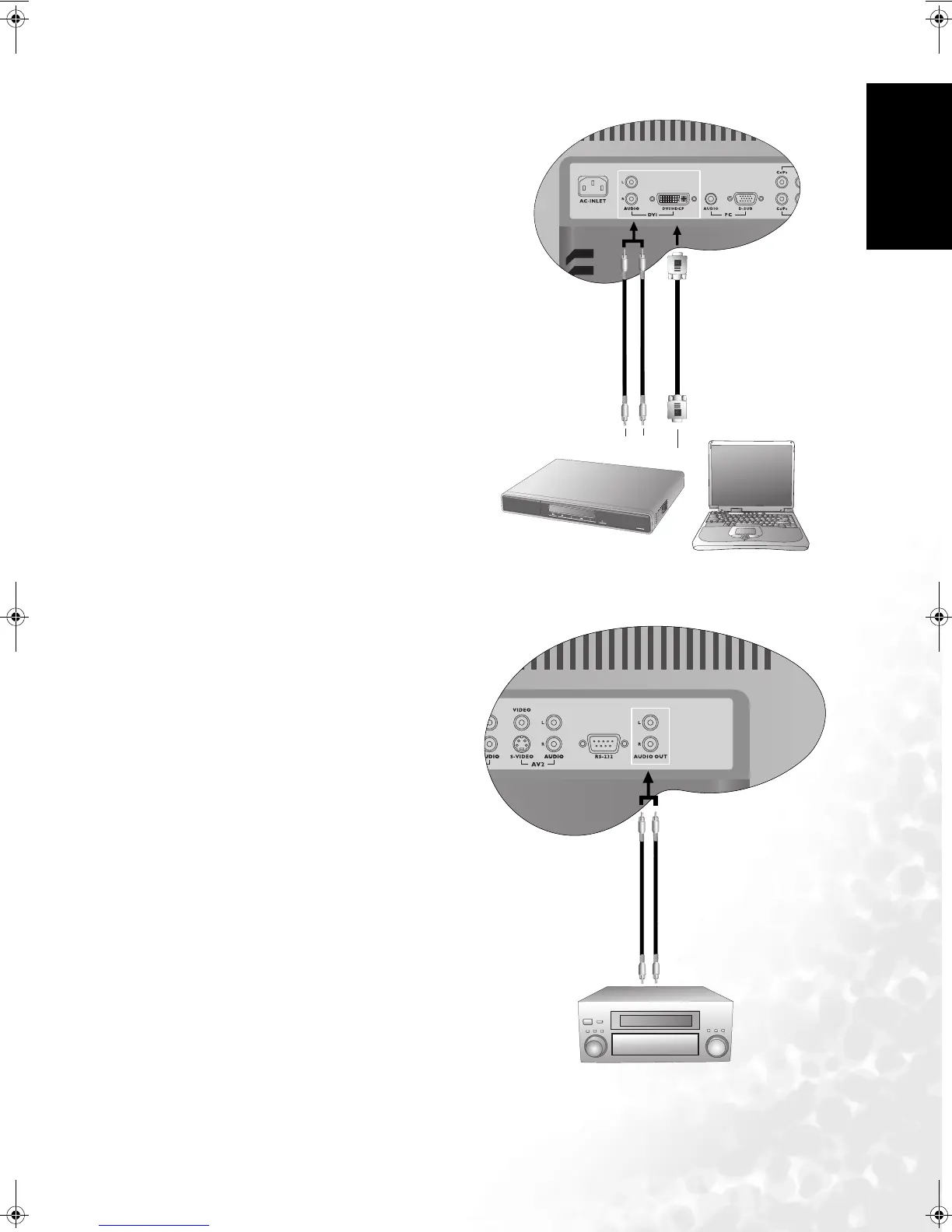

1. Connect the digital video output of your
PC to the DVI-HDCP terminal on the
display using a DVI-D cable.
2. Connect the audio output of your PC to
the display's DVI AUDIO L/R input
terminals using the AV cable or
equivalent.
DV3250 provides extra audio output ter-
minals for delivering audio signal to an
amplifier or other audio devices.
Connect the AUDIO OUT L/R terminals
on the display to the signal input terminals
of an amplifier or other audio devices using
the AV cable or equivalent.
PC
DVD player
DVI-D cable
Audio cable
Audio (AV) cable
