6 - PARAMETER DESCRIPTION
Jump to Parameter PFN 00
By changing the value of this parameter and pressing [ENTER], you can jump directly to any parameter within that group.

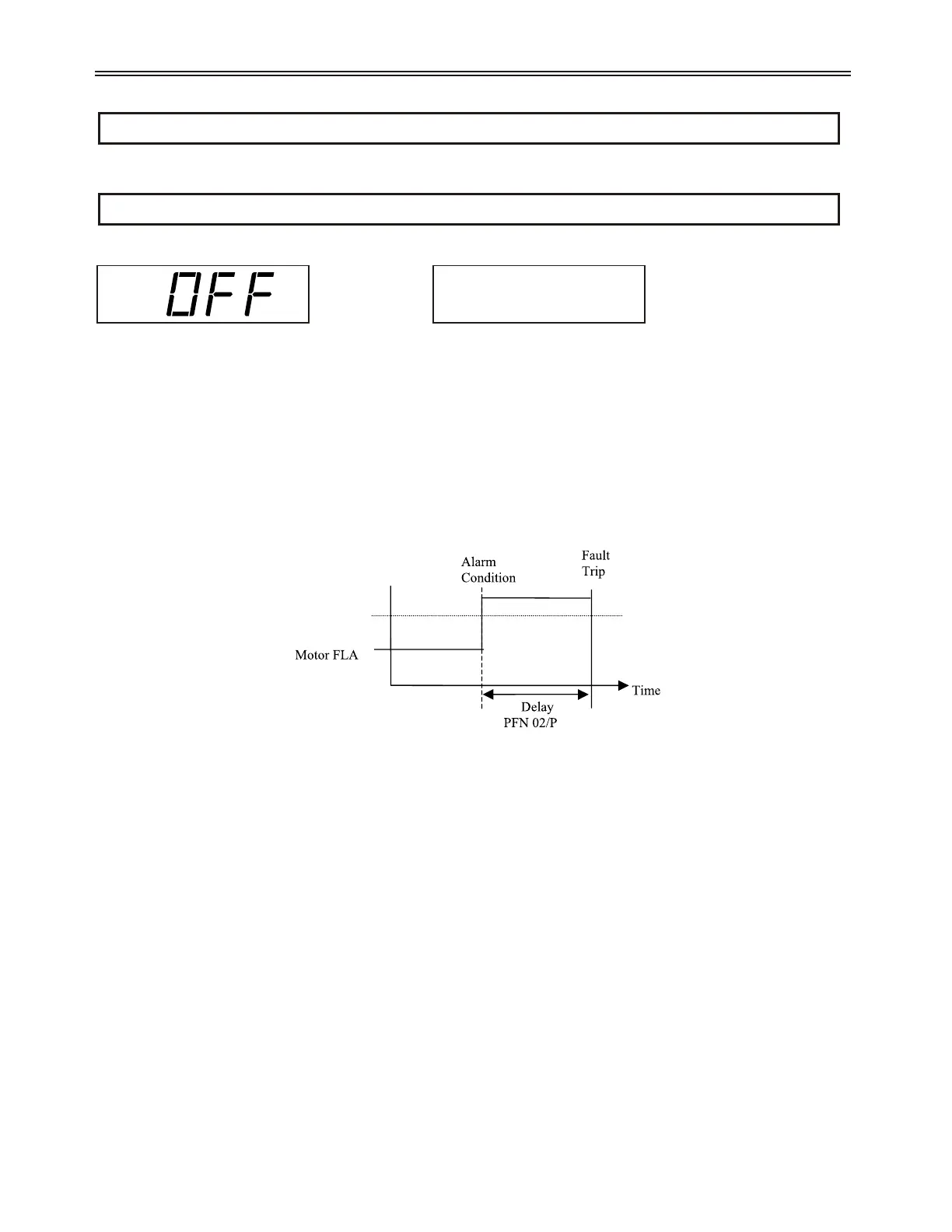

P32 Over Current Trip Level PFN 01
LED Display LCD Display
Range Off, 50 – 800 % of FLA (Default Off)
Description If the MX
2
detects a one cycle, average current that is greater than the level defined, an over current alarm
condition exists and any relays programmed as alarm will energize. The over current timer starts a delay time.
If the over current still exists when the delay timer expires, the starter Over Current Trips (F31) and any relay
programmed as fault relay changes state.
The Over Current Trip is only active in the UTS state, Energy Saver state, Current follower or while in the
Phase Control mode.
A relay can be programmed to change state when an over current alarm condition is detected.
See Also Over Current Time (P33 / PFN 02) parameter on page 99.
Auto Reset Limit (P42 / PFN 11) parameter on page 104.
Controlled Fault Stop Enable (P43 / PFN 12) parameter on page 105.
Relay Output Configuration (P52-P54 / I/O 05-07) parameters on page 112.
PFN: Over Cur Lvl
01 Off
%
Current
Over Cur Lvl
PFN 01/P
32
33
Current
To Next Page
