P68 Communication Timeout FUN 12
LED Display LCD Display
Range Off, 1 – 120 seconds (Default Off)
Description The Communication Timeout parameter sets the time that the starter continues to run without receiving a valid
Modbus request. If a valid Modbus request is not received for the time that is set, the starter declares an F82
(Modbus Time Out). The starter performs a controlled stop.
See Also Local Source (P4 / QST 04) parameter on page 77.
Remote Source (P5 / QST 05) parameter on page 78.
Stop Mode (P15 / CFN 14) parameter on page 87.
Controlled Fault Stop Enable (P43 / PFN 12) parameter on page 105.
Communication Address (P70 / FUN 10) parameter on page 121.
Communication Baud Rate (P69 / FUN 11) parameter on page 121.
P69 Communication Baud Rate FUN 11
LED Display LCD Display
Range 1200, 2400, 4800, 9600, 19200 bps (Default 19200)
Description The Communication Baud Rate parameter sets the baud rate for Modbus communications.
See Also Local Source (P4 / QST 04) parameter on page 77 .
Remote Source (P5 / QST 05) parameter on page 78.
Communication Address (P70 / FUN 10) parameter on page 121.
Communication Timeout (P68 / FUN 12) parameter on page 121.
Communication Byte Framing (P71 / FUN 13) parameter on page 122.
P70 Communication Address FUN 10
LED Display LCD Display
Range 1 – 247 (Default 1)
Description The Communication Address parameter sets the starter’s address for Modbus communications.
See Also Local Source (P4 / QST 04) parameter on page 77.
Remote Source (P5 / QST 05) parameter on page 78.
Communication Baud Rate (P69 / FUN 11) parameter on page 121.
Communication Timeout (P68 / FUN 12) parameter on page 121.
Communication Byte Framing (P71 / FUN 13) parameter on page 122.
121

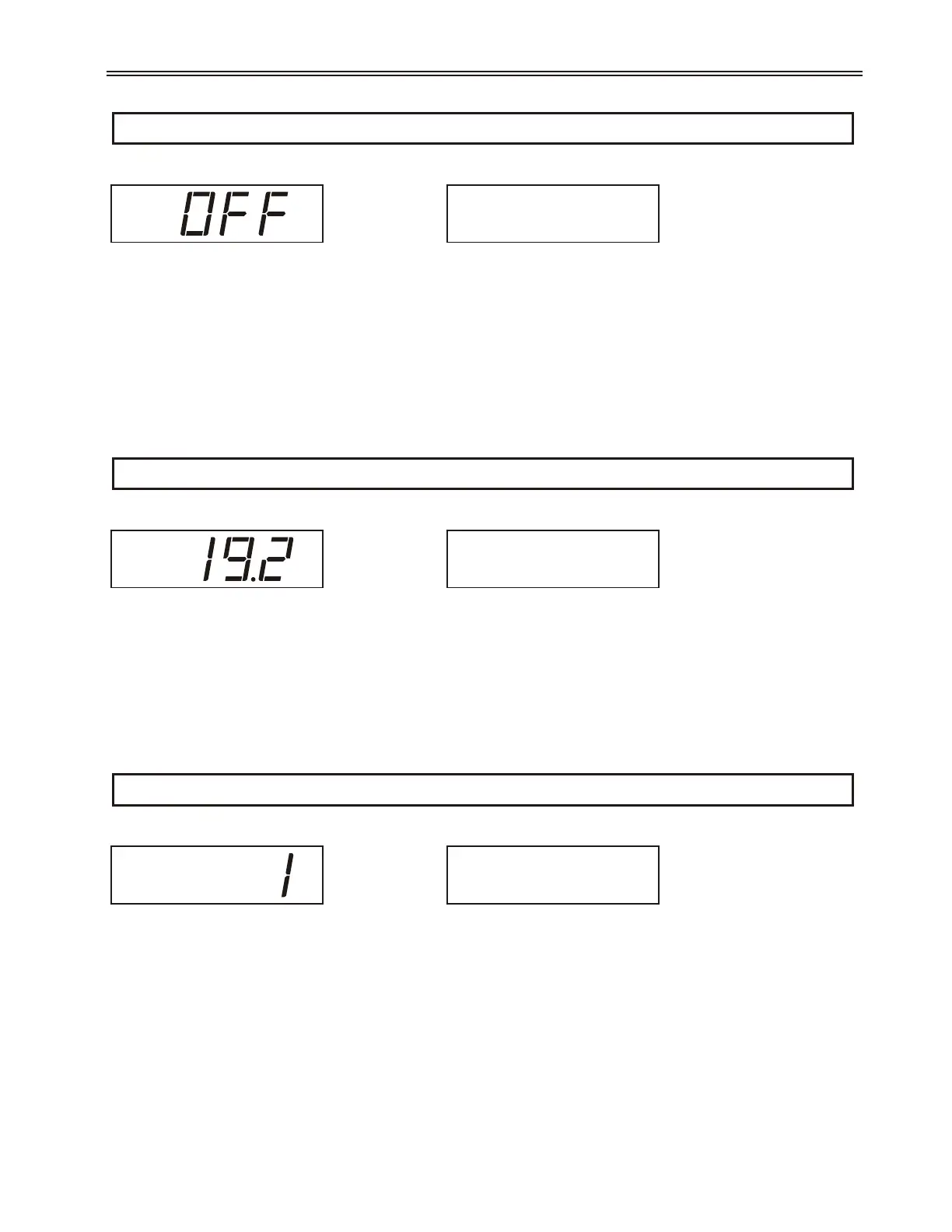

6 - PARAMETER DESCRIPTION
FUN: Com Timeout
12 Off
FUN: Com Baudrate
11 19200
FUN: Com Drop #
10 1
