2.3.4. DC1005 Panel Cutout
Installation instruction:
Only install the DIALOG CONTROLLER on a level surface.
The support points on the DIALOG CONTROLLER may not deviate from one an-
other by more than +/-0.5 mm. If the DIALOG CONTROLLER is nonetheless
mounted on a base which is not level, mechanical tension can result in cracks in
the front panel.
The DIALOG CONTROLLER is intended for front installation. A square panel cut-
out is required. The support material thickness may not exceed 6 mm. The panel
cutouts are identical for units equipped with either a keyboard or a touchpad.

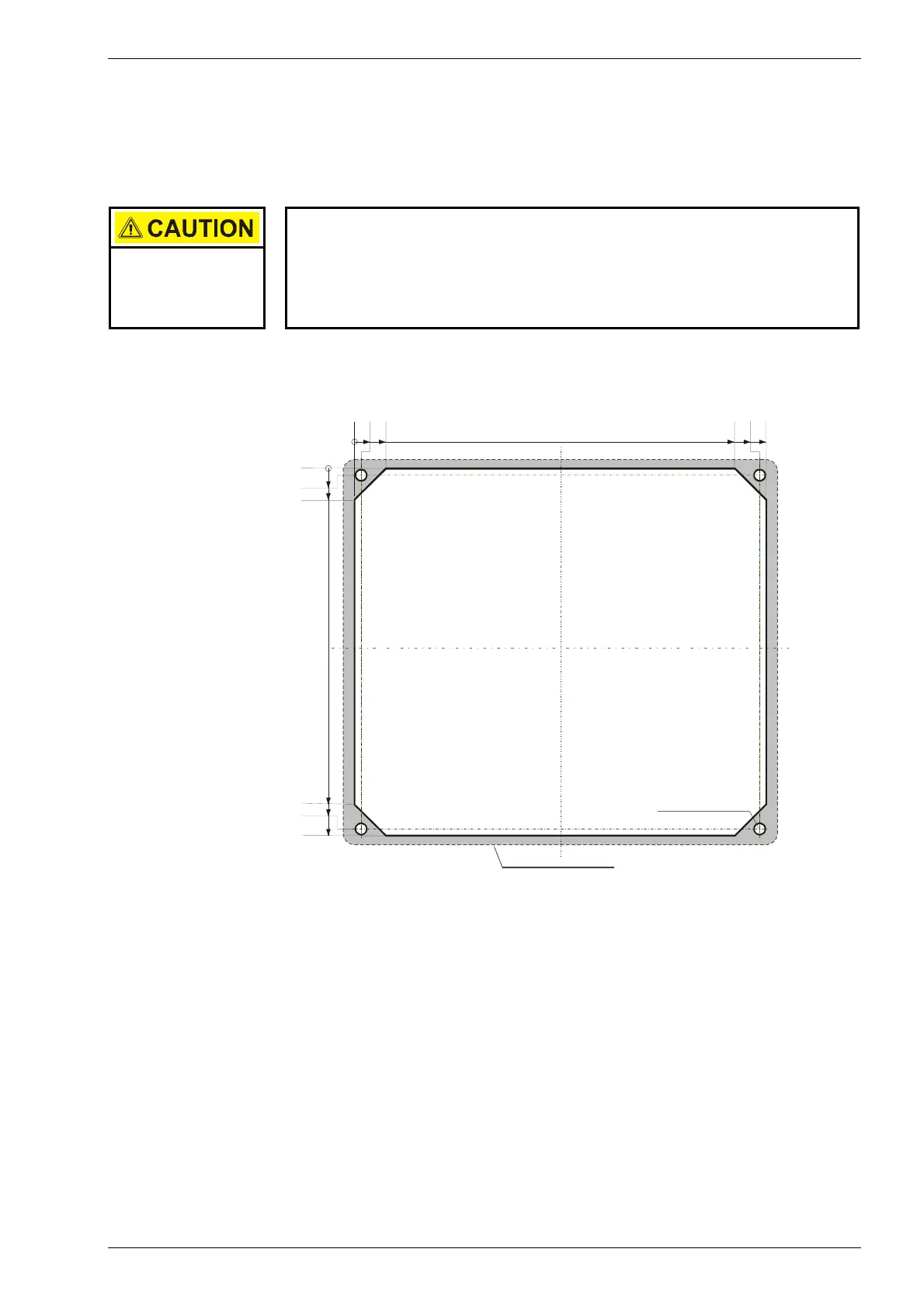

2VF100235DG00.cdr
Frontansicht
Front view
Fronttafel-Ausschnitt
184 x 162
front panel cut out
Frontrahmen / front frame
194 x 172
0 3
3
14
14
148
159
162
170
181
184
0
Bohrungen /
5 mm (4x)
drills
Ø
Alle Maße in [mm]
All dimensions in [mm]
