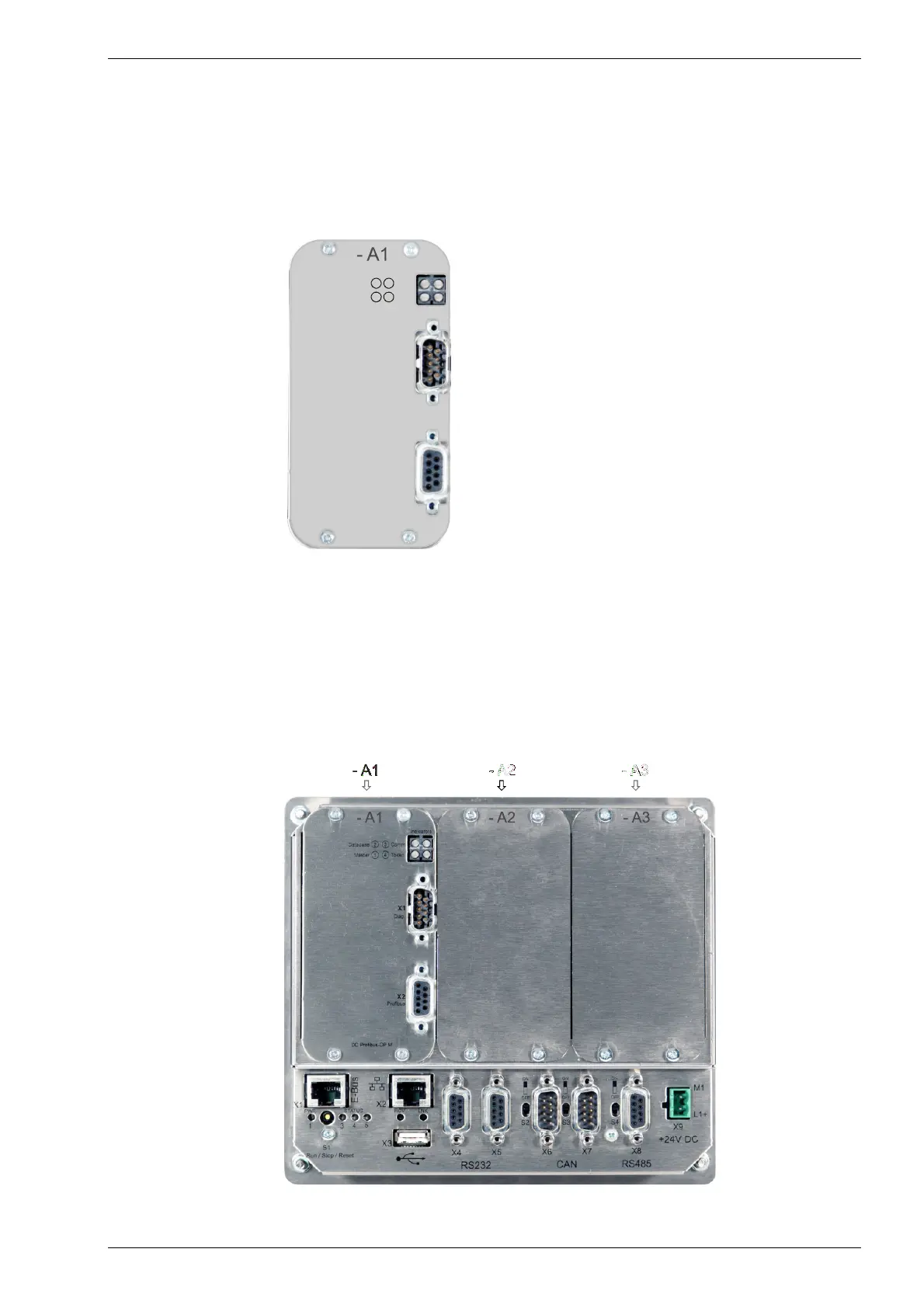

5.2.2. Front View and Pin Assignment
Pin overview
2VF100308DG00.cdr
Power supply
External power supply The PROFIBUS MASTER communications interface is supplied from the DIALOG
CONTROLLER's power supply.
Installation
The PROFIBUS MASTER card is factory installed and may only be installed in the
DIALOG CONTROLLER in the position shown in the figure below.
2VF100309DG00.cdr
Indicators
X1
Diag.
X2
Profibus
DC Profibus-DP M
Database
Comm.
Master Token
2
1
3
4
