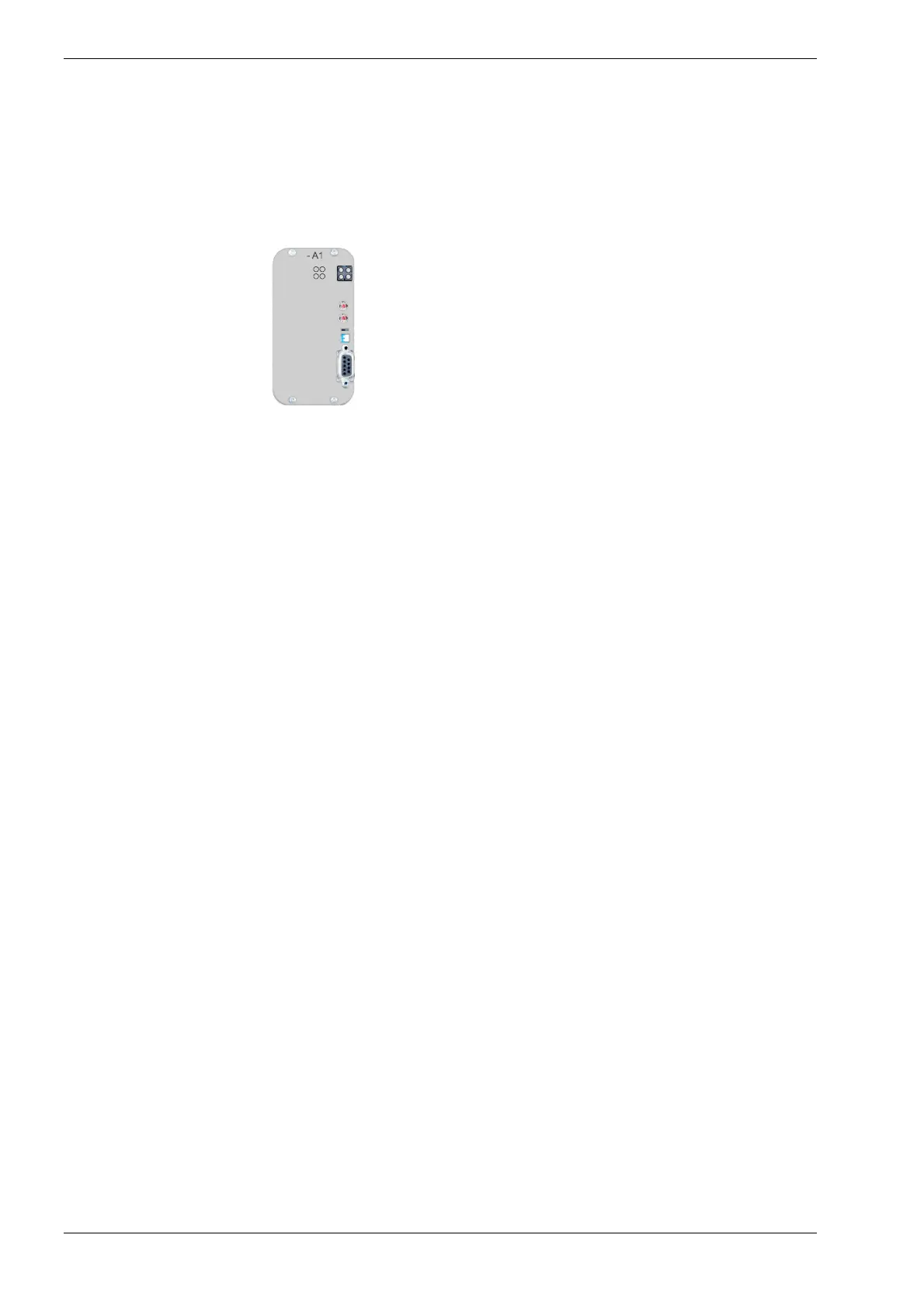

5.3. PROFIBUS SLAVE Card
The PROFIBUS SLAVE card is a PROFIBUS SLAVE
module, permanently installed in a DIALOG
CONTROLLER.
Short description
2VF100310DG00.cdr
Performance characteristics overview
• PROFIBUS DP SLAVE bus module
• Max. 244 byte input and 244 byte output data (all together 416 byte)
• Automatic baud rate recognition, 9600 bit/sec. - 12 MB/sec.
• Potential isolated PROFIBUS SLAVE RS-485 interface with integrated
DC/DC converter and optocouplers
• All required DP services as well as user parameter data and device-specific
diagnostics.
Standard delivery The standard delivery comprises:
• PROFIBUS SLAVE card installed in the DIALOG CONTROLLER.
Indic ators
S1
S3
S2
Addres s x1
Termination
ON OFF
A
ddress x10
X1
Prof ibus
DC Profibus-DPS
Online Offline
n.c. Er ror1
2 3
4
