BERGHOF DC1005 - Serial Ports

Product Description BERGHOF Automation
36 DC1000_HB_en_2D0982003ZD00.doc 2VF100107FE03.doc

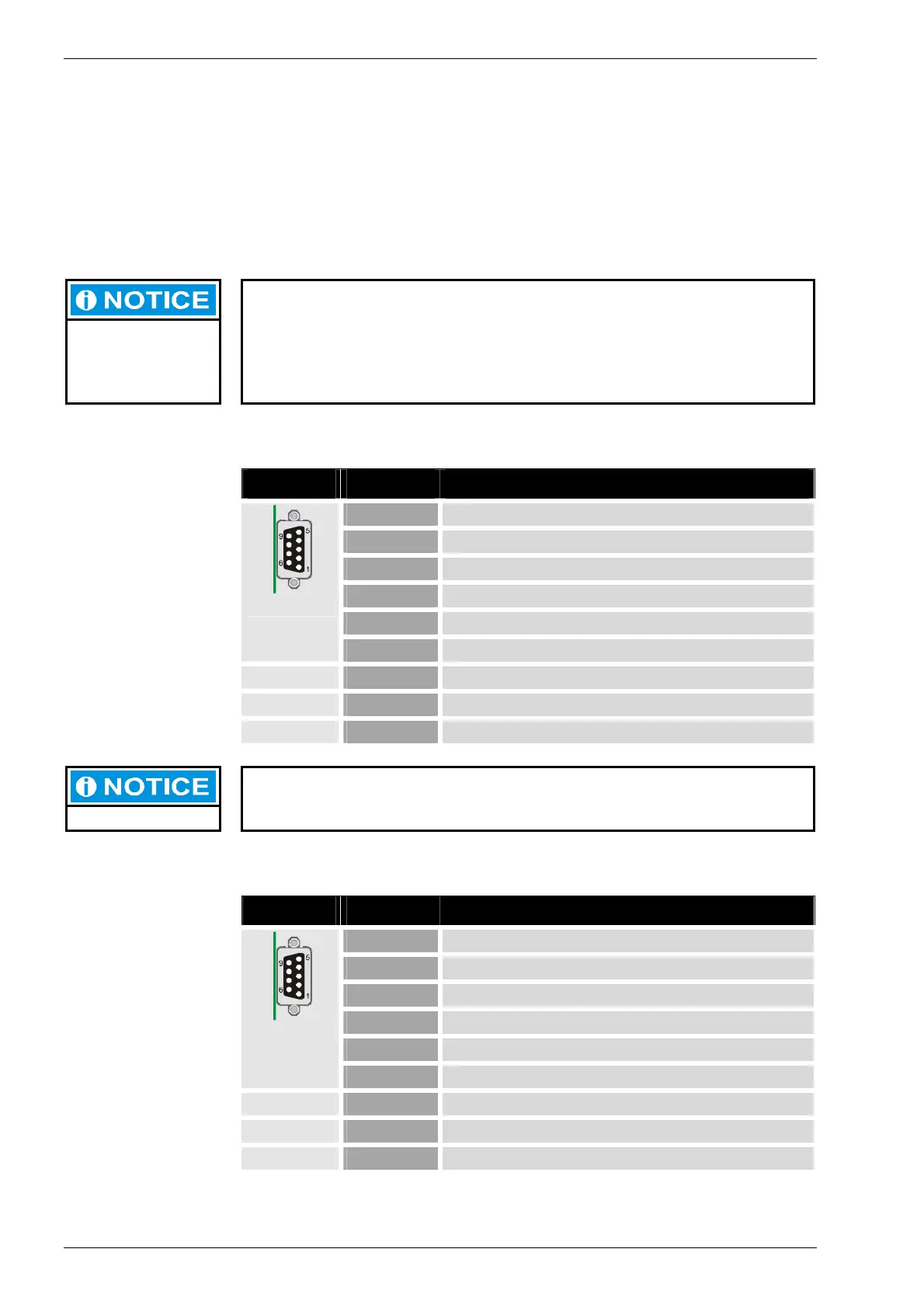

2.7.6. Serial Ports
In all, the module is equipped with three serial communications interfaces, each of
which is connected using a 9-pin Sub-B socket. X8 is a potential isolated RS485 in-
terface, while two RS232 ports are available at X4/X5.
The RS232 port at X4 has an exception setting!
Depending on the configuration it can be used as either a Linux console, or as a
PPP interface for remote maintenance or a CoDeSys programming interface.
If the DIALOG CONTROLLER is started in the configuration mode, the device
can be configured in this mode using a serial PPP link. Here too, connection is
via X4.
X4/5 connector RS232:pin assignment
X4/5
1
NC (Do not connect)
2 RXD
3 TXD
4
NC (Do not connect)
5 GND
Sub-D9 F
6
NC (Do not connect)
7
NC (Do not connect)
8
NC (Do not connect)
9
NC (Do not connect)
If the SD card reader is activated, then the second RS232 interface (X5) is not
longer available.
X8 connector RS485 pin assignment (potential isolated):
X8
1 RTXD-
2
NC (Do not connect)
3
NC (Do not connect)
4 RTXD+
5 GND
Sub-D9 F
6
NC (Do not connect)
7
NC (Do not connect)
8
NC (Do not connect)
9
NC (Do not connect)
