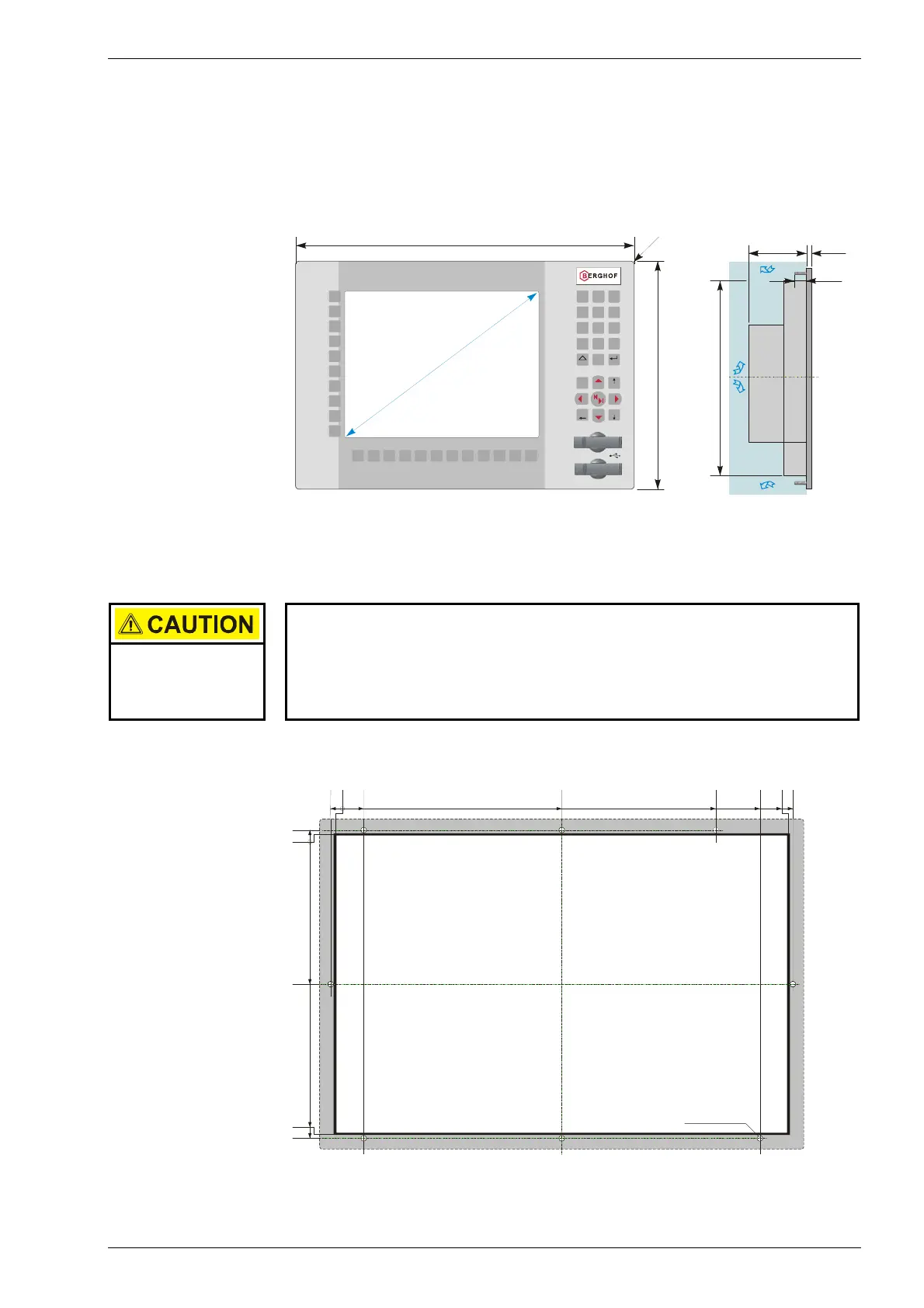

2.5.3. DC1012 Dimensions
Dimensions are identical for units equipped with either a keyboard or a touchpad.
2VF100270DG01.cdr
2.5.4. DC1012 Panel Cutout
Installation instruction:
Only install the DIALOG CONTROLLER on a level surface.
The support points on the DIALOG CONTROLLER may not deviate from one an-
other by more than +/-0.5 mm. If the DIALOG CONTROLLER is nonetheless
mounted on a base which is not level, mechanical tension can result in cracks in
the front panel.
The DIALOG CONTROLLER is intended for front installation. A square panel cut-
out is required. The support material thickness may not exceed 6 mm. The panel
cutouts are identical for units equipped with either a keyboard or a touch panel.
2VF100271DG00.cdr
Alle Maße in [mm] / All dimensions in [mm]
Frontansicht
Front view
4
0
-136
-272
-276
-4
0
26
206 346 386 412 416
Bohrungen /
5 mm (8x)
drills
Ø
Fronttafel-Ausschnitt
412 x 272 [mm]
Front panel cut-out
max. 77
ca. 270
6
Freie Luftzirkulation
free air circulation
Freiraum / clearance > 20 mm
16
G
e
w
i
n
d
e
b
o
l
z
e
n
M
4
x
1
6
m
m
t
h
r
e
a
d
e
d
b
o
l
t
BkSp
PgUp
Pos1
PgDn
7
0
.
1 2 3
Ctrl
6
98
54
EnterShift
_
F2
F3 F4 F5 F6 F7 F8 F9 F11
F10 F12
F1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S1
Alle Maße in [mm] / All dimensions in [mm]
440
300
1
2
,
1
"
DC1012T K
R
8
