5.2. PROFIBUS MASTER Card
The PROFIBUS MASTER card is a PROFIBUS MASTER
module, permanently installed in a DIALOG
CONTROLLER.

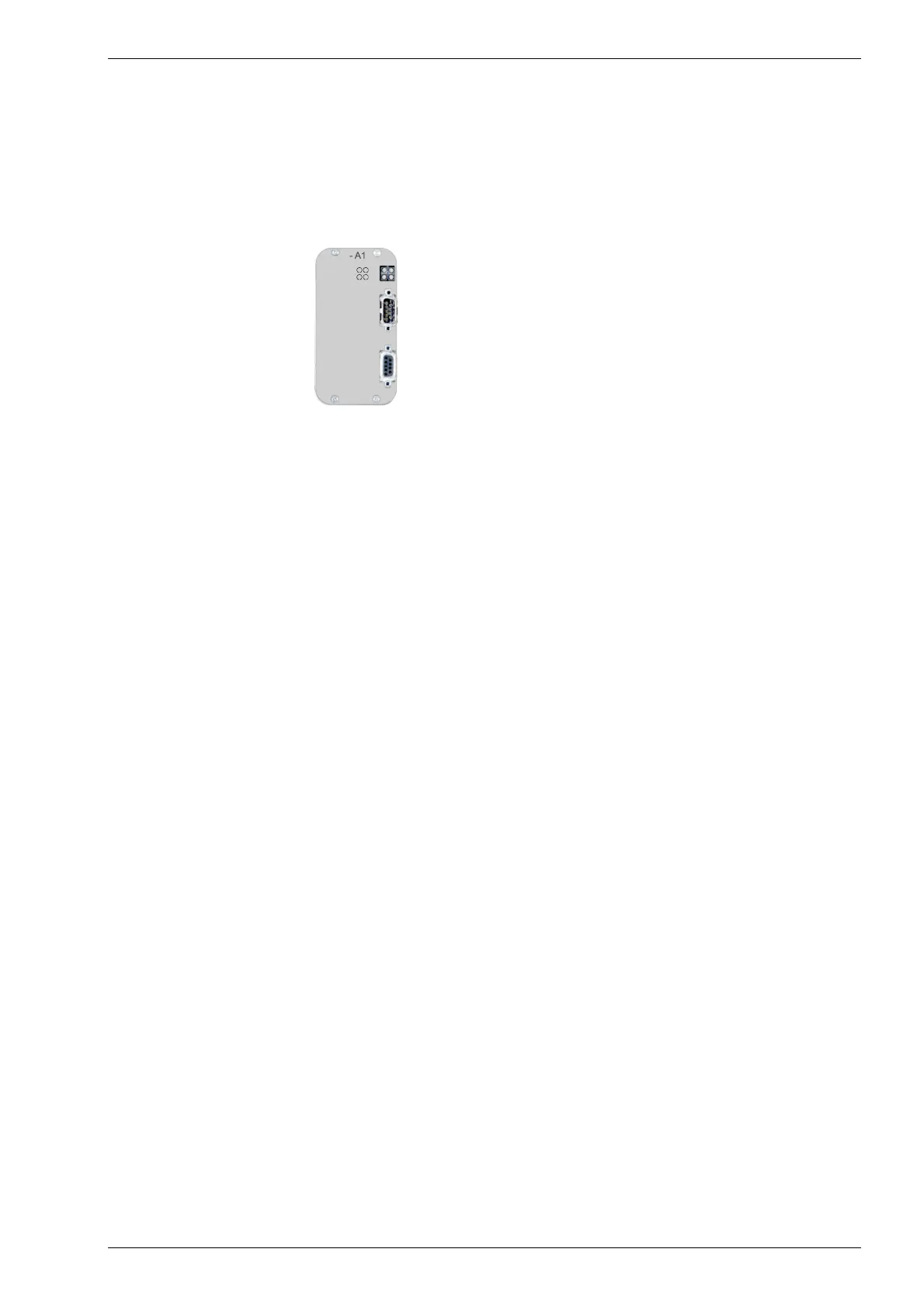

Short description
2VF100308DG00.cdr
Performance characteristics overview
• PROFIBUS DP master bus module
• Max. of 125 slave nodes can be connected
• Max. 3 KB process data
(1536 byte input and 1536 byte output data
• Baud rates: 9600 bit/sec. - 12 MB/sec.
• Potential isolated PROFIBUS MASTER RS485 interface with integrated
DC/DC converter and optocouplers
• Cyclic DP master services.
Standard delivery The standard delivery comprises:
• PROFIBUS MASTER card installed in the DIALOG CONTROLLER.
Indicators
X1
Diag.
X2
Profi bus
DC Profi bus-DP M
Databa se
Comm.
Master Token
2
1
3
4
