ENGLISH
EV EV
24 Vac
J10
F2
J9J7J5
J2
F1
F3
DL
SW1
J13
F

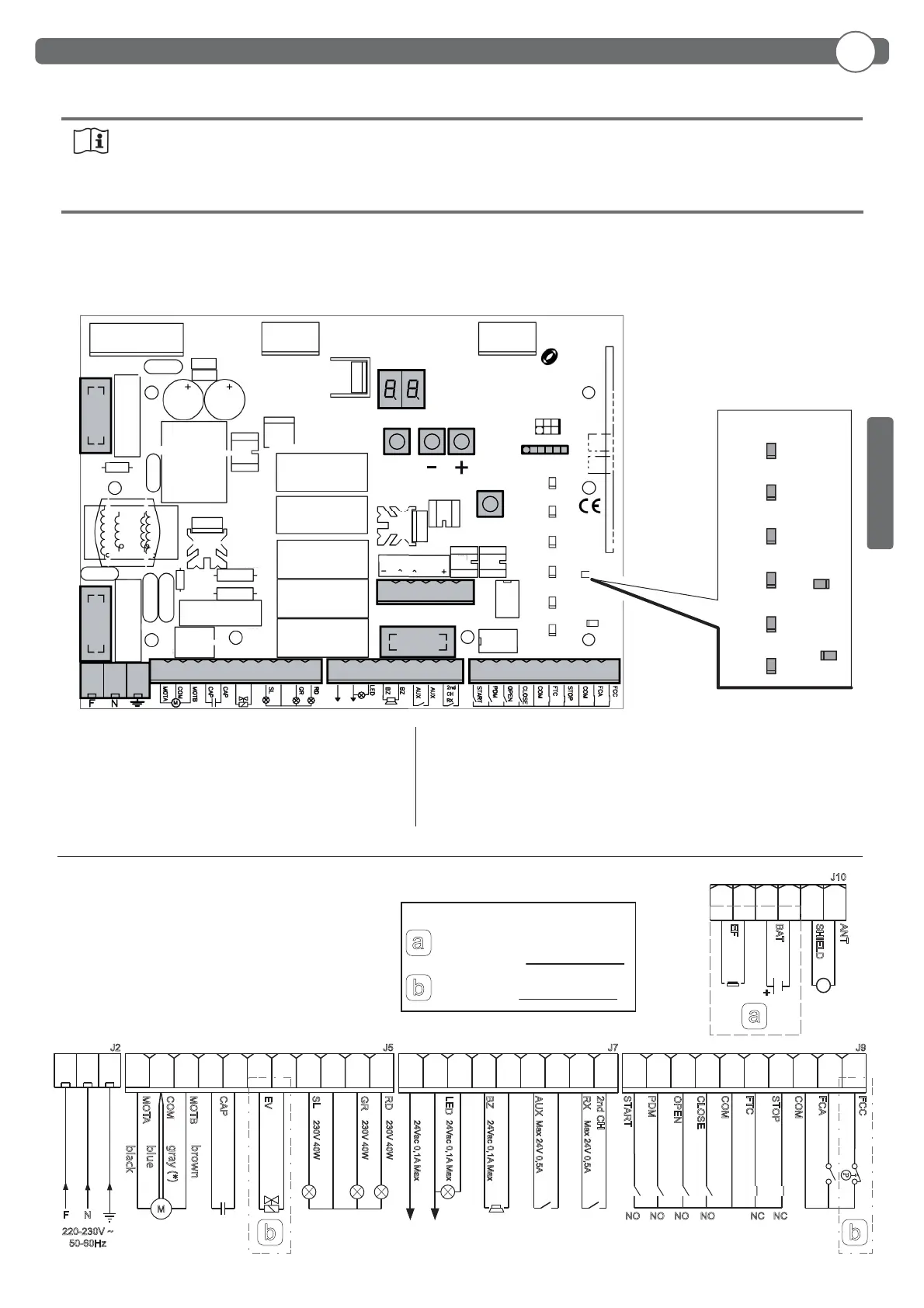

The control unit has been developed to control automatic bollards.
1. INTRODUCTION
2. MAIN CHARACTERISTICS
J2: 230Vac terminal board
J5: Power terminal board
J7: Outputs/accessories power supply terminal block
J9: Input/output terminal board
J10: Electrical brake/antenna terminal board
J13: Programmer connector
DL: 2-digit display
SW1: “START” control button
F1: Line fuse: 5x20 8A T
F2: Accessories and outputs fuse: 5x20 1A T
F3: Low voltage fuse: 5x20 500mA T
F,+,-: Programming push buttons
LED
FCA
FCC
STOP
CLOSE
OPEN
PDM
START
FOTO
- Microprocessor logic
- LEDs displaying input status
- Integrated radio receiver 433Mhz; 2048 codes
- 2-digit display
- Con gurable outputs
- PROGRAMMER connector
-
TERMON
