- 23 -
Control unit
EN
- Before sending a command to the automation, make sure to have selected correctly the type of bollard as follows:
Bollard selection
- Hold down buttons F and + for 2 seconds to select the connected bollard.
- Select the type of bollard using the buttons +/-.
- Press F and + to con rm.
- Select network frequency through Ht parameter. (see 3rd level programming).
- (GRIZZLY / OAK 800.4 only) Select the pressure switch type with the parameter (see 3rd level programming).
- Check the connection method for simultaneous operation, if controlling multiple deterrent devices simultaneously (see paragraph 9).
GRIZZLY Ø273-600
EASY Ø115-500
DK Ø210-500
GRIZZLY Ø273-800 / OAK 800.4
EASY Ø200-700
DK Ø210-700
GRIZZLY Ø273-600/SCT
DEFENDER Ø273-700
DK/500V
GRIZZLY Ø273-800/SCT / OAK 800.4/SCT
DEFENDER Ø273-700A
DK/700V
DKN Ø220-500
DK/E-V
DKN Ø220-700
DK/E-S
Electrovalve (230Vac) only GRIZZLY / OAK 800.4
ENGLISH
LINE 230V
230V 50/60Hz power supply with mov internal protection and 8A T fuse (5x20).
Connect the phase and neutral as shown on the screen printing. Use a cable type H07RN-F 2x1.5+E min.
Connect the yellow/green wire of the power supply mains to the earth terminal of the appliance.

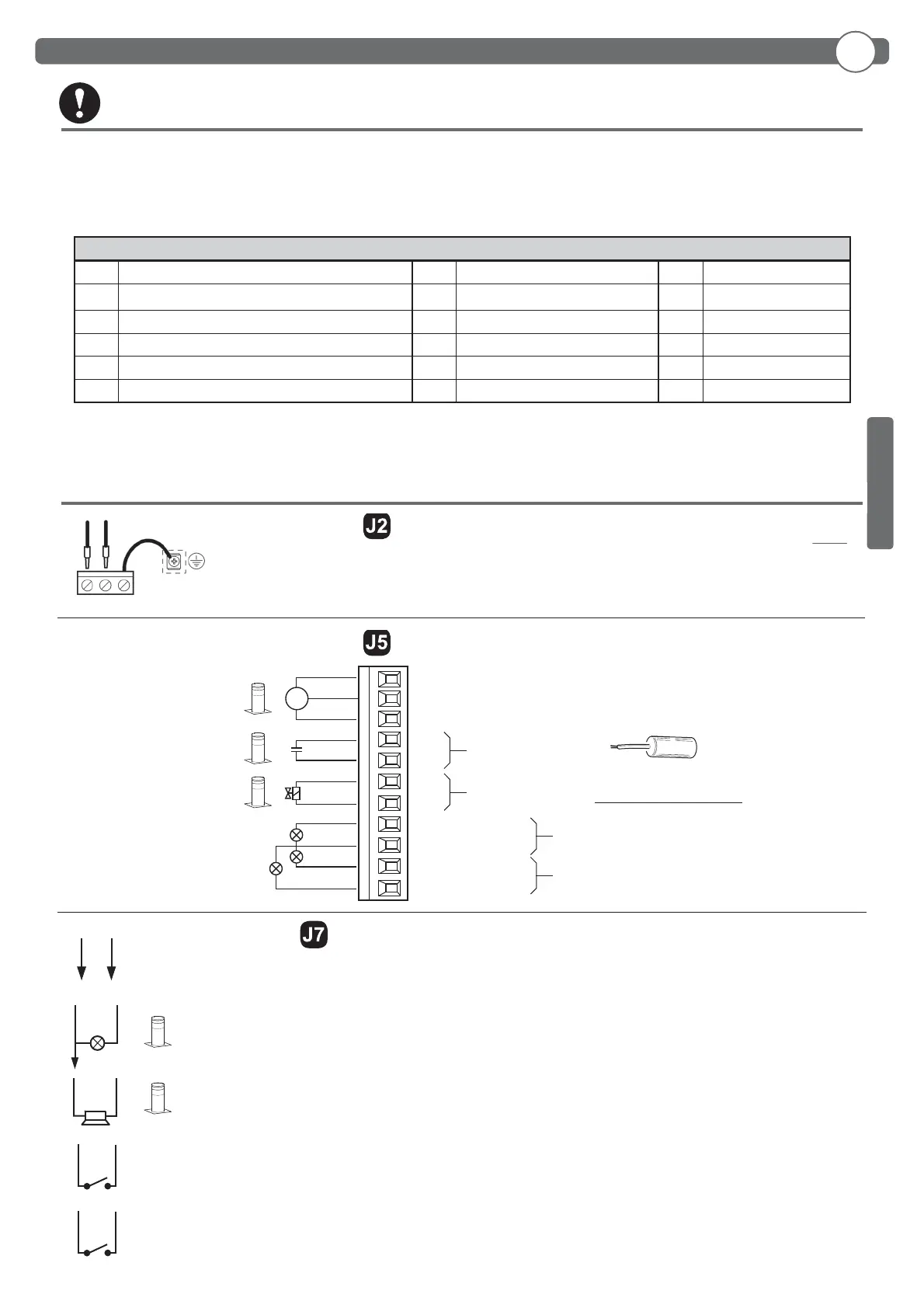

6. INPUT AND OUTPUT FUNCTIONALITY AND CONNECTIONS
6.3 OUTPUTS/ACCESSORIES TERMINAL BLOCK
6.2 POWER TERMINAL BLOCK
L
NE
2nd
CH
RX
24 Vac
LED
24 Vac
BZ
BZ
AUX
AUX
MOTA
COM
MOTB
CAP
EV
CAP
EV
SL
GR
RD
M
MOTA/APERTURA
MOTB/CHIUSURA
Flashing light (230Vac)
Tra c light (230Vac)
CAP
CAP
EV
EV
SL (Flashing light)
SL COM
GR (green light)
RD (red light)
COM
6.1 POWER TERMINAL BLOCK
5. PRELIMINARY OPERATION
BOLLARD TABLE
Motor capacitor
(Supplied with bollard)
OUT24
Output 24Vac, 1A MAX
LED (Cover lights)
Self-powered output. 24Vac, 100mA max
BZ (Cover buzzer)
Self-powered output. 24Vac, 100mA max
AUX
Programmable volt-free relay output, max. 500mA, 24Vac/dc. Use parameter -lev. 2 for con guration.
2nd CH RX
Free contact relay output; 500mA max, 24Vac/dc
