- Connect the N.O. contact of the coil receiver S1 to the OPEN input.
- Connect the N.O. contact of the S2 loop receiver to input CLOSE.
- The dimensional values of the loops are only approximate.
We suggest installing the “MAK-2” metal mass detector.
*
ENGLISH
DIMENSIONS
This solution is recommended when you want to allow entry to a reserved area, entering or leaving without using the recognition commands,
allowing transit of vehicles in just one direction.

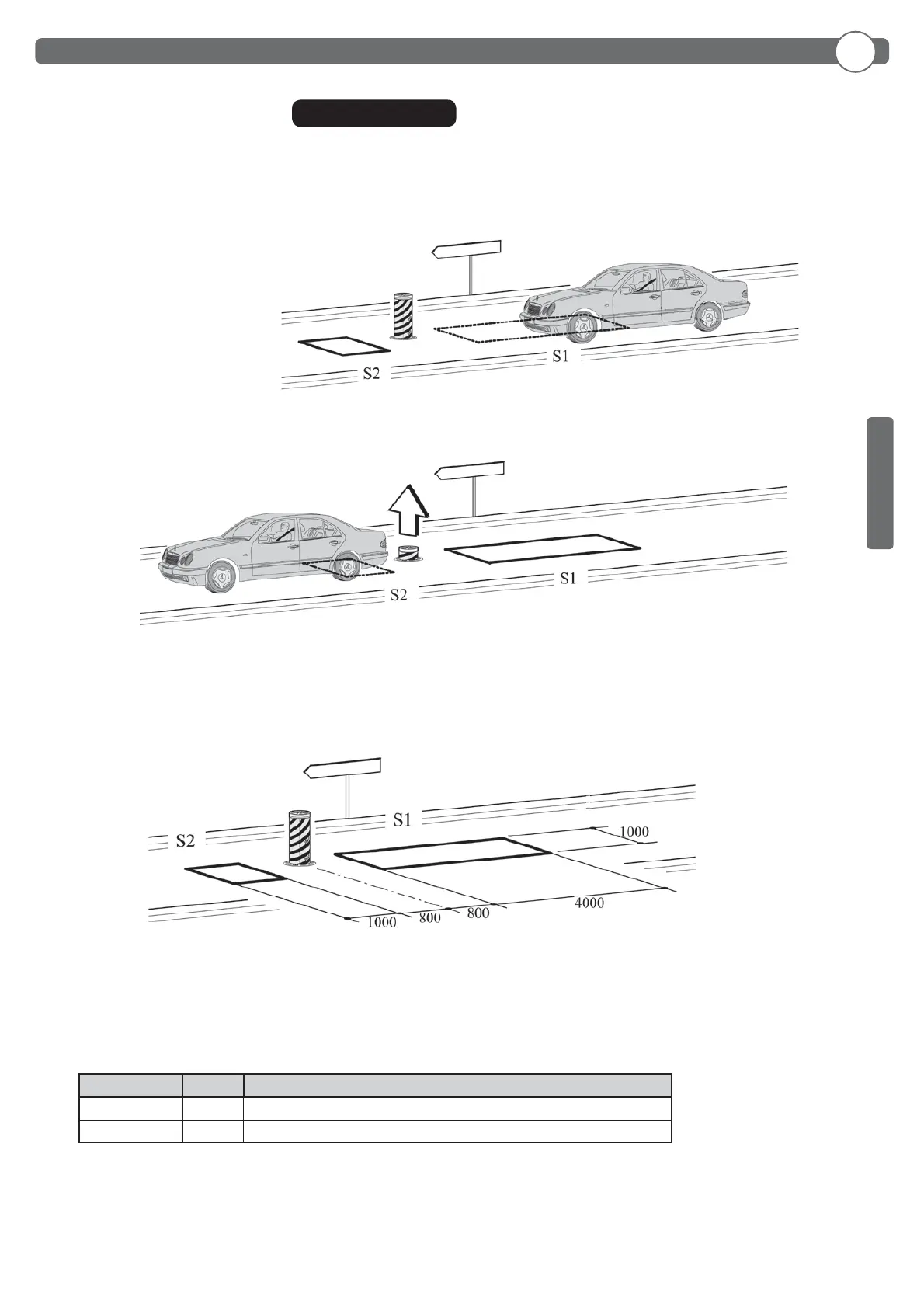

The vehicle approaches the reser-
ved area.
Occupying the coil S1 activates bol-
lard’s descent.
When the vehicle is no longer on
loop S2 the will move back up.
Loops S1 and S2 also have a safety function in that they will not let the device move all the time the vehicle is on top.
12.2
INSTALLATION B
AUTOMATIC ENTRY OR EXIT
ONE DIRECTION
ONE DIRECTION
ONE DIRECTION
PARAMETER DATA DESCRIPTION
The close command acts as a release closing and safety function.
Radio channel 1: Disabled
