7. PROGRAMMING
7.1 BASIC FUNCTIONS
F
-+
F
F
2
nd
level
 
=bollard closed
F
F
F
F
F
F
F
F
F
F
F
FF+
+
+
+
-
-
-
+
+
+
+
+
+
+
+
x 2”
x 2”
x 5 x 3x 4
1st level
programming
Selects each single
1st level function
(see table par.6.2)
Selects each single
2nd level function
(see table par.6.3)
Selects each single
3rd level function
(see table par.6.4)
Changes the values
of each single 1st
level function
(see table par.6.2)
Changes the values
of each single 2nd
level function
(see table par.6.3)
Changes the values
of each single 3rd
level function
(see table par.6.4)
“ST” function
Exit and save
programming
2nd level
programming
3rd level
programming
Selecting Output2 on bollard closed:
A
B
C D
E
Example:

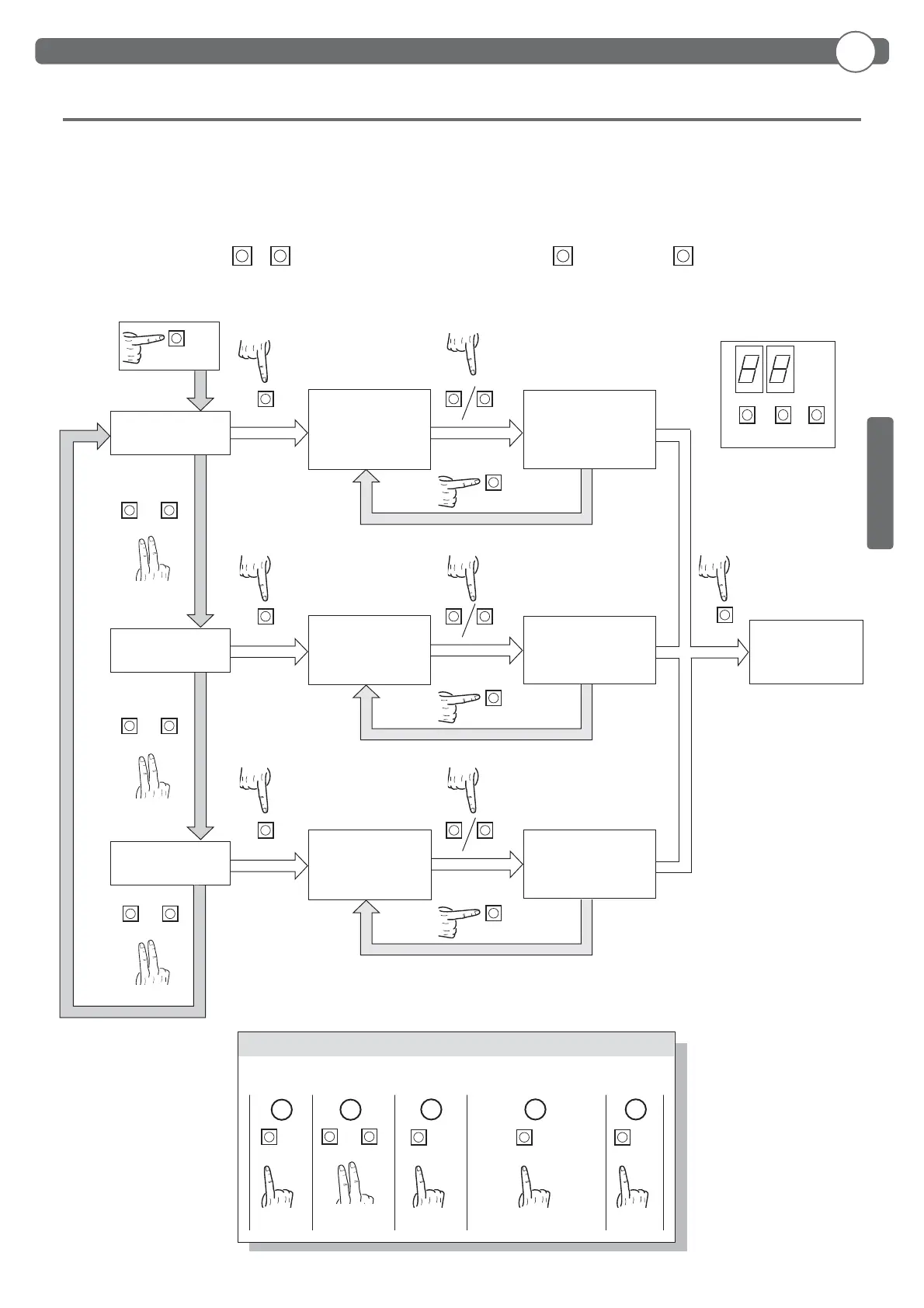

To access programming, press button F for 2 seconds.
Programming is divided into 3 levels.
To go to the next level keep key F pressed and press the + key (Sequence 1-2-3-1.......).
After selecting the level wanted, press push button F to display the functions available in consecutive order. Each time F is pressed it corre-
sponds to a function ( -  -  - .....)
With the function set, use the
+
or
-
key to change the values of the parameters (
+
: ---... /
-
: ...---).
The changes made to the parameters are active immediately but will be saved when exiting the menu, selecting the ST function with key F.
PLEASE NOTE: If there is a black out when programming, all changes will be lost.
