September 2021
Installation, Operation and Maintenance Manual
VCIOM-01249-EN Rev. 0
88
View Routines
Section 10: View Routines
Data logger modes:
• OFF: the data logger is not active.
• RECORDER mode: the F01-2000 measures and memorizes the following 3 data:
— Main voltage supply (V)
— Motor temperature (°C)
— Temperature inside the compartment of electronics (°C)
• T-RECORDER mode: the F01-2000 measures and memorizes the following 3 data:
— Torque in OP/CL
— Motor temperature (°C)
— Voltage
In RECORDER and T-RECORDER mode the SAMPLING TIME xes the time interval among
two sets of measures. Up to 256 sets of measures (equivalent to 256x4 samples) can be
memorized. The sampling time can be congured from 1 to 3600 s. As the memory is full,
the recorder stops recording or overwrites the previous data according to the selected
MEMORY MODE (“stop when full” or “continuous”). If “continuous” was selected, as a
new set of measures is achieved the oldest one is cancelled and the new one becomes the
latest. Up to 10000 cycles of full memory overwriting are done, then the recorder stops.
In T-RECORDER mode, the recording operation is also stopped in case of OVER-TORQUE
ALARM, in opening or in closing. This additional feature allows to maintain in the memory
the last 256 samples and see the trend of torque, motor temperature and main voltage
before the alarm. A new start of T-RECORDER clears the data stored in the memory. By a
PDA or PC the recorded data can be viewed by a graph where time is on the X axis and the
measured data on the Y axis.

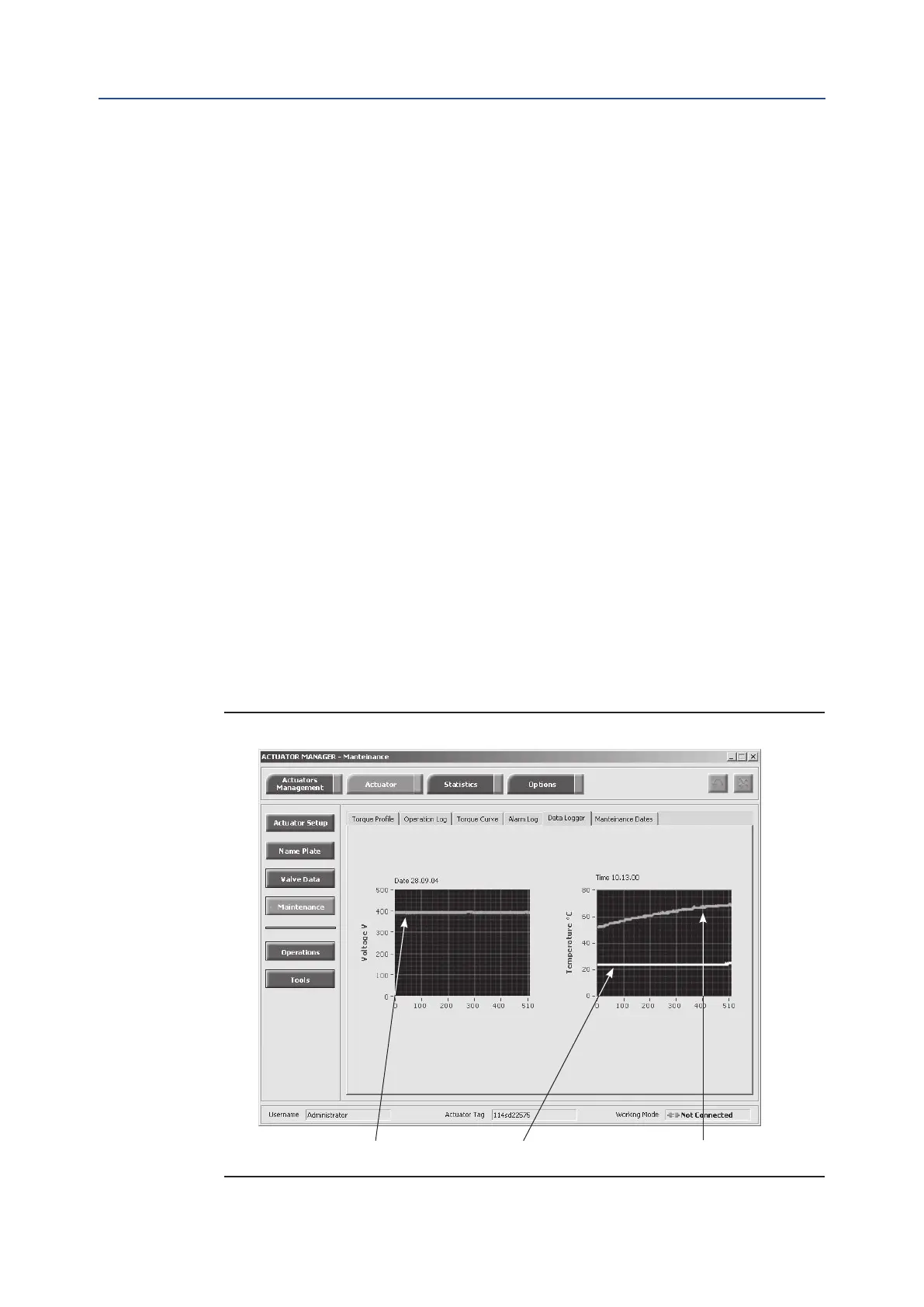

Figure 53 shows a graph with sampling time 2 s in RECORDER mode.
Figure 53
Main supply voltage Temperature of electronics Motor temperature
