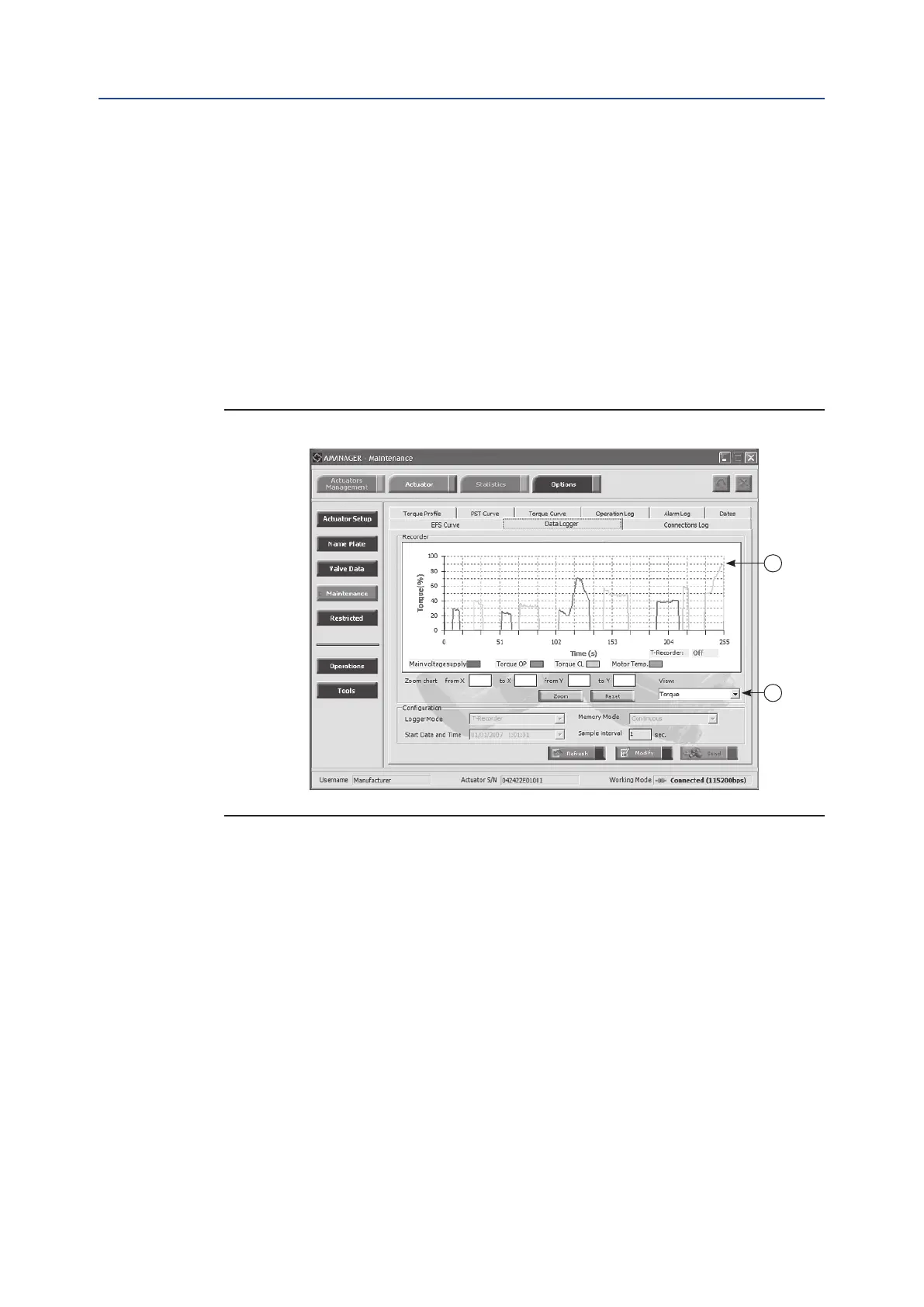

Figure 54 shows a graph with sampling time 1 sec in T-RECORDER mode after a recording
stop for OVER-TORQUE alarm:
1. Torque limit in OP reached
2. Curve selector:
— Torque
— Motor temperature
— Main voltage
Torque limit in CL is set to 90%, torque limit in OP is set to 100%. Blue graph shows
Torque OP versus time, yellow graph shows Torque CL versus time. The data remain in the
F01-2000 v4 permanent memory until a new start of data logger is set.
