Installation, Operation and Maintenance Manual
MDE 254 Re
v
. 1
HART Module
4
Section 4: HART Module
Sec
tion 4:
HAR
T Module
The module consists in a single PCB tha
t is installed inside the actuator hou
sing. It is connected to the
ICO
N
3000 base car
d via strip connector
.
The inte
rnal wiring connects the HART d
ata lines to the actuat
or termin
al board.

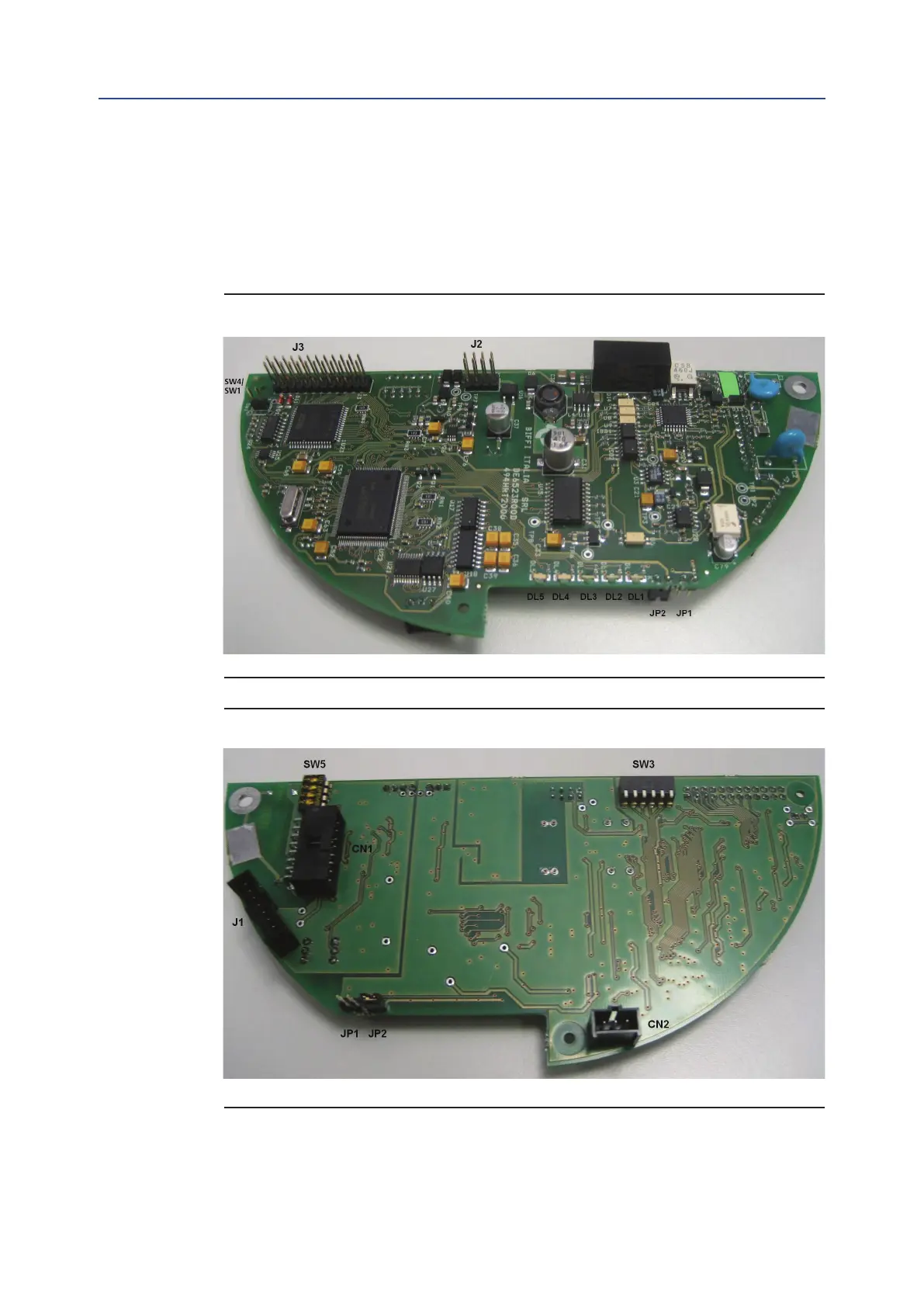

Figure 1
T
op Side
Figure 2
Bottom Side
9
11
Table of Contents
Default Chapter
3
Table of Contents
3
Section 1: Introduction
7
Introduction
7
Section 2: Operation and Storage
8
Operation and Storage
8
Section 3: Communication Features
9
Communication Features
9
Section 4: HART Module
10
On Board Indications and Jumpers
11
On Board Settings
11
Analogue Control Signal
12
Process Variables
12
Section 5: HART Protocol Previews
13
HART Wirings
14
Section 6: Wiring and Installation
16
Cable Length
16
Shielding and Grounding
16
Section 7: HART Commands
17
HART Commands
17
Section 8: HART Command Set
19
Universal Commands
19
Command #0: Read Unique Identifier
19
Command #1: Read Primary Variable
20
Command #2: Read Loop Current and Percent of Range
21
Command #3: Read Dynamic Variables and Loop Current
21
Command #6: Write Polling Address
22
Command #7: Read Loop Configuration
23
Command #8: Read Dynamic Variable Classifications
23
Command #9: Read Device Variables with Status
24
Command #11: Read Unique Identifier Associated with Tag
26
Command #12: Read Message
27
Command #13: Read Tag, Descriptor, Date
27
Command #14: Read Primary Variable Transducer Information
28
Command #15: Read Device Information
28
Command #16: Read Final Assembly Number
29
Command #17: Write Message
29
Command #18: Write Tag, Descriptor, Date
30
Command #19: Write Final Assembly Number
31
Command #20: Read Long Tag
31
Command #21: Read Unique Identifier Associated with Long Tag
32
Command #22: Write Long Tag
33
Command #38: Reset Configuration Changed Flag
33
Command #48: Read Additional Device Status
34
Common Practice Commands
36
Command #42: Perform Device Reset
36
Command #54: Read Device Variable Information
37
Command #59: Write Number of Response Preambles
38
Command #95: Read Device Communication Statistics
38
Command #103: Write Burst Period
39
Command #104: Write Burst Trigger
40
Command #105: Read Burst Mode Configuration
41
Command #107: Write Burst Device Variables
42
Command #108: Write Burst Mode Command Number
43
Command #109: Burst Mode Control
44
Catch Device Variable
44
Device Specific Commands
45
Command #129: Write Device Variable Value
45
Command #130: Read Array
46
Command #131: Write Array
46
Common Tables
47
Section 9: Device Variables
51
List of Device Variables
51
Device Variable Status Byte
52
Device Variable 0: Commands
53
Device Variable 1: Actuator Status (1)
54
Device Variable 2: Actuator Status (2)
55
Device Variable 3: Position Request
56
Device Variable 4: Dead Band
56
Device Variable 5: Motion Inhibit Time
56
Device Variable 6: Actuator Alarms (1)
56
Device Variable 7: Actuator Alarms (2)
57
Device Variable 8: Actuator Warnings
57
Device Variable 9: al - Opening Time
58
Device Variable 10: al - Closing Time
58
Device Variable 11: ESD Action
58
Device Variable 12: ESD Percent
58
Device Variable 13: 2SP - Close Direction Status
58
Device Variable 14: 2SP - Close Direction Start Position
58
Device Variable 15: 2SP - Close Direction Stop Position
59
Device Variable 16: 2SP - Close Direction on Time
59
Device Variable 17: 2SP - Close Direction off Time
59
Device Variable 18: 2SP - Open Direction Status
59
Device Variable 19: 2SP - Open Direction Start Position
59
Device Variable 20: 2SP - Open Direction Stop Position
59
Device Variable 21: 2SP - Open Direction on Time
60
Device Variable 22: 2SP - Open Direction off Time
60
Device Variable 23: Fail Safe Action
60
Device Variable 24: Fail Safe Delay
60
Device Variable 25: Fail Safe Position
60
Device Variable 26: Power Supply Type
60
Device Variable 27: Power Supply Voltage
61
Device Variable 28: Power Supply Frequency
61
Device Variable 244: Percent Range
61
Device Variable 245: Loop Current
61
Device Variable 246: Primary Variable
61
Device Variable 247: Secondary Variable
61
Device Variable 248: Tertiary Variable
61
Device Variable 249: Quaternary Variable
61
Section 10: Array Codes
62
Array Codes
62
Section 11: Configuration Via Local Interface of ICON3000
63
BUS Control
63
Positioner Function
64
Fail Safe Function
65
Viewing Transmission Info
66
Actuator Terminal Board
66
Bus Signal Failure Indication
67
Section 12: Certificate of Registration
68
Certificate of Registration
68
Appendix A: HART Command 3 Communication Example
69
HART Command 3 Communication Example
69
Appendix B
71
Multiple Functionality of ESD Command and Status
71
Multiple Functionality of Interlock Command and Status
72
