Conguration of ICON3000 61
Section 11: Configuration of ICON3000
11.6 Bus Signal Failure Indication
In case of loss of 4 - 20 mA signal, a warning is generated. It is signalled by the flashing of the relevant
ALARM / WARNING LED and by indication on the local 2 lines /16 characters display.

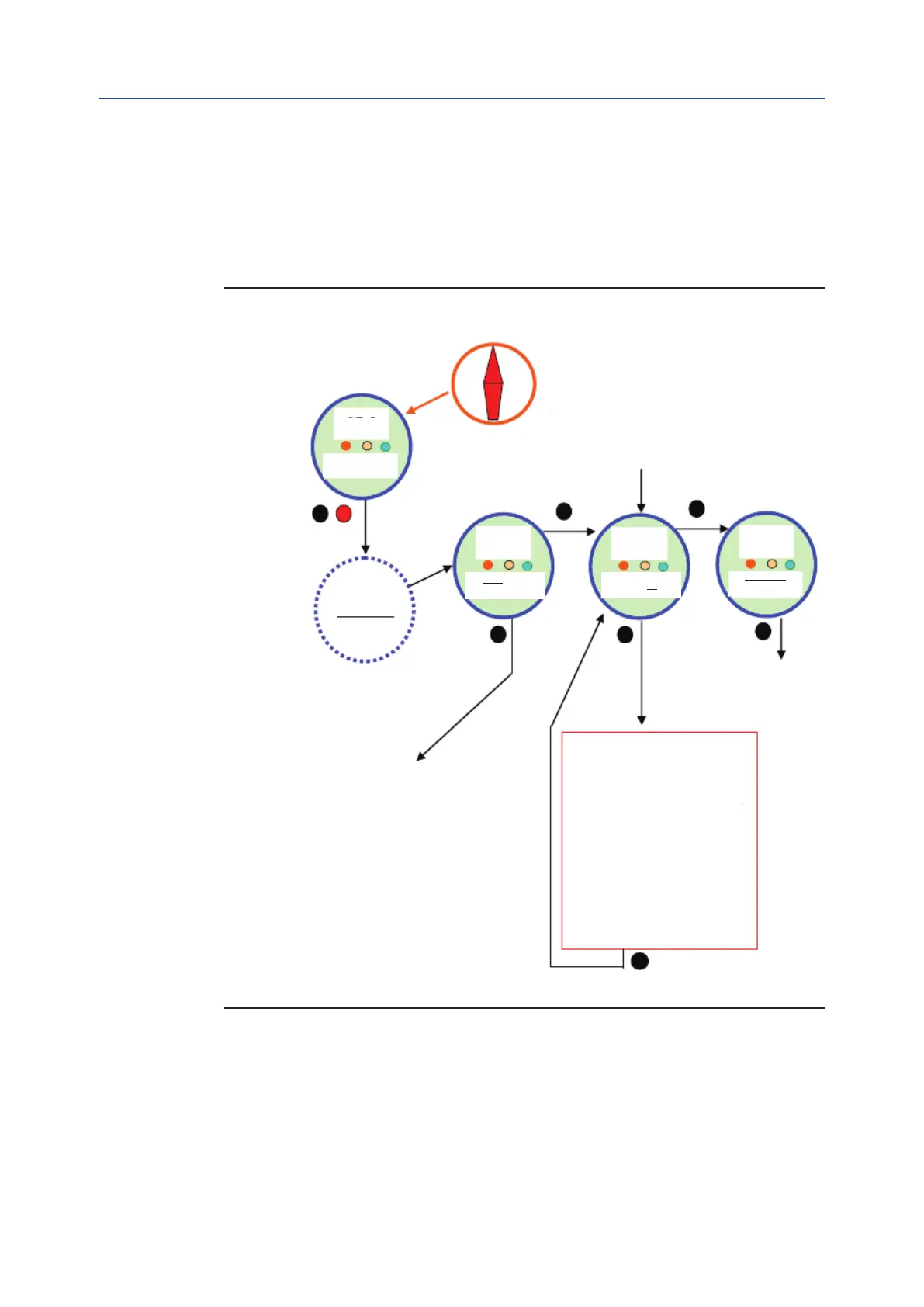

The Figure below shows the list of routines available in the ICON3000 view or setup menu.
Figure 10
?
37.5
37.5 37.5
37.5
REMOTE
MODE
OK?
AC TUATOR
SETUP
?
xxxxxxx
R: 36.0%
OFF
next?
LOCAL
YES STOP
Display
3-position selector
OFF
YES
NO
NO
YES
YES
1. The routine Out 4 - 20 mA is present
only if the relevant I/O module is
present on the base card.
Routines:
• Stroke limits view?/change?
• Torque set-up view?/change?
• ESD set-up view?/change?
• Remote controls view?/change?
• Local controls view?/change?
• Output relays view?/change?
• Fail safe view?/change?
• Out 4 - 20 mA view?/change?
• Interlock view?/change?
• Positioner view?/change?
• 2-speed timer view?/change?
• BUS control view?/change?
• Miscellaneous view?/change?
NO
