March 2021
Installation, Operation and Maintenance Manual
MDE 254 Rev. 1
Conguration of ICON300060
Section 11: Configuration of ICON3000
11.4 Viewing Transmission Info
The following procedure allows seeing the most significant info relevant to the bus data
transmission:
• Move the local selector to OFF or REMOTE and then press YES until the display shows NODE
REPORT. Press NO to exit or press YES to scroll the list of transmission info.
64 Byte: Information about the HRT2000v4 Interface
Config. change: Configuration changing counter
STX: Number of valid messages transmitted (max before counter reset 65535).
ACK: Number of valid messages received (max before counter reset 65535)
BACK: Number of valid Burst messages transmitted (max before counter reset 65535)
NODE RESET: Not Used

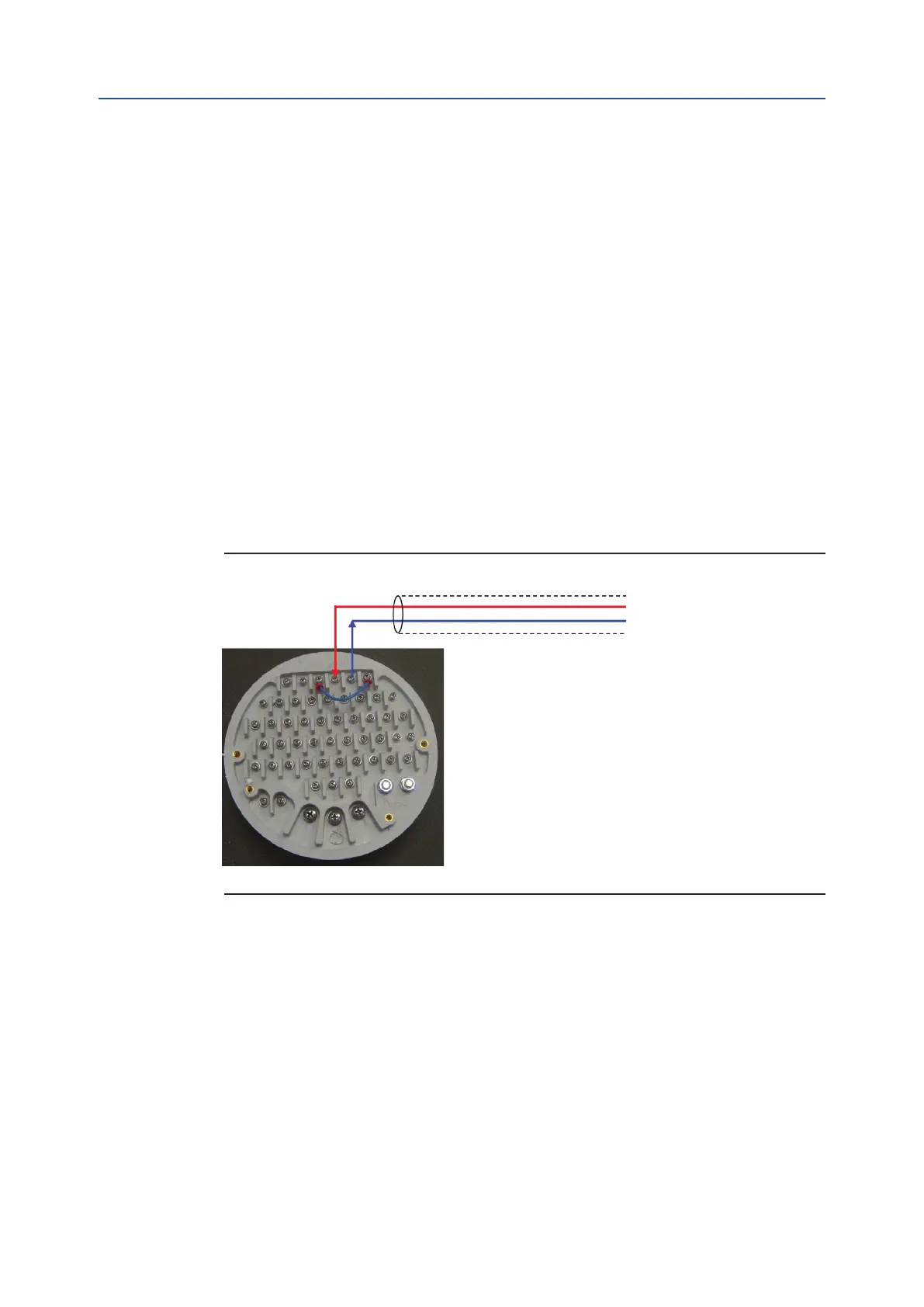

11.5 Actuator Terminal Board
Figure 9
To terminal A4 input HART+ 4 - 20 mA+
To terminal A5 input HART - 4 - 20 mA-
shield
Make a jumper between
terminals A3 and A6
To Next Page
