Step 9: Cafe Wall Assembly
Part 1
Note: Keep all bolts loose in this step.

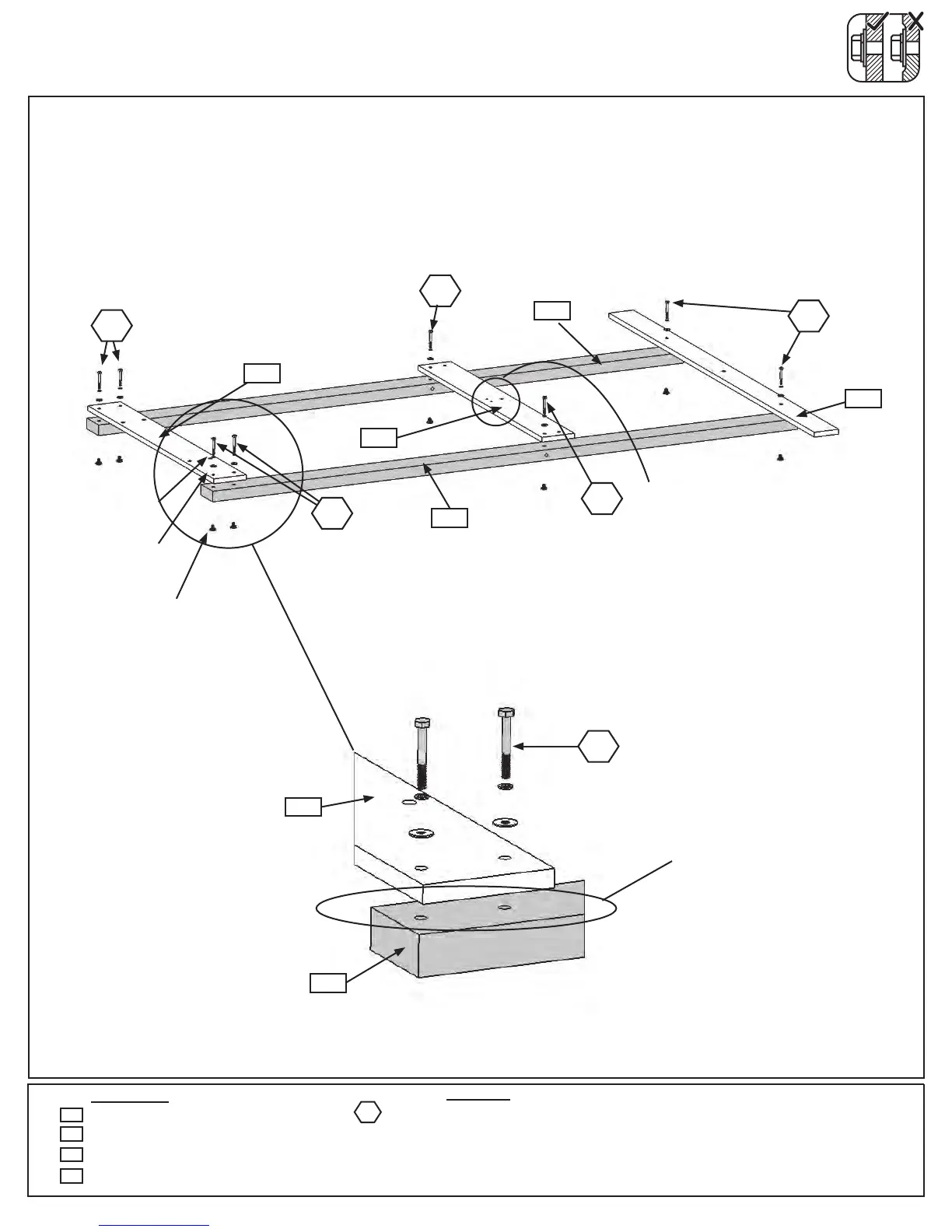

A:Onthegroundlayat2(1931)Poststhenattach(2036)CafeGroundwith4(H2)1/4x2”HexBolts(withlock
washer,atwasherandt-nut);(2032)EndFloorusing2(H2)1/4x2”HexBolts(withlockwasher,atwasher
andt-nut)inthebottomholes;and(2030)SideRoofusing2(H2)1/4x2”HexBolts(withlockwasher,at
washerandt-nut)asshowning.9.1and9.2.Notice the hole locations in (2032) End Floor.
Notice the hole
locations of (2032)
End Floor
Notice bolt holes
at bottom of posts
Fig. 9.1
Fig. 9.2
Wood Parts
Hardware
2032
H2
H2
H2
H2
H2
1931
1931
2036
2030
1/4”Flat
Washer
1/4”Lock
Washer
1/4”
T-Nut
1931
2036
H2
8 x 1/4 x 2” Hex Bolt (1/4” lock washer, 1/4” at washer, 1/4” t-nut)
2 x Post 2 x 4 x 81”
1 x Side Roof 1 x 4 x 58-1/2”
1 x End Floor 1 x 5 x 35-1/4”
1 x Cafe Ground 1 x 5 x 35-7/8”
1931
2030
2032
H2
2036
