4.2 Mounting the flexible tilt protection kit – KB 400 (E6)
KB size 400 liters should be equipped with the supplied flexible tilt protection kit in addition to the spacers
for wall distance (chap. 4.1).
Scope of delivery:
• 4 Torx screws (spare parts)
• 4 tilt protection holders
• 4 securing straps (2 spare parts)
Mounting on device side:
• Remove two screws on the upper part of the rear wall (a)
• Fix two of the supplied tilt protection holders, each centrally with one of these screws (b).
Mounting on wall side
• Fix two of the supplied tilt protection holders in the appropriate distance, each with two screws Ø 6mm
suitable for the wall (c)
Connection with the securing straps
• On each side, thread one of the supplied securing straps through the provided slots of a device side
and a wall side tilt protection holder

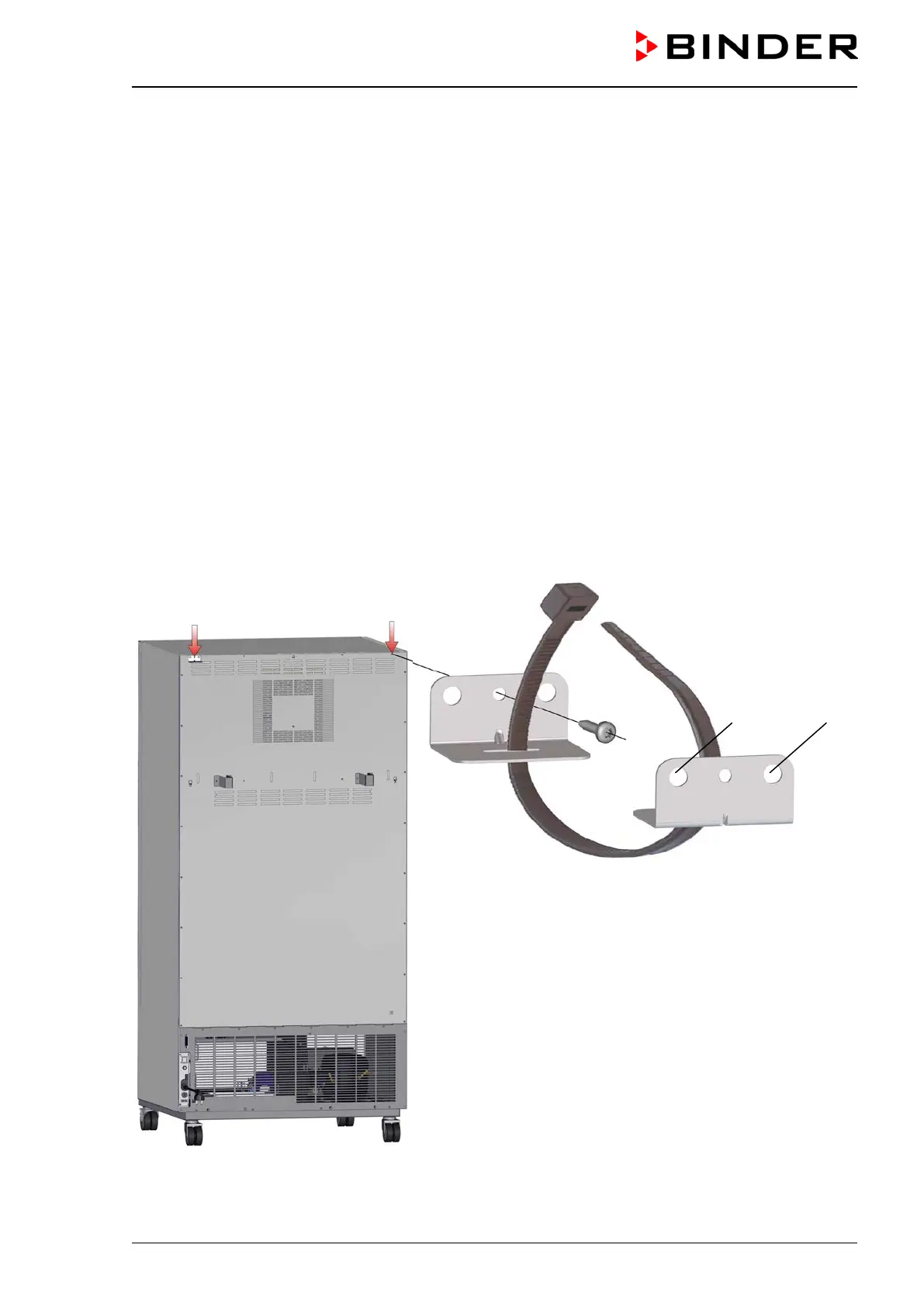

Figure 11: Rear KB 400 and mounting the flexible tilt protection kit
(a)
(a)
(b)
(c) (c)
