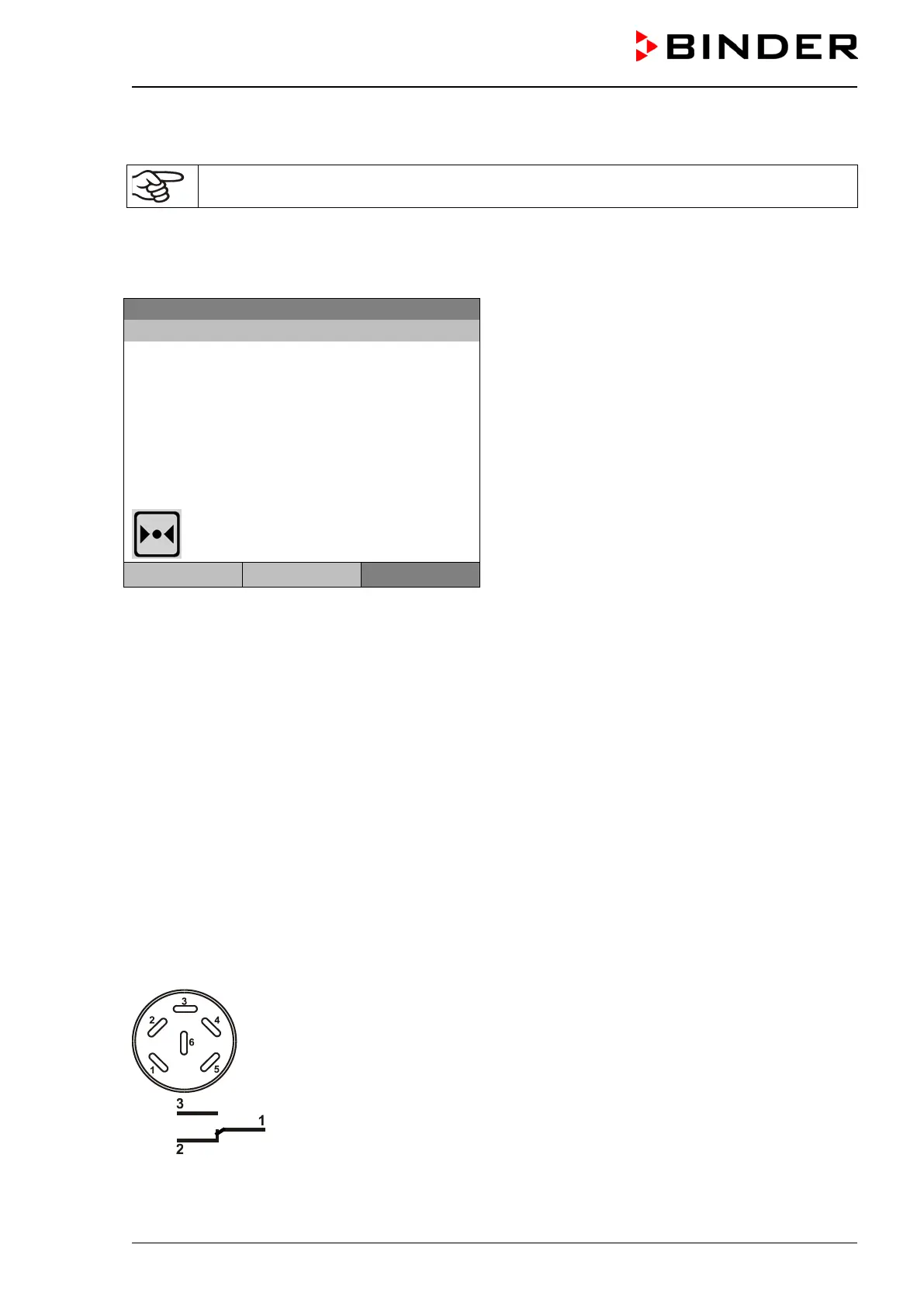

19.4 Object temperature display with flexible Pt 100 temperature sensor (option)
You can turn on and off the object temperature display via the controller menu (chap. 7.4).
The object temperature display enables the determination of the actual temperature of the charging mate-
rial during the whole process. The object temperature is measured via a flexible Pt100 temperature sen-
sor and can be viewed at the controller display. You can immerse the sensor top protective tube of the
flexible Pt 100 into liquid substances.
08.03.2015 05:05:06
Initial view with object temperature display
(sample values)
Temperature [°C]
Fan [%]
Obj. Temp [°C]
User Quick menu
Menu
The object temperature data are put out together with the data of the temperature controller and can be
documented by the communication software APT-COM™ (option, chap. 19.1) developed by BINDER.
Technical data of the Pt100 sensor:
• Three-wire technique
• Class B (DIN EN 60751)
• Temperature range up to 320 °C / 608 °F
• Stainless steel protective tube with a length of 45 mm / 1.78 in, material no. 1.4501
19.5 Zero-voltage relay alarm output (may be available via BINDER INDIVIDUAL
Customized Solutions)
With this option the chamber is equipped with a zero-voltage relay alarm contact which serves to transmit
alarms to a central monitoring facility.
The connection is realized as a DIN socket. A suitable DIN plug is enclosed.
With KB (E4) 53, 115 the DIN (6) socket is located on the chamber rear:
With KB (E6) 240, 400, 720, the DIN socket (6) is located in the right lateral control panel.
Figure 13: Pin configuration of the DIN socket (6)
ALARM
Pin 1: Pole, Pin 2: Break relay, Pin 3: Make contact
In case there is no alarm, contact 1 closes with contact 3.
Closing contact 1 with contact 2 switches the zero-voltage relay alarm output.
