Handheld monitor user’s manual
Chapter 6-6
2.
Electrode Placement
Take the AHA standard as an example, when conducting
3-lead ECG monitoring, use 3-lead ECG cable. The three
limb-leads of RA, LA and LL as shown in below figure, will
be placed on the relevant locations. This connection can
establish the lead of I, II, III.

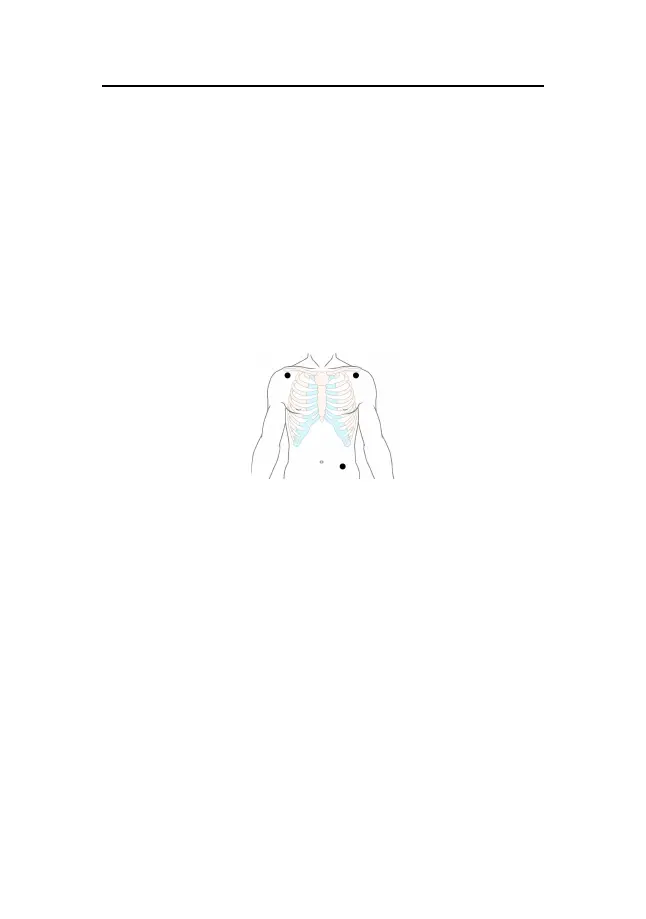

Fig 6-1 Electrode placement
3.
The following table shows the ECG electrode label to
identify each electrode and its associated color of AHA
and IEC standards.
