2: Remove the Carrier Shipping Hardware | 7
2: Remove the Carrier Shipping Hardware
The Epoch is shipped with shipping hardware that must be
removed before the reader is used, and saved in case the instrument
needs to be repackaged for shipment. See Figure 1.
1. Using a screwdriver, remove the shipping screw (PN 19502) and o-ring (PN
19608) assembly.
2. Using your fingers, remove the rubber plug (PN 19610).
3. Install the plug in the hole where the shipping screw was originally located,
and insert the screw and o-ring in the hole where the plug was originally
located. See Figure 2
The plug prevents light from entering the test chamber during
operation.
Shipping screw
and o-ring
Plug

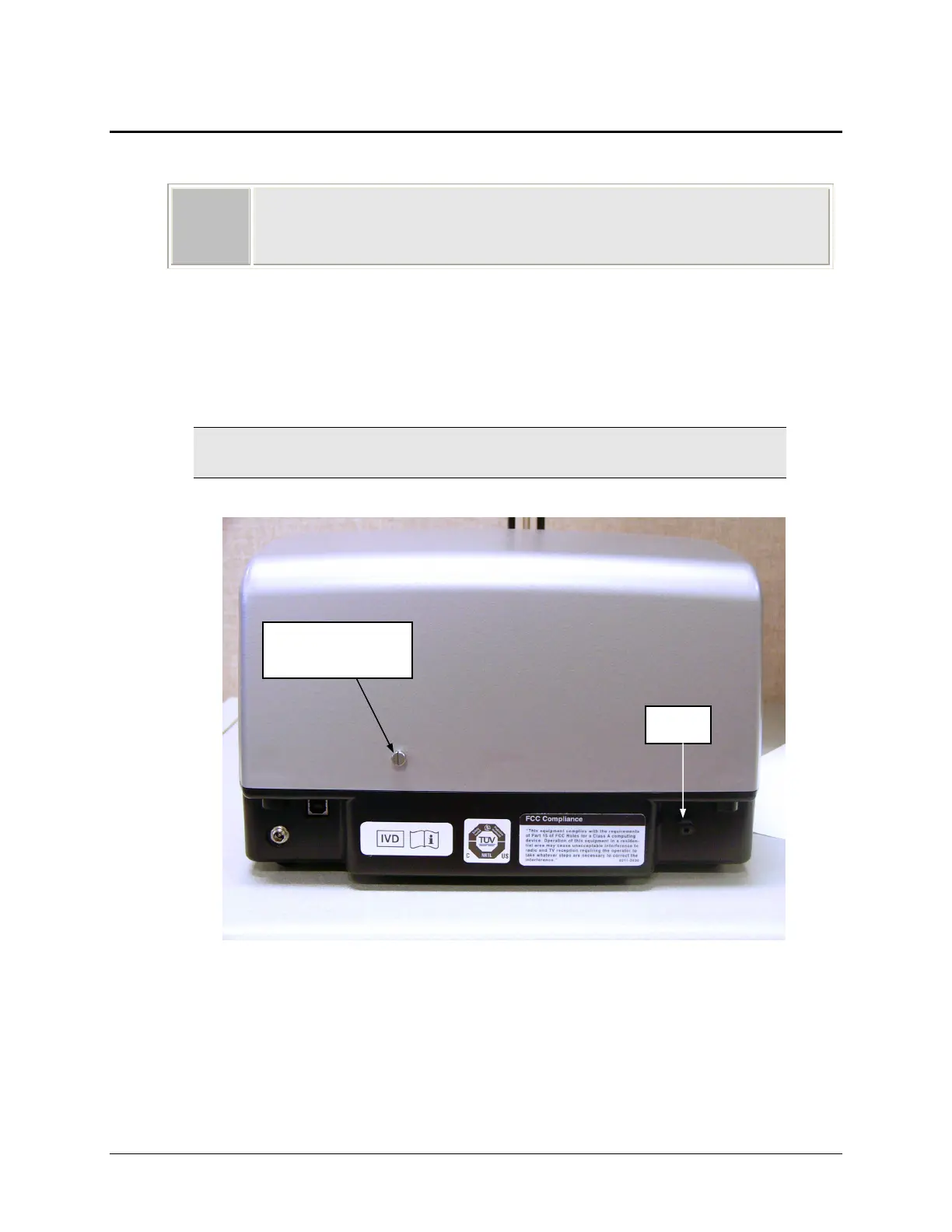

Figure 1: Shipping screw, o-ring, and plug in shipping position
