Technical Tip
A-15

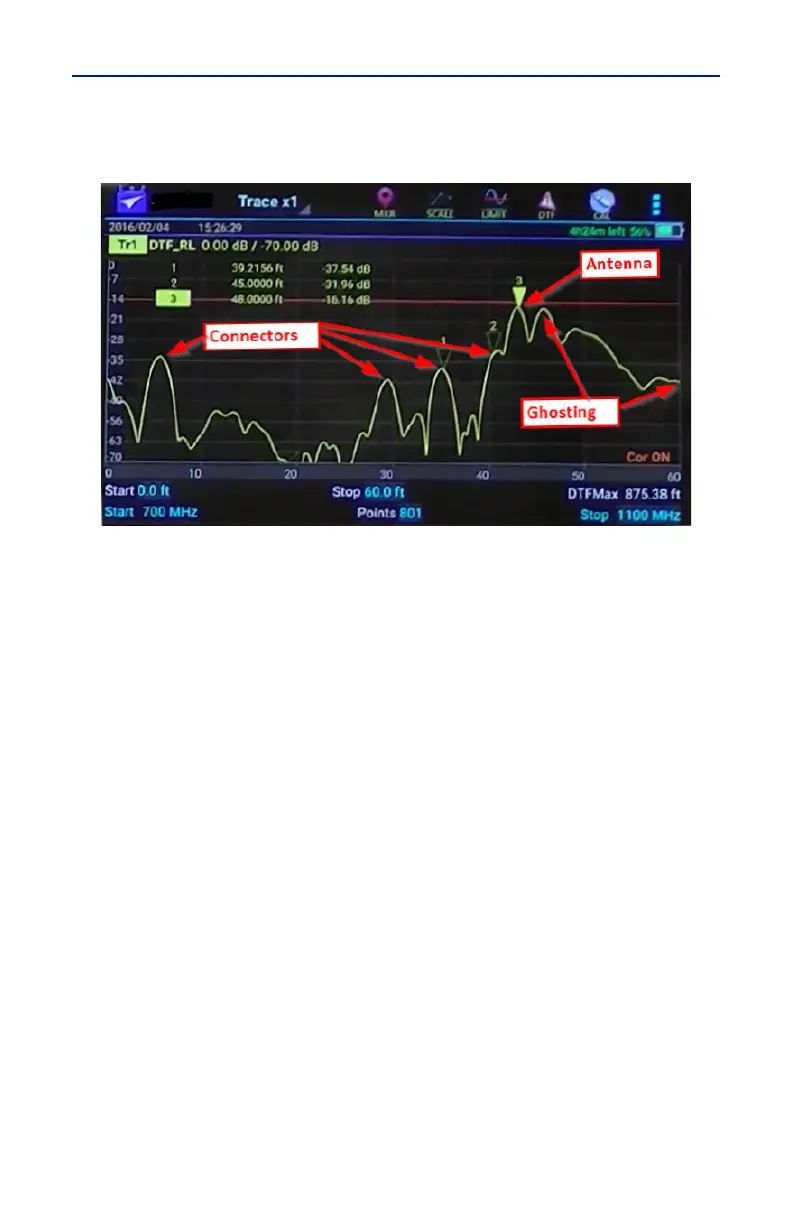

Figure 2 Good Test
C. PUT THE AIRPLANE BACK TO ITS USUAL CONDITION
(1) Disconnect the TDR adapter cable from the EE Rack Bench
Plug.
(2) Remove the 50 ohm terminator from the other end of the
applicable cable if used for troubleshooting.
(3) To install the applicable black box, do this task: E/E Box
Installation.
(4) Connect any cables previously disconnected for
troubleshooting.
