Rev. 1.00
- 12 -
SRP-F310/312

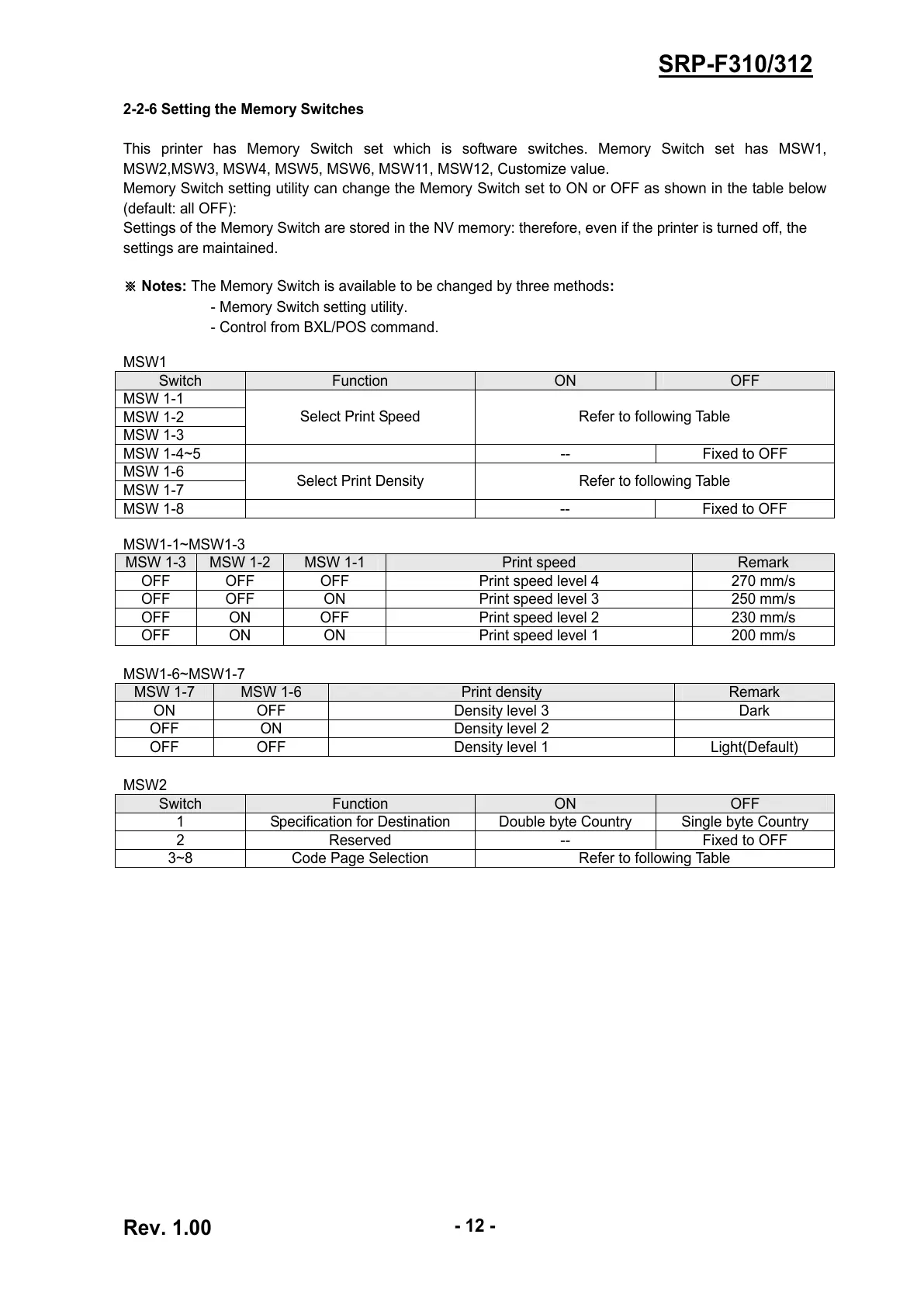

2-2-6 Setting the Memory Switches
This printer has Memory Switch set which is software switches. Memory Switch set has MSW1,
MSW2,MSW3, MSW4, MSW5, MSW6, MSW11, MSW12, Customize value.
Memory Switch setting utility can change the Memory Switch set to ON or OFF as shown in the table below
(default: all OFF):
Settings of the Memory Switch are stored in the NV memory: therefore, even if the printer is turned off, the
settings are maintained.
※ Notes: The Memory Switch is available to be changed by three methods:
- Memory Switch setting utility.
- Control from BXL/POS command.
MSW1
Switch Function ON OFF
MSW 1-1
MSW 1-2
MSW 1-3
Select Print Speed Refer to following Table
MSW 1-4~5 -- Fixed to OFF
MSW 1-6
MSW 1-7
Select Print Density Refer to following Table
MSW 1-8 -- Fixed to OFF
MSW1-1~MSW1-3
MSW 1-3 MSW 1-2 MSW 1-1 Print speed Remark
OFF OFF OFF Print speed level 4 270 mm/s
OFF OFF ON Print speed level 3 250 mm/s
OFF ON OFF Print speed level 2 230 mm/s
OFF ON ON Print speed level 1 200 mm/s
MSW1-6~MSW1-7
MSW 1-7 MSW 1-6 Print density Remark
ON OFF Density level 3 Dark
OFF ON Density level 2
OFF OFF Density level 1 Light(Default)
MSW2
Switch Function ON OFF
1 Specification for Destination Double byte Country Single byte Country
2 Reserved -- Fixed to OFF
3~8 Code Page Selection Refer to following Table
To Next Page
