SRP-F310/312

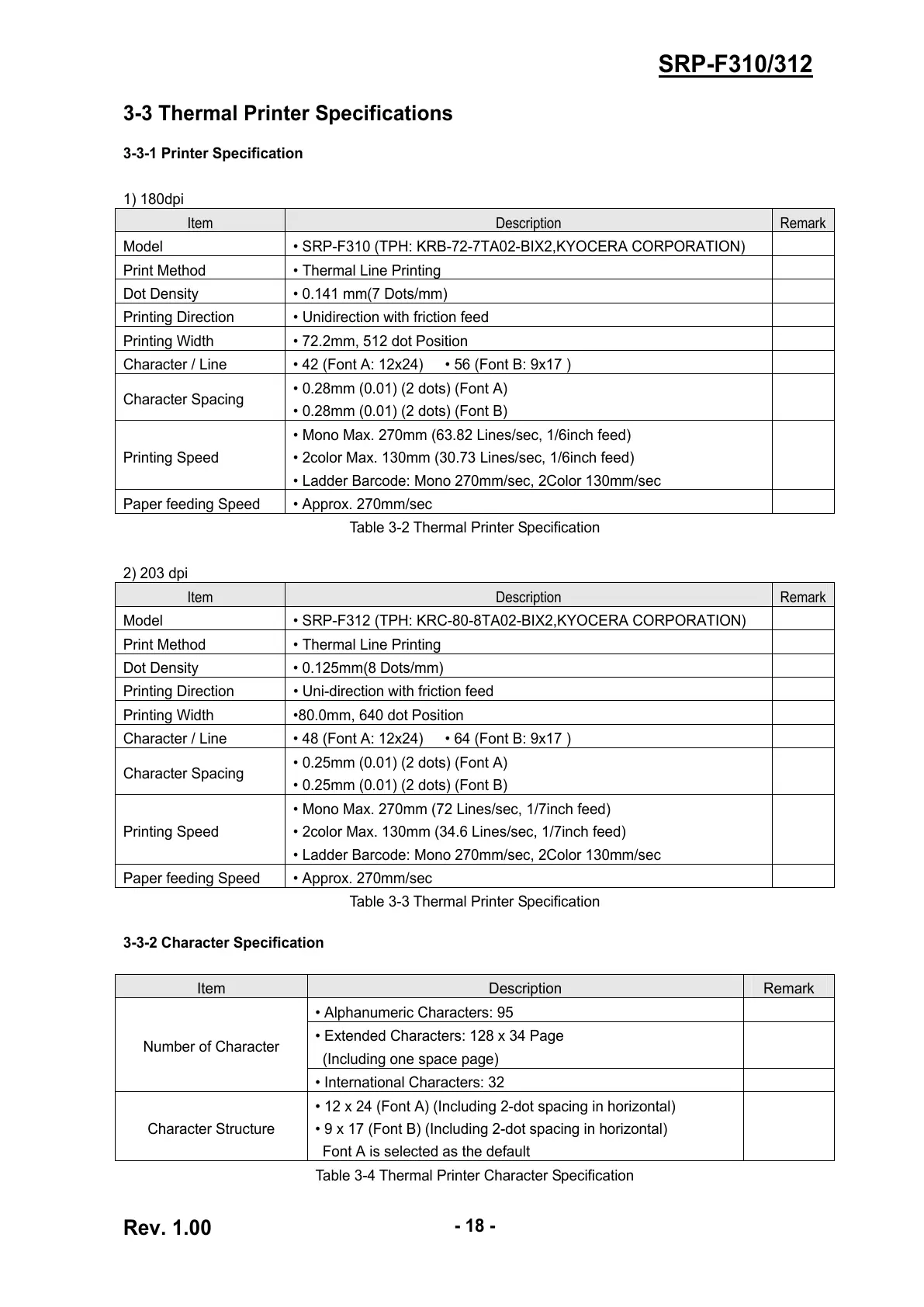

3-3 Thermal Printer Specifications
3-3-1 Printer Specification
1) 180dpi
Item Description Remark
Model • SRP-F310 (TPH: KRB-72-7TA02-BIX2,KYOCERA CORPORATION)
Print Method • Thermal Line Printing
Dot Density • 0.141 mm(7 Dots/mm)
Printing Direction • Unidirection with friction feed
Printing Width • 72.2mm, 512 dot Position
Character / Line • 42 (Font A: 12x24) • 56 (Font B: 9x17 )
Character Spacing
• 0.28mm (0.01) (2 dots) (Font A)
• 0.28mm (0.01) (2 dots) (Font B)
Printing Speed
• Mono Max. 270mm (63.82 Lines/sec, 1/6inch feed)
• 2color Max. 130mm (30.73 Lines/sec, 1/6inch feed)
• Ladder Barcode: Mono 270mm/sec, 2Color 130mm/sec
Paper feeding Speed • Approx. 270mm/sec
Table 3-2 Thermal Printer Specification
2) 203 dpi
Item Description Remark
Model • SRP-F312 (TPH: KRC-80-8TA02-BIX2,KYOCERA CORPORATION)
Print Method • Thermal Line Printing
Dot Density • 0.125mm(8 Dots/mm)
Printing Direction • Uni-direction with friction feed
Printing Width •80.0mm, 640 dot Position
Character / Line • 48 (Font A: 12x24) • 64 (Font B: 9x17 )
Character Spacing
• 0.25mm (0.01) (2 dots) (Font A)
• 0.25mm (0.01) (2 dots) (Font B)
Printing Speed
• Mono Max. 270mm (72 Lines/sec, 1/7inch feed)
• 2color Max. 130mm (34.6 Lines/sec, 1/7inch feed)
• Ladder Barcode: Mono 270mm/sec, 2Color 130mm/sec
Paper feeding Speed • Approx. 270mm/sec
Table 3-3 Thermal Printer Specification
3-3-2 Character Specification
Item Description Remark
• Alphanumeric Characters: 95
• Extended Characters: 128 x 34 Page
(Including one space page)
Number of Character
• International Characters: 32
Character Structure
• 12 x 24 (Font A) (Including 2-dot spacing in horizontal)
• 9 x 17 (Font B) (Including 2-dot spacing in horizontal)
Font A is selected as the default
Table 3-4 Thermal Printer Character Specification
All manuals and user guides at all-guides.com

BIXOLON SRP-F310 Specifications

General

Color	No
Print technology	Direct thermal
Maximum resolution	180 x 180 DPI
Maximum printing width	72 mm
Network ready	Yes
Ethernet LAN	-
Optional connectivity	Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Power requirements	AC 100-240V / DC 24V, 2.5A
Compatible operating systems	Windows, Mac, Linux Kernel 2.4.18+
Number of fonts	3
Built-in barcodes	CODABAR (NW-7), EAN13, EAN8, ITF-14, UPC-A, UPC-E
Operating temperature (T-T)	0 - 45 °C
Maximum roll diameter	105 mm
Supported paper width	80 - 83 mm

Weight and Dimensions

Depth	203 mm
Width	154 mm
Height	148 mm
Weight	2000 g
