BIXOLON SRP-F310 Service Manual

Rev. 1.00
- 58 -
SRP-F310/312

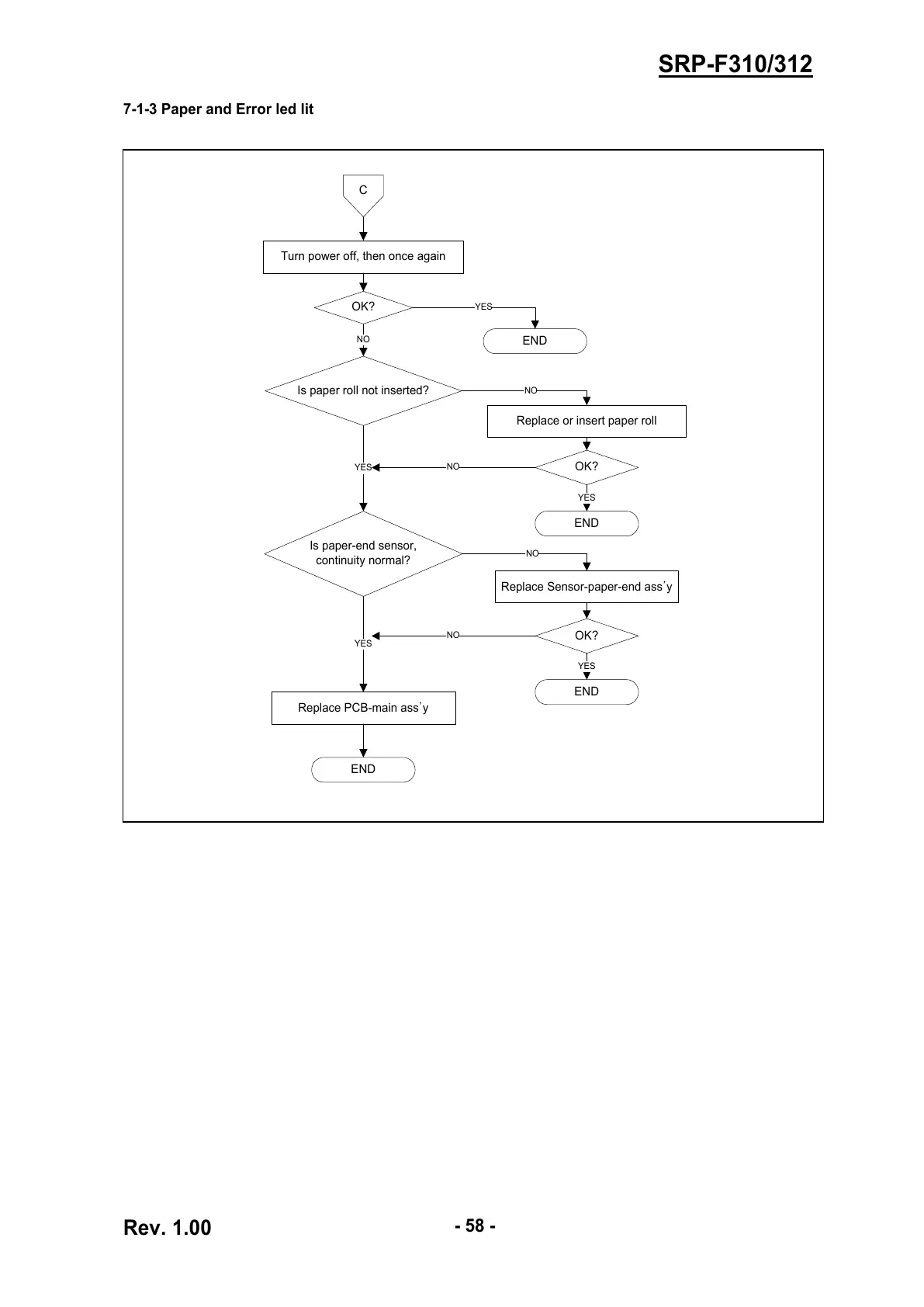

7-1-3 Paper and Error led lit
C
Turn power off, then once again
OK?
END
Is paper roll not inserted?
Replace or insert paper roll
Is paper-end sensor,
continuity normal?
YES
NO
YES
NO
OK?
NO
END
YES
Replace Sensor-paper-end ass’y
NO
OK?
END
YES
YES
NO
Replace PCB-main ass’y
END
