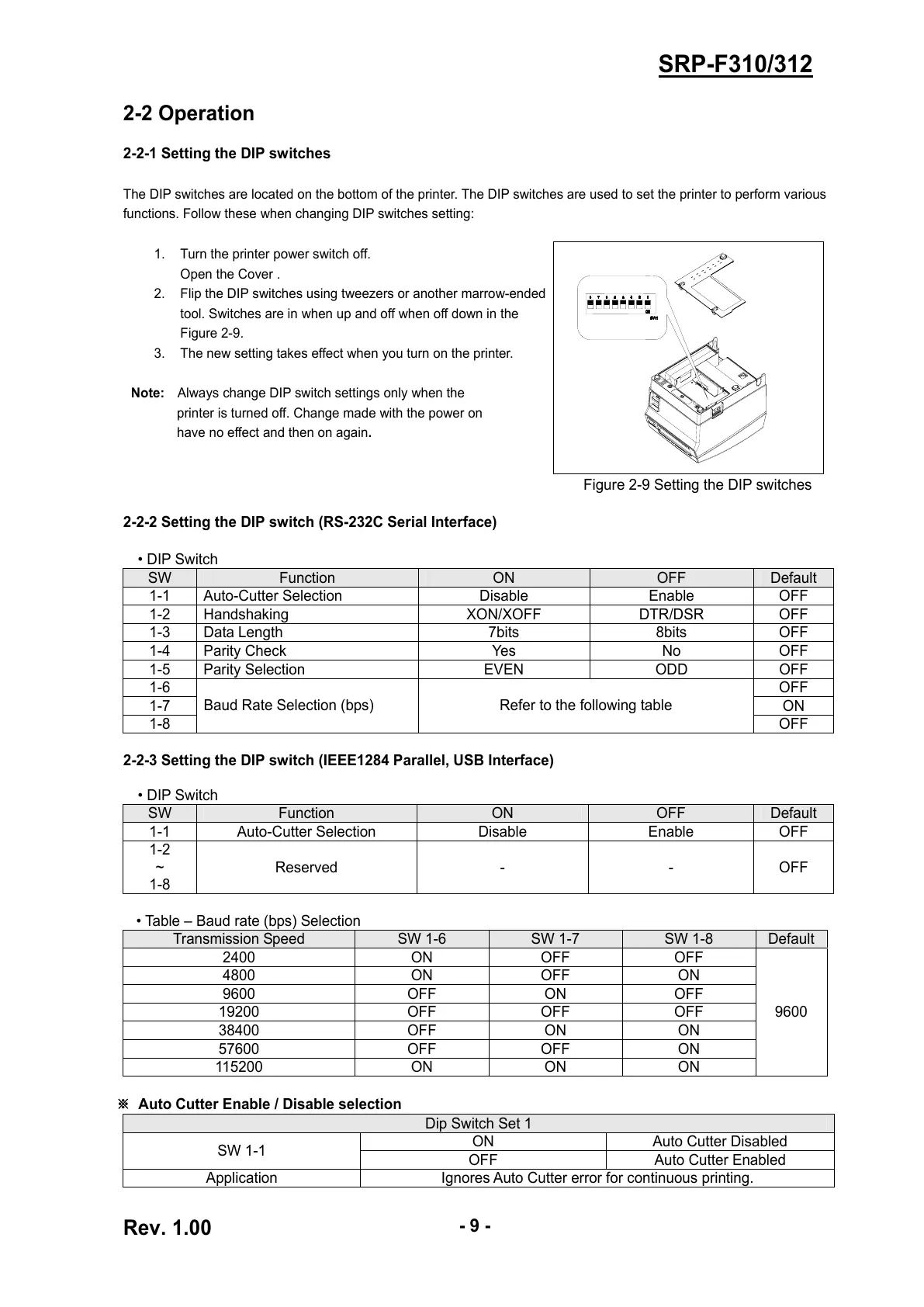

Rev. 1.00
- 9 -
SRP-F310/312
2-2 Operation
2-2-1 Setting the DIP switches
The DIP switches are located on the bottom of the printer. The DIP switches are used to set the printer to perform various
functions. Follow these when changing DIP switches setting:
1. Turn the printer power switch off.
Open the Cover .
2. Flip the DIP switches using tweezers or another marrow-ended
tool. Switches are in when up and off when off down in the
Figure 2-9.
3. The new setting takes effect when you turn on the printer.
Note: Always change DIP switch settings only when the
printer is turned off. Change made with the power on
have no effect and then on again.
Figure 2-9 Setting the DIP switches
2-2-2 Setting the DIP switch (RS-232C Serial Interface)
• DIP Switch
SW Function ON OFF Default
1-1 Auto-Cutter Selection Disable Enable OFF
1-2 Handshaking XON/XOFF DTR/DSR OFF
1-3 Data Length 7bits 8bits OFF
1-4 Parity Check Yes No OFF
1-5 Parity Selection EVEN ODD OFF
1-6 OFF
1-7 ON
1-8
Baud Rate Selection (bps) Refer to the following table
OFF
2-2-3 Setting the DIP switch (IEEE1284 Parallel, USB Interface)
• DIP Switch
SW Function ON OFF Default
1-1 Auto-Cutter Selection Disable Enable OFF
1-2
~
1-8
Reserved - - OFF
• Table – Baud rate (bps) Selection
Transmission Speed SW 1-6 SW 1-7 SW 1-8 Default
2400 ON OFF OFF
4800 ON OFF ON
9600 OFF ON OFF
19200 OFF OFF OFF
38400 OFF ON ON
57600 OFF OFF ON
115200 ON ON ON
9600
※ Auto Cutter Enable / Disable selection
Dip Switch Set 1
ON Auto Cutter Disabled
SW 1-1
OFF Auto Cutter Enabled
Application Ignores Auto Cutter error for continuous printing.
To Next Page
