BIXOLON SRP-F310 Service Manual

Rev. 1.00
- 19 -
SRP-F310/312

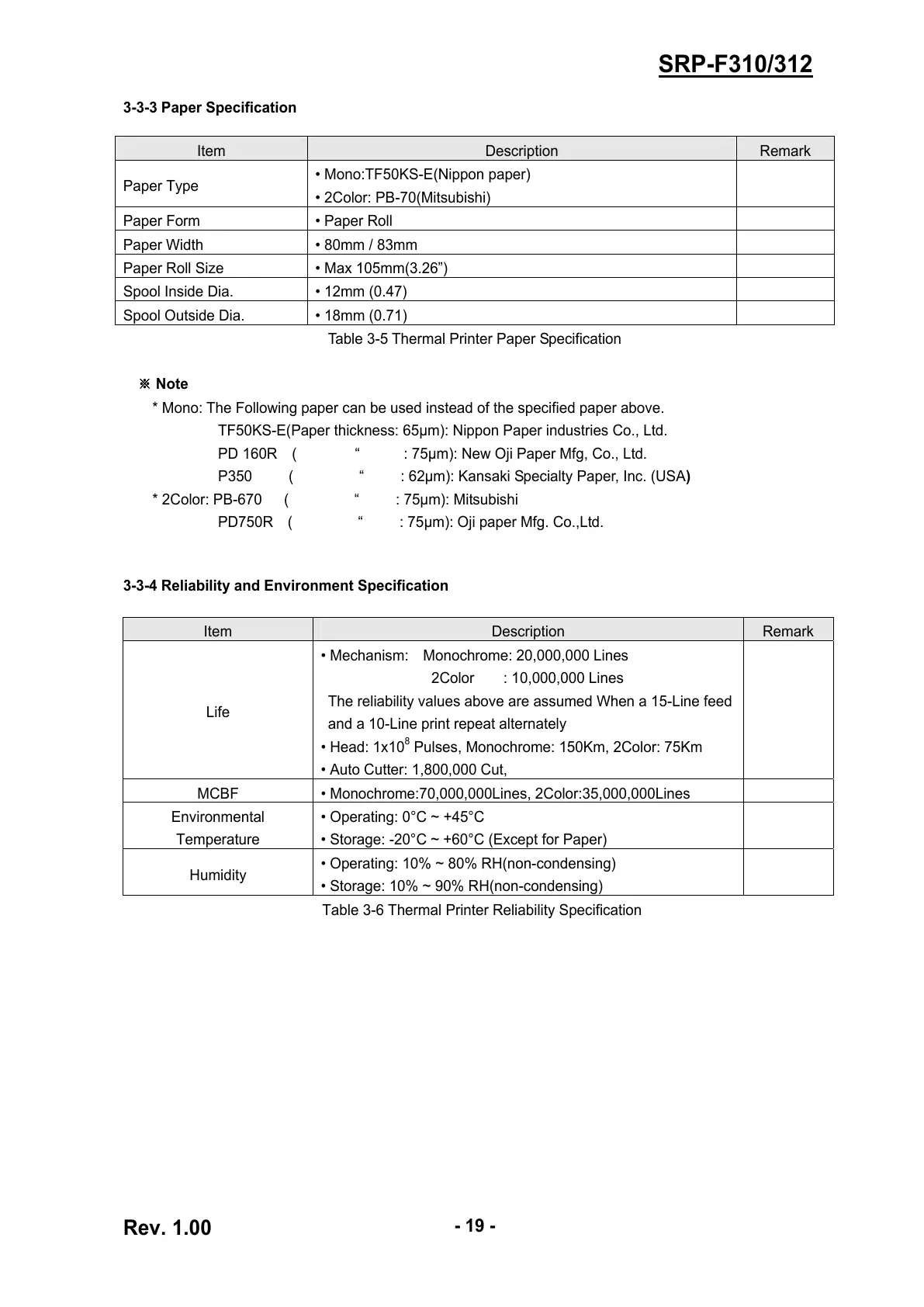

3-3-3 Paper Specification
Item Description Remark
Paper Type
• Mono:TF50KS-E(Nippon paper)
• 2Color: PB-70(Mitsubishi)
Paper Form • Paper Roll
Paper Width • 80mm / 83mm
Paper Roll Size • Max 105mm(3.26”)
Spool Inside Dia. • 12mm (0.47)
Spool Outside Dia. • 18mm (0.71)
Table 3-5 Thermal Printer Paper Specification
※ Note
* Mono: The Following paper can be used instead of the specified paper above.
TF50KS-E(Paper thickness: 65μm): Nippon Paper industries Co., Ltd.
PD 160R ( “ : 75μm): New Oji Paper Mfg, Co., Ltd.
P350 ( “ : 62μm): Kansaki Specialty Paper, Inc. (USA)
* 2Color: PB-670 ( “ : 75μm): Mitsubishi
PD750R ( “ : 75μm): Oji paper Mfg. Co.,Ltd.
3-3-4 Reliability and Environment Specification
Item Description Remark
Life
• Mechanism: Monochrome: 20,000,000 Lines
2Color : 10,000,000 Lines
The reliability values above are assumed When a 15-Line feed
and a 10-Line print repeat alternately
• Head: 1x10
8
Pulses, Monochrome: 150Km, 2Color: 75Km
• Auto Cutter: 1,800,000 Cut,
MCBF • Monochrome:70,000,000Lines, 2Color:35,000,000Lines
Environmental
Temperature
• Operating: 0°C ~ +45°C
• Storage: -20°C ~ +60°C (Except for Paper)
Humidity
• Operating: 10% ~ 80% RH(non-condensing)
• Storage: 10% ~ 90% RH(non-condensing)
Table 3-6 Thermal Printer Reliability Specification
All manuals and user guides at all-guides.com

BIXOLON SRP-F310 Specifications

General

Color	No
Print technology	Direct thermal
Maximum resolution	180 x 180 DPI
Maximum printing width	72 mm
Network ready	Yes
Ethernet LAN	-
Optional connectivity	Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Power requirements	AC 100-240V / DC 24V, 2.5A
Compatible operating systems	Windows, Mac, Linux Kernel 2.4.18+
Number of fonts	3
Built-in barcodes	CODABAR (NW-7), EAN13, EAN8, ITF-14, UPC-A, UPC-E
Operating temperature (T-T)	0 - 45 °C
Maximum roll diameter	105 mm
Supported paper width	80 - 83 mm

Weight and Dimensions

Depth	203 mm
Width	154 mm
Height	148 mm
Weight	2000 g
