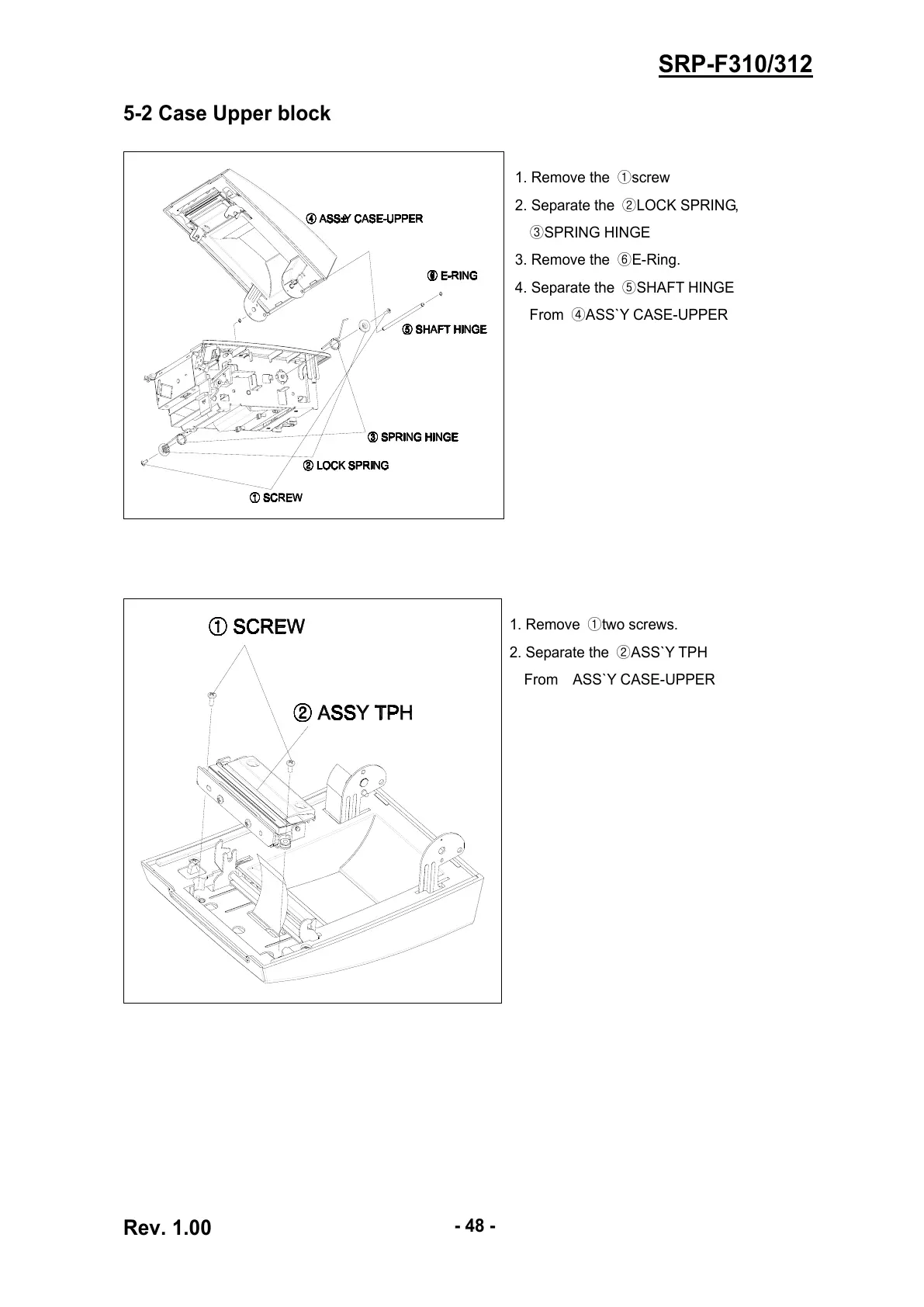

5-2 Case Upper block
1. Remove the ①screw
2. Separate the ②LOCK SPRING,
③SPRING HINGE
3. Remove the ⑥E-Ring.
4. Separate the ⑤SHAFT HINGE
From ④ASS`Y CASE-UPPER
1. Remove ①two screws.
2. Separate the ②ASS`Y TPH
From ASS`Y CASE-UPPER
