SRP-F310/312

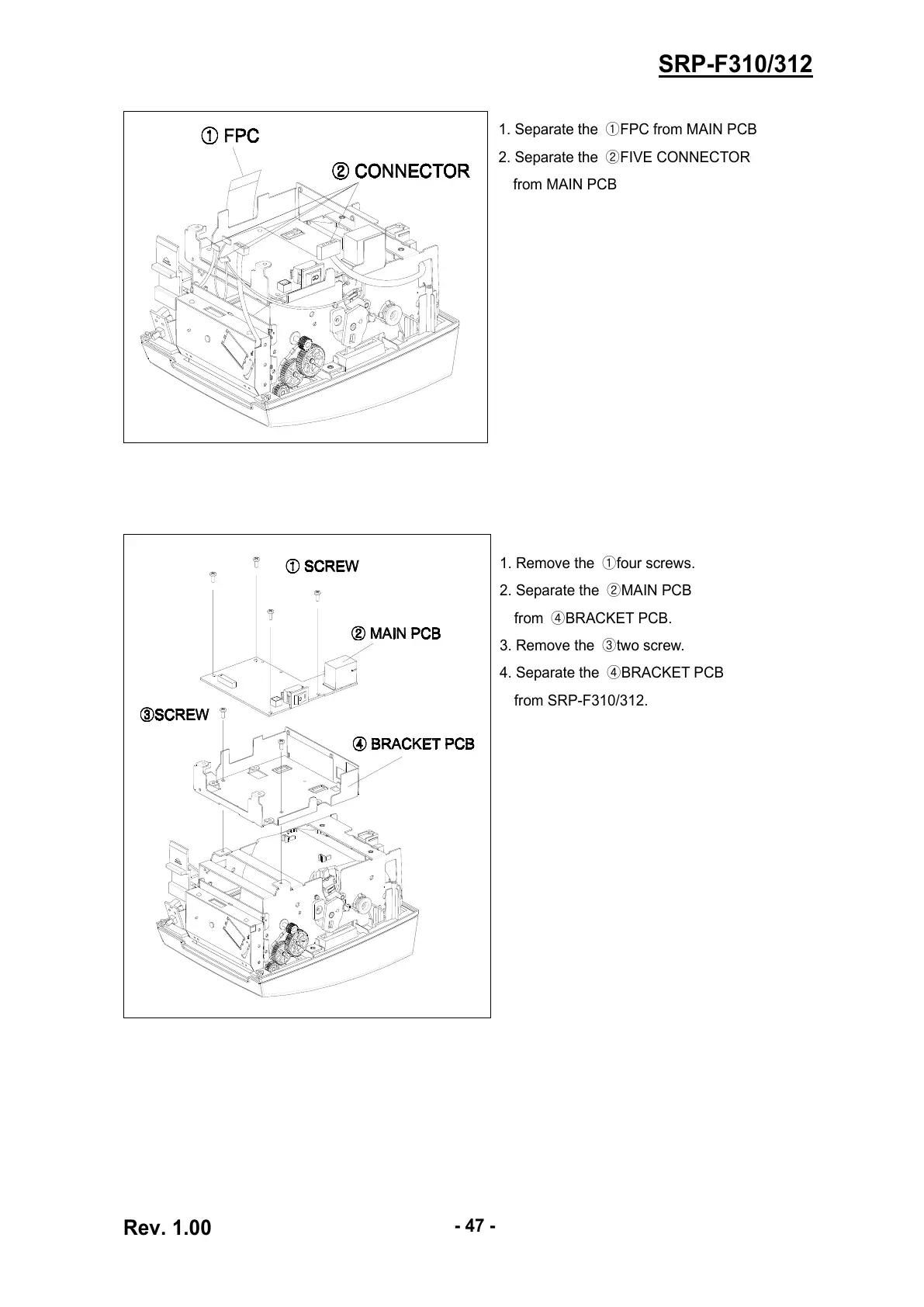

1. Separate the ①FPC from MAIN PCB
2. Separate the ②FIVE CONNECTOR
from MAIN PCB
1. Remove the ①four screws.
2. Separate the ②MAIN PCB
from ④BRACKET PCB.
3. Remove the ③two screw.
4. Separate the ④BRACKET PCB
from SRP-F310/312.
