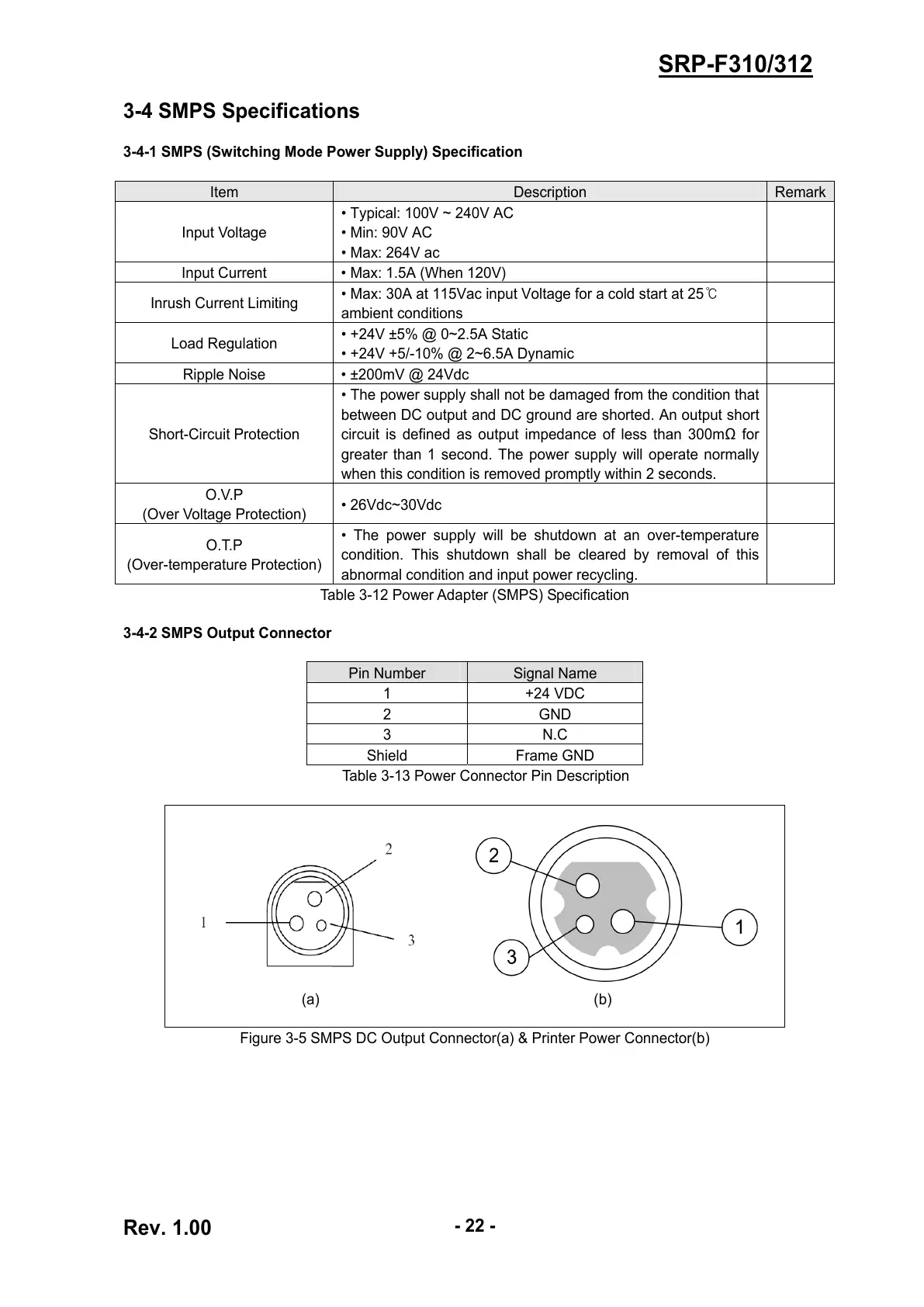

BIXOLON SRP-F310 Service Manual

Rev. 1.00
- 22 -
SRP-F310/312
3-4 SMPS Specifications
3-4-1 SMPS (Switching Mode Power Supply) Specification
Item Description Remark
Input Voltage
• Typical: 100V ~ 240V AC
• Min: 90V AC
• Max: 264V ac
Input Current • Max: 1.5A (When 120V)
Inrush Current Limiting
• Max: 30A at 115Vac input Voltage for a cold start at 25℃
ambient conditions
Load Regulation
• +24V ±5% @ 0~2.5A Static
• +24V +5/-10% @ 2~6.5A Dynamic
Ripple Noise • ±200mV @ 24Vdc
Short-Circuit Protection
• The power supply shall not be damaged from the condition that
between DC output and DC ground are shorted. An output short
circuit is defined as output impedance of less than 300mΩ for
greater than 1 second. The power supply will operate normally
when this condition is removed promptly within 2 seconds.
O.V.P
(Over Voltage Protection)
• 26Vdc~30Vdc
O.T.P
(Over-temperature Protection)
• The power supply will be shutdown at an over-temperature
condition. This shutdown shall be cleared by removal of this
abnormal condition and input power recycling.
Table 3-12 Power Adapter (SMPS) Specification
3-4-2 SMPS Output Connector
Pin Number Signal Name
1 +24 VDC
2 GND
3 N.C
Shield Frame GND
Table 3-13 Power Connector Pin Description
Figure 3-5 SMPS DC Output Connector(a) & Printer Power Connector(b)
(a)
(b)
All manuals and user guides at all-guides.com

BIXOLON SRP-F310 Specifications

General

Color	No
Print technology	Direct thermal
Maximum resolution	180 x 180 DPI
Maximum printing width	72 mm
Network ready	Yes
Ethernet LAN	-
Optional connectivity	Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Power requirements	AC 100-240V / DC 24V, 2.5A
Compatible operating systems	Windows, Mac, Linux Kernel 2.4.18+
Number of fonts	3
Built-in barcodes	CODABAR (NW-7), EAN13, EAN8, ITF-14, UPC-A, UPC-E
Operating temperature (T-T)	0 - 45 °C
Maximum roll diameter	105 mm
Supported paper width	80 - 83 mm

Weight and Dimensions

Depth	203 mm
Width	154 mm
Height	148 mm
Weight	2000 g
