SRP-F310/312

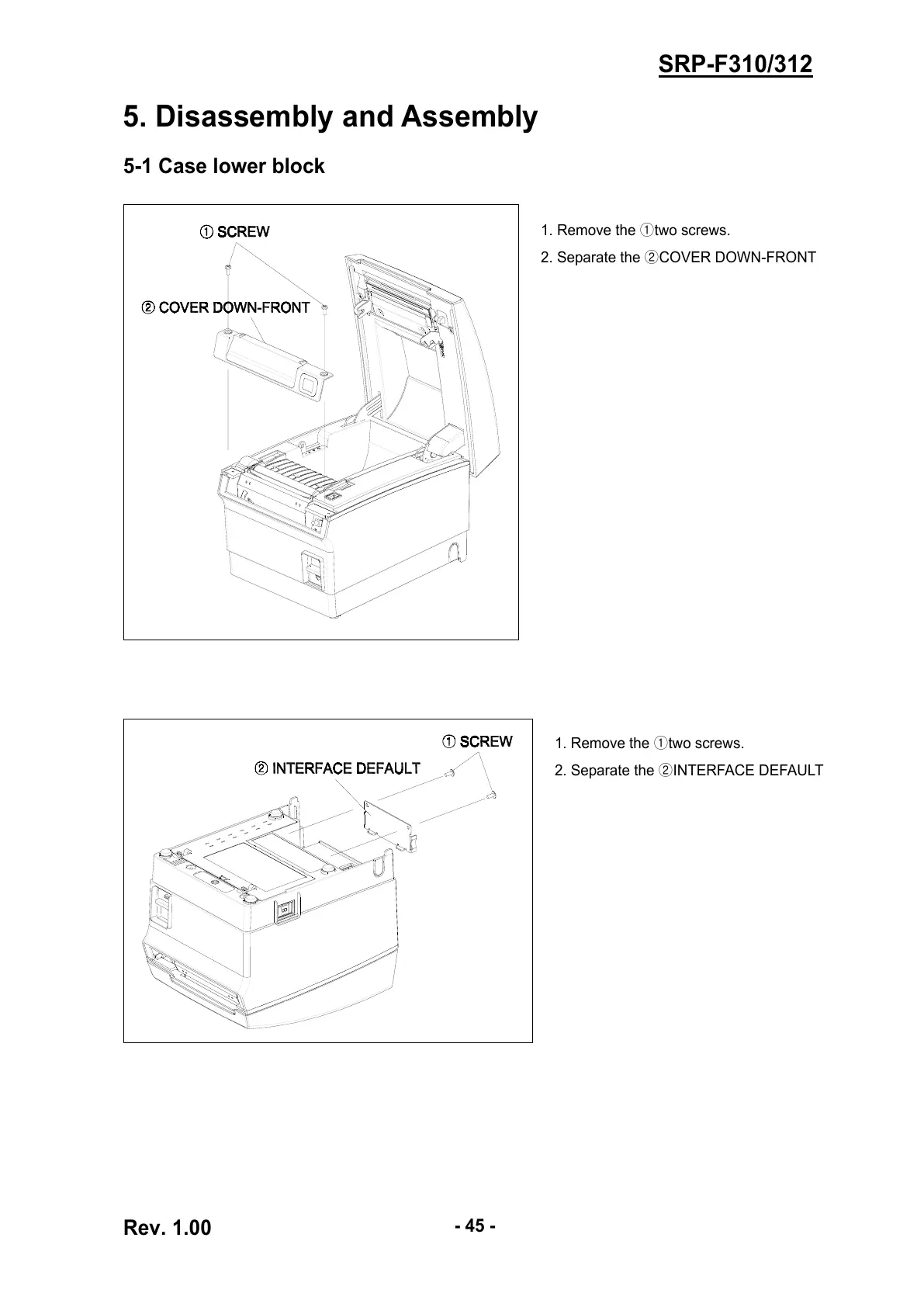

5. Disassembly and Assembly
5-1 Case lower block
1. Remove the ①two screws.
2. Separate the ②COVER DOWN-FRONT
1. Remove the ①two screws.
2. Separate the ②INTERFACE DEFAULT
