BIXOLON SRP-F310 Service Manual

Rev. 1.00
- 64 -
SRP-F310/312

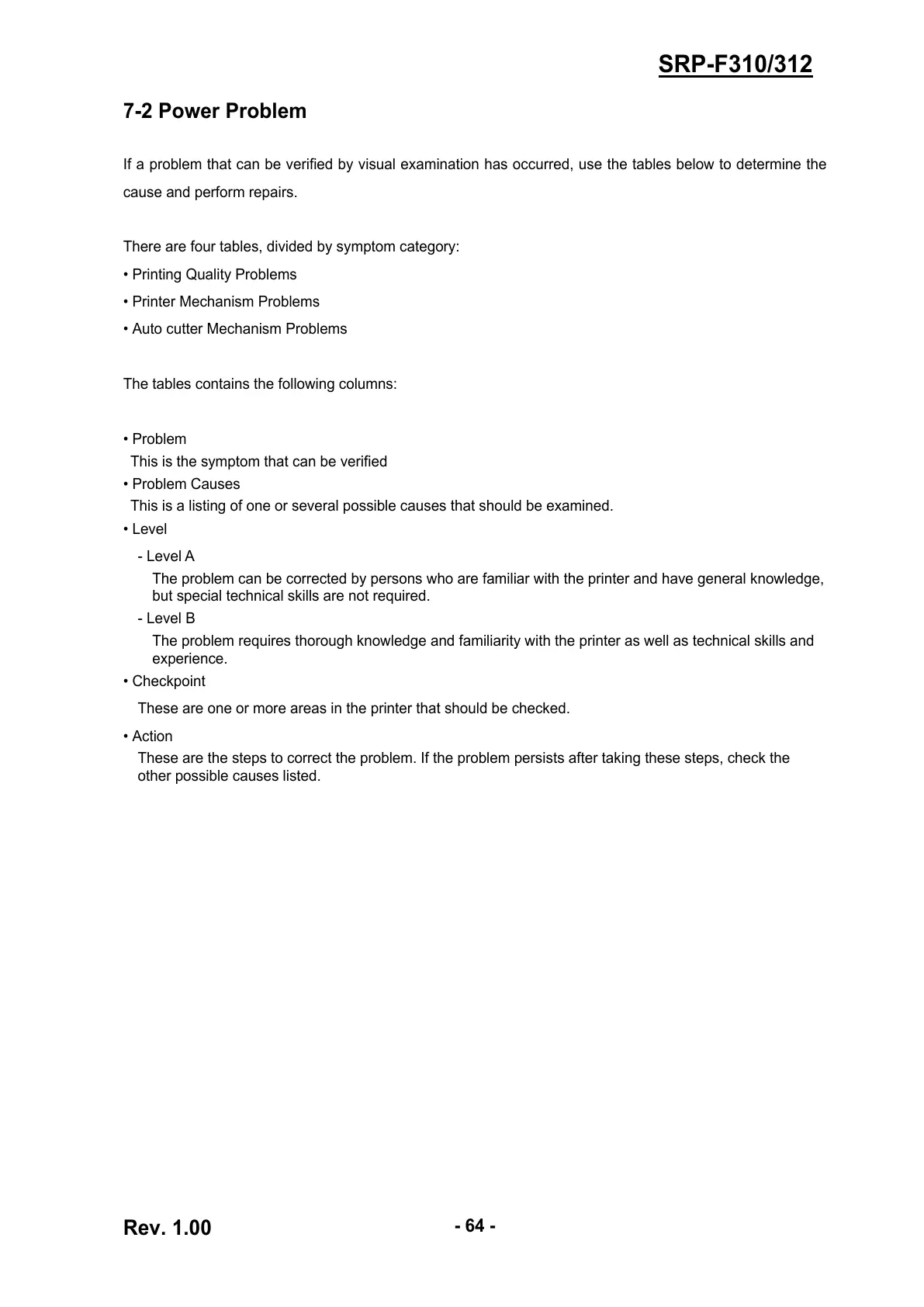

7-2 Power Problem
If a problem that can be verified by visual examination has occurred, use the tables below to determine the
cause and perform repairs.
There are four tables, divided by symptom category:
• Printing Quality Problems
• Printer Mechanism Problems
• Auto cutter Mechanism Problems
The tables contains the following columns:
• Problem
This is the symptom that can be verified
• Problem Causes
This is a listing of one or several possible causes that should be examined.
• Level
- Level A
The problem can be corrected by persons who are familiar with the printer and have general knowledge,
but special technical skills are not required.
- Level B
The problem requires thorough knowledge and familiarity with the printer as well as technical skills and
experience.
• Checkpoint
These are one or more areas in the printer that should be checked.
• Action
These are the steps to correct the problem. If the problem persists after taking these steps, check the
other possible causes listed.
All manuals and user guides at all-guides.com

BIXOLON SRP-F310 Specifications

General

Color	No
Print technology	Direct thermal
Maximum resolution	180 x 180 DPI
Maximum printing width	72 mm
Network ready	Yes
Ethernet LAN	-
Optional connectivity	Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Power requirements	AC 100-240V / DC 24V, 2.5A
Compatible operating systems	Windows, Mac, Linux Kernel 2.4.18+
Number of fonts	3
Built-in barcodes	CODABAR (NW-7), EAN13, EAN8, ITF-14, UPC-A, UPC-E
Operating temperature (T-T)	0 - 45 °C
Maximum roll diameter	105 mm
Supported paper width	80 - 83 mm

Weight and Dimensions

Depth	203 mm
Width	154 mm
Height	148 mm
Weight	2000 g
