BIXOLON SRP-F310 Service Manual

Rev. 1.00
- 55 -
SRP-F310/312

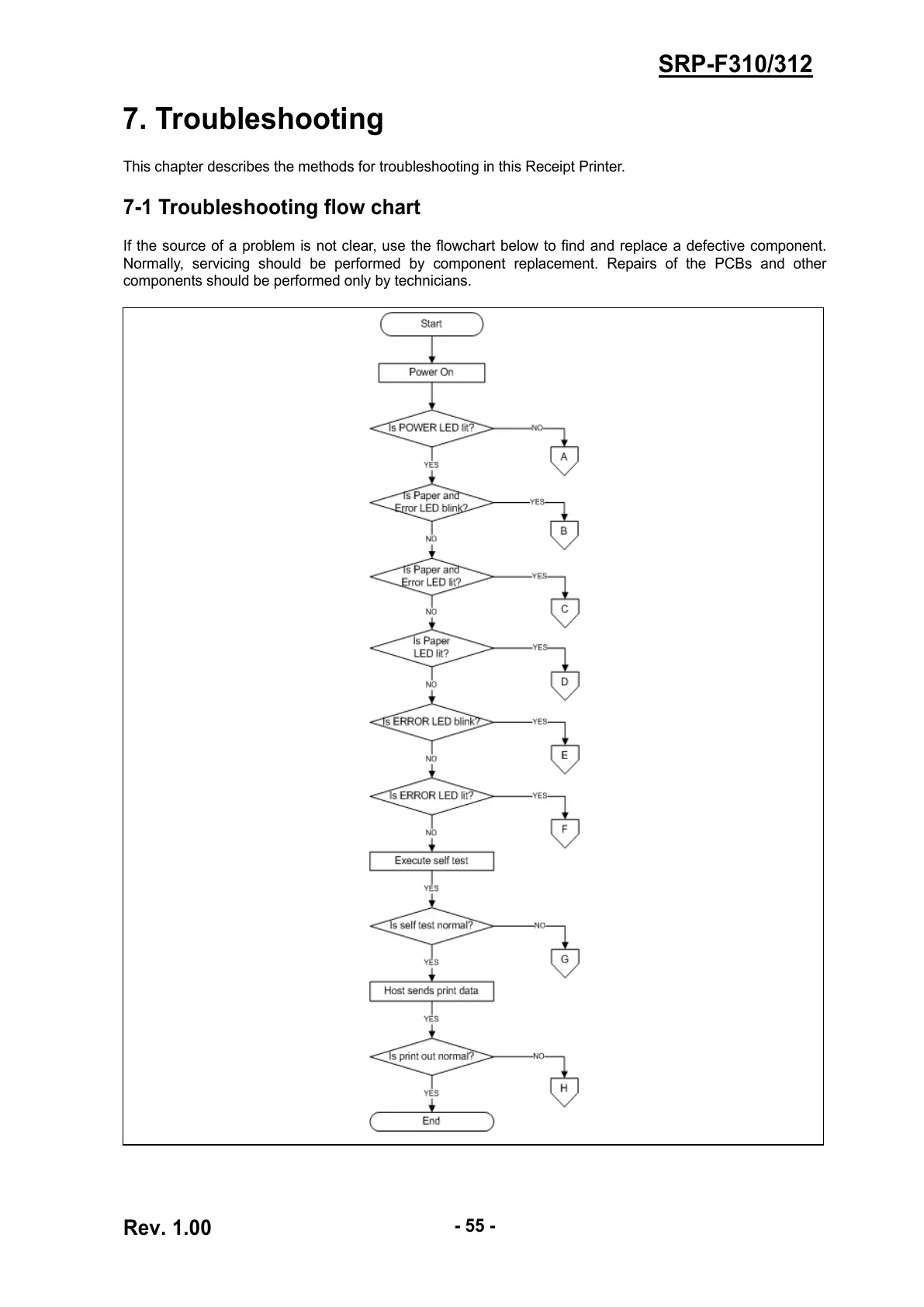

7. Troubleshooting
This chapter describes the methods for troubleshooting in this Receipt Printer.
7-1 Troubleshooting flow chart
If the source of a problem is not clear, use the flowchart below to find and replace a defective component.
Normally, servicing should be performed by component replacement. Repairs of the PCBs and other
components should be performed only by technicians.
All manuals and user guides at all-guides.com

BIXOLON SRP-F310 Specifications

General

Color	No
Print technology	Direct thermal
Maximum resolution	180 x 180 DPI
Maximum printing width	72 mm
Network ready	Yes
Ethernet LAN	-
Optional connectivity	Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Power requirements	AC 100-240V / DC 24V, 2.5A
Compatible operating systems	Windows, Mac, Linux Kernel 2.4.18+
Number of fonts	3
Built-in barcodes	CODABAR (NW-7), EAN13, EAN8, ITF-14, UPC-A, UPC-E
Operating temperature (T-T)	0 - 45 °C
Maximum roll diameter	105 mm
Supported paper width	80 - 83 mm

Weight and Dimensions

Depth	203 mm
Width	154 mm
Height	148 mm
Weight	2000 g
