BIXOLON SRP-F310 Service Manual

Rev. 1.00
- 40 -
SRP-F310/312
6) FPGA core Voltage: +1.5VDC
Step down voltage the input +2.5VDC to +1.5VDC by a regulation.U16(BH15PB1WHFV-TR)
7) CPU core Voltage: +1.2VDC
Step down voltage the input +24VDC to +1.2VDC by a switching regulation.U13(A4490SES-T)

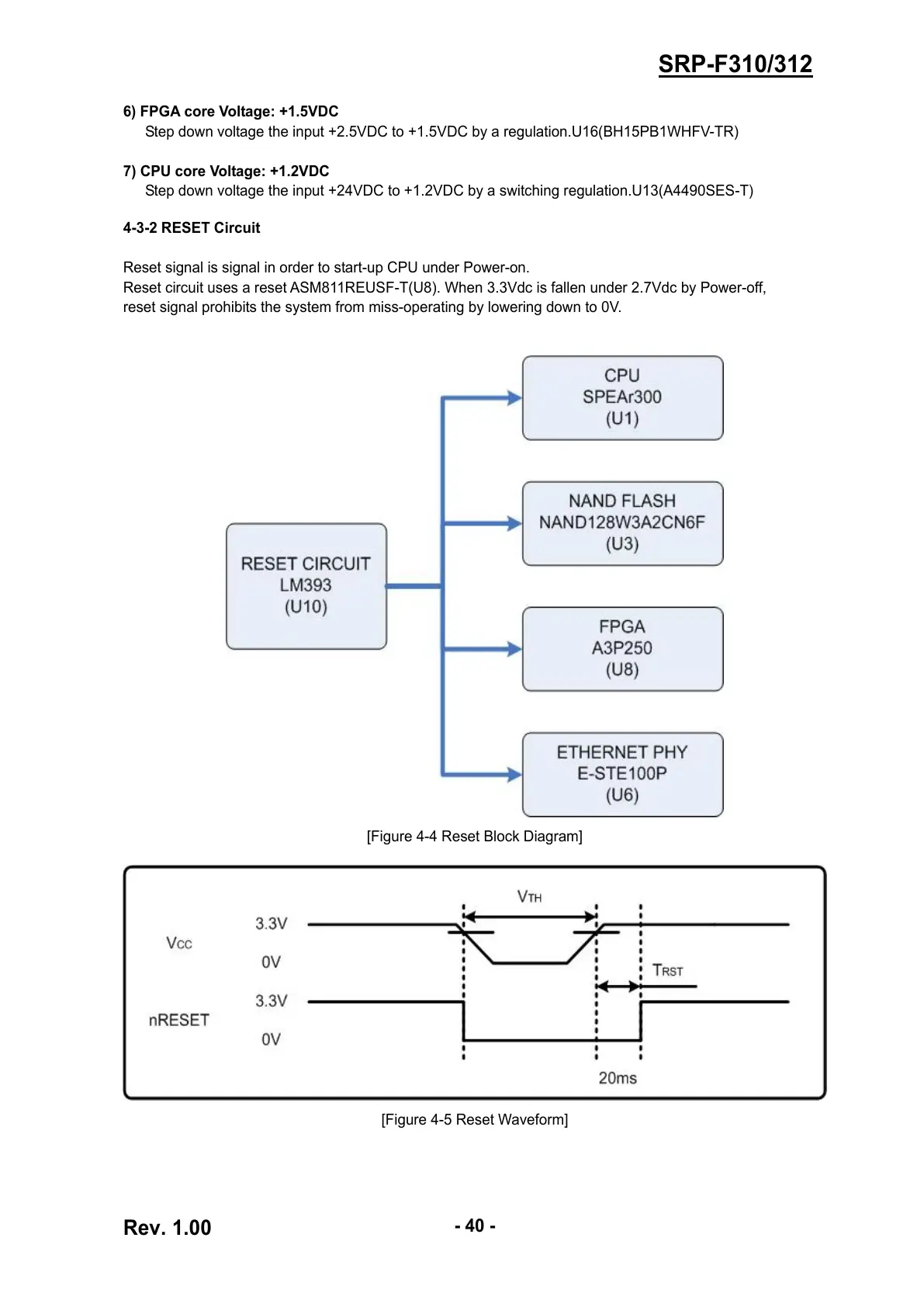

4-3-2 RESET Circuit
Reset signal is signal in order to start-up CPU under Power-on.
Reset circuit uses a reset ASM811REUSF-T(U8). When 3.3Vdc is fallen under 2.7Vdc by Power-off,
reset signal prohibits the system from miss-operating by lowering down to 0V.
[Figure 4-4 Reset Block Diagram]
[Figure 4-5 Reset Waveform]
All manuals and user guides at all-guides.com

BIXOLON SRP-F310 Specifications

General

Color	No
Print technology	Direct thermal
Maximum resolution	180 x 180 DPI
Maximum printing width	72 mm
Network ready	Yes
Ethernet LAN	-
Optional connectivity	Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Power requirements	AC 100-240V / DC 24V, 2.5A
Compatible operating systems	Windows, Mac, Linux Kernel 2.4.18+
Number of fonts	3
Built-in barcodes	CODABAR (NW-7), EAN13, EAN8, ITF-14, UPC-A, UPC-E
Operating temperature (T-T)	0 - 45 °C
Maximum roll diameter	105 mm
Supported paper width	80 - 83 mm

Weight and Dimensions

Depth	203 mm
Width	154 mm
Height	148 mm
Weight	2000 g
