BIXOLON SRP-F310 Service Manual

Rev. 1.00
- 42 -
SRP-F310/312

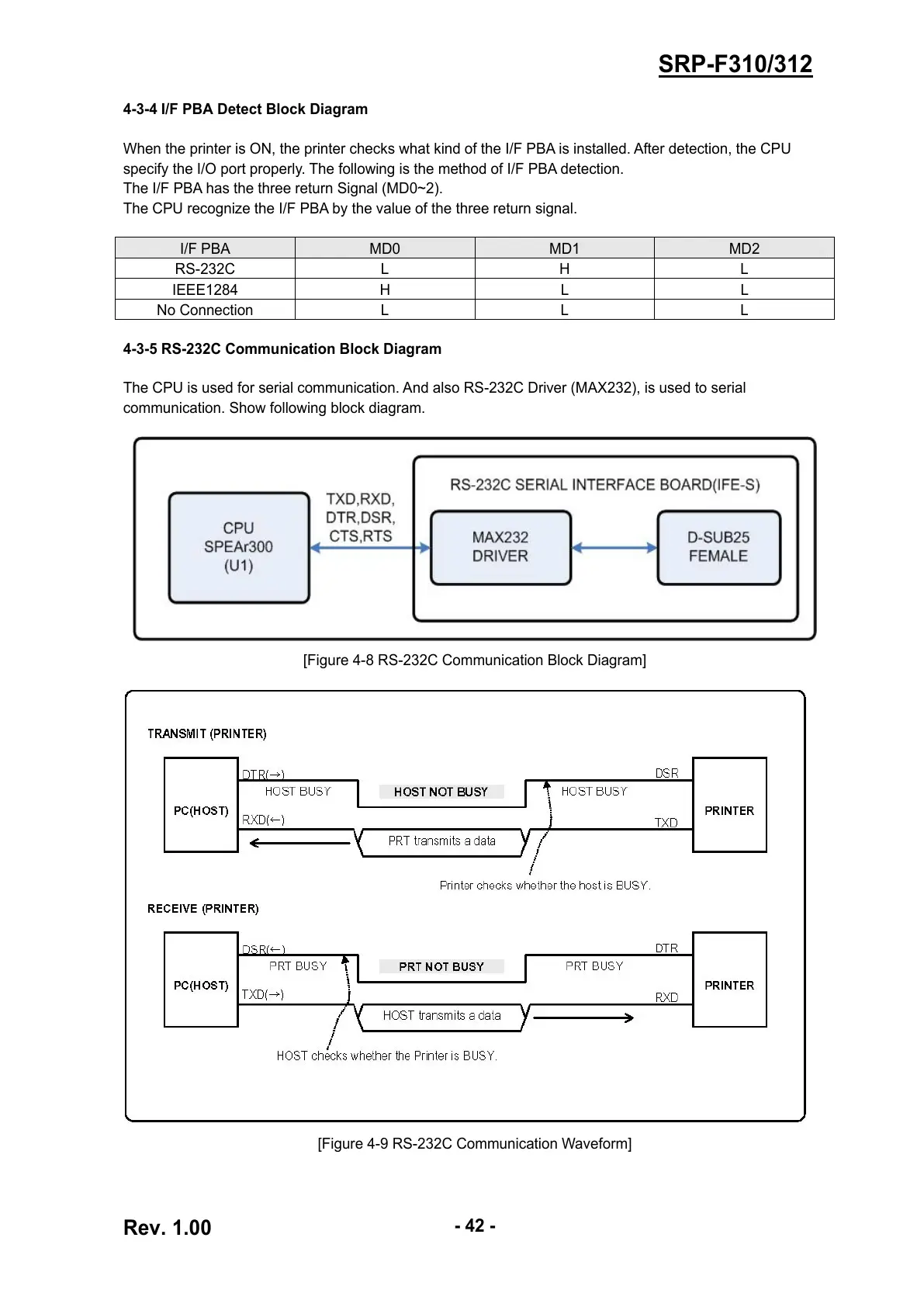

4-3-4 I/F PBA Detect Block Diagram
When the printer is ON, the printer checks what kind of the I/F PBA is installed. After detection, the CPU
specify the I/O port properly. The following is the method of I/F PBA detection.
The I/F PBA has the three return Signal (MD0~2).
The CPU recognize the I/F PBA by the value of the three return signal.
I/F PBA MD0 MD1 MD2
RS-232C L H L
IEEE1284 H L L
No Connection L L L
4-3-5 RS-232C Communication Block Diagram
The CPU is used for serial communication. And also RS-232C Driver (MAX232), is used to serial
communication. Show following block diagram.
[Figure 4-8 RS-232C Communication Block Diagram]
[Figure 4-9 RS-232C Communication Waveform]
All manuals and user guides at all-guides.com

BIXOLON SRP-F310 Specifications

General

Color	No
Print technology	Direct thermal
Maximum resolution	180 x 180 DPI
Maximum printing width	72 mm
Network ready	Yes
Ethernet LAN	-
Optional connectivity	Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Power requirements	AC 100-240V / DC 24V, 2.5A
Compatible operating systems	Windows, Mac, Linux Kernel 2.4.18+
Number of fonts	3
Built-in barcodes	CODABAR (NW-7), EAN13, EAN8, ITF-14, UPC-A, UPC-E
Operating temperature (T-T)	0 - 45 °C
Maximum roll diameter	105 mm
Supported paper width	80 - 83 mm

Weight and Dimensions

Depth	203 mm
Width	154 mm
Height	148 mm
Weight	2000 g
